Cylindrical Mirrors

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

MSE supplies offers customized Cylindrical Mirrors with different materials, dimension, surface qualify, etc.

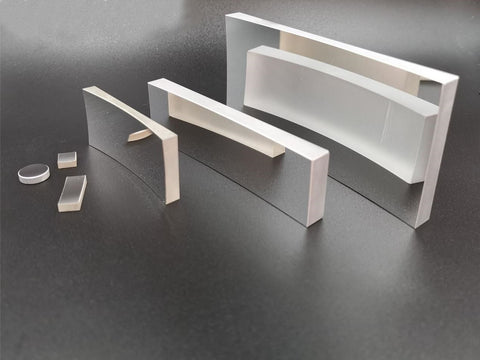

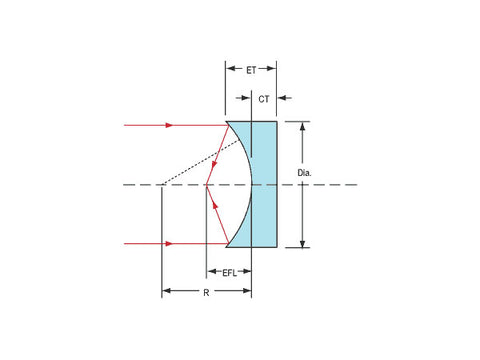

The cylindrical mirror has a flat back and a metal-coated cylindrical outer surface. Unlike spherical mirrors, which will focus collimate light into a spot, cylindrical mirrors can reduce the light in one dimension. Their advantage over cylindrical lenses is that they do not exhibit dispersive effects, thus do not introduce chromatic aberration. They are widely used in laser application to generate laser lines.

MSE Supplies can offer a variant of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.

Technical Data:

Parameters Value
Material
  • Optical Glass
  • Fused Silica
Size (mm) 2-500
Size Tolerance (mm) +0/-0.01~+0/-0.1
Thickness Tolerance (mm) ±0.01~±0.1
Focal Length Tolerance (%) ±1
Irregularity (P-V) @ 632.8nm λ/10~λ/2
Surface Quality 10/5~60/40
Centration <30”~3'
Clear Aperture (%) >90
Bevel Protective bevel as needed

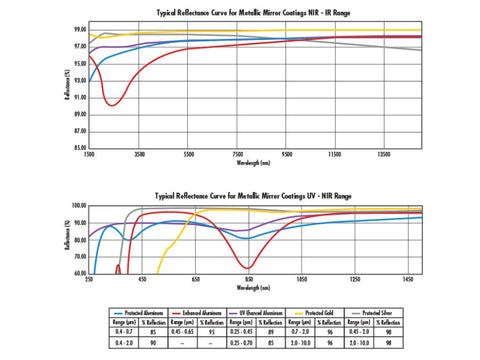

Coating Aluminum, Silver, Gold, Dielectric coating
