AMEL General Purposes Cell, Model 497
SKU: AMEL-497
AMEL General Purposes Cell, Model 497
MSE Supplies is the exclusive distributor of AMEL electrochemistry instruments in the U.S., offering direct access to their cutting-edge solutions.
Overview

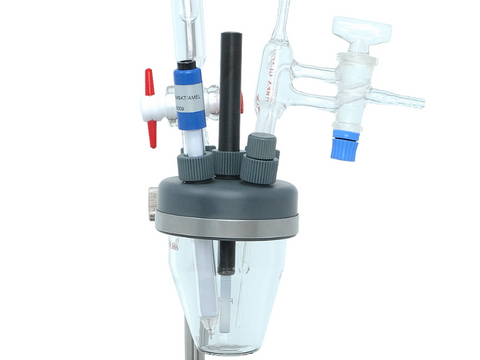

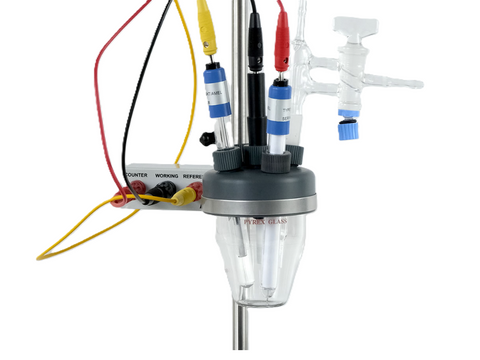

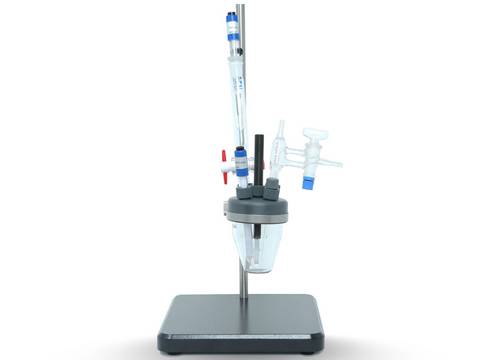

The AMEL Model 497 is a versatile general-purpose electrochemical cell, featuring a polypropylene head with a screw-on Pyrex cup. It can accommodate up to five 12 mm diameter components, including reference, working, and counter electrodes, as well as gas bubblers and a Luggin capillary. The standard configuration includes a simple 70 mL Pyrex cup; however, alternative options such as a Pyrex cup with a thermostatic jacket, a Pyrex cell with a mercury contact bottom, and a PTFE cell are also available. Please refer to the quoted images below for detailed dimensions. The cell typically comes as a complete kit, including a stainless steel support and a plastic stand.
Spare Parts and Optional Accessories
Each cell comes in a set with basic accessories: 70mL Pyrex cup (499/GC), PVC cover (497/MH), gas bubbler (497/GB), Pyrex cup gasket (494/MHG), polypropylene cap for electrodes housings (494/MHS), steel cell support (494/CH), Luggin capillary (497/LU) and complete support stand (591/BASE & 591/COBO).
Suggested electrodes as working (WE), reference (RE), counter (CE) , pH and conductivity are 12mm body electrodes without conical adapter. Gastight sealing is guaranteed by five individual sealing gaskets embedded in the cell cover.
The following accessories are suggested for common operations of the cell.
AMEL also provides customized electrodes tailored to specific experimental needs. Please contact us for more information.
We cannot sell AMEL Products to customers outside US and Canada.
