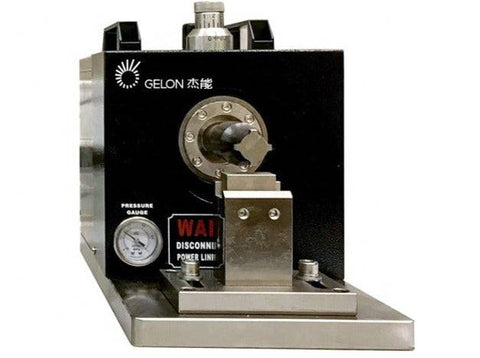

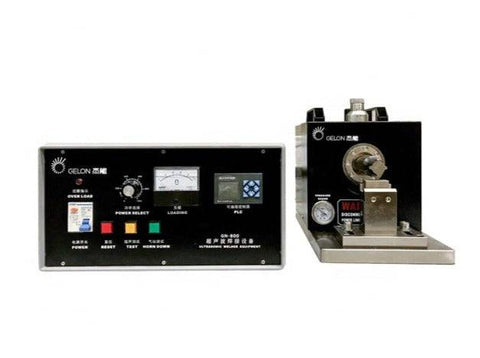

Benchtop Ultrasonic Metal Welder for Battery Tab Welding
Specifications:
MSE Supplies offers a benchtop ultrasonic metal welder with CE certification for battery tab welding. It is widely used for welding stacked electrode sheets (Cu & Al) and (Al & Ni) tabs onto current collectors for battery pouch cell research.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
| Voltage | 110V or 220V |
| Power | 800~8000W (Depends on foil or tab layers) |
| Ultrasonic Frequency | 20~40kHz |
| Air Pressure | 0.1~0.6Mpa |
| Welding Area | 5x5mm (can be customized such as 2x3mm, 3x3mm, 4x4mm etc.) |
| Warranty | One year limited warranty with lifetime product support |
If you name MSE Supplies in your published journal paper or conference abstract, we can offer an one-time 5% discount toward your next purchase.
