MSE PRO™ Lab Polymer Battery Pouch Forming Machine - MSE Supplies LLC

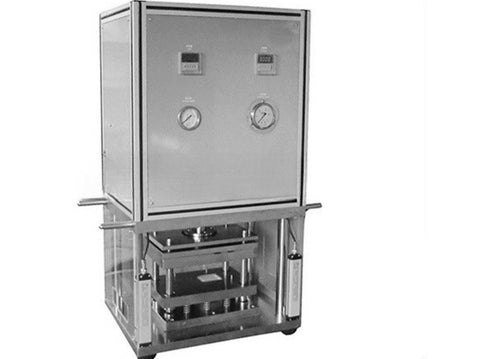

MSE PRO Lab Battery Pouch Forming Machine

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

MSE Supplies offers high-quality battery pouch forming machine. It is used for lithium polymer battery/pouch cell cup forming in the production line of making pouch cell batteries. This aluminum laminated film pouch forming machine is designed with simple spring mold with a small size, which is suitable for research in laboratory settings.

The size of the suitable pouch cell can be customized upon request.

MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.

SPECIFICATIONS

Product number (SKU#) BR0294
Source voltage AC 110V, 50/60Hz
Power 100W
Al film thickness

0.1-0.2mm

MSE Supplies offers 113um thick aluminum laminated film

Suitable Al film size 160*120mm(L*W), can be customized
Punching thickness Max. 6mm
Punching pressure  Max. 3T
Dimension(L*W*H)  460*320*925mm
Weight About 130kg
