Metkon Automatic High-Speed Precision Cutting Machine MICRACUT 152
To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.
MSE Supplies offers an Automatic High-Speed Precision Cutting Machine MICRACUT 152 from Metkon Instrument Inc. MICRACUT 152 precision cutters are used for precise and deformation-free cutting of “Metals, Ceramics, Electronic, Components, Crystals, Composites, Biomaterials, Sintered Carbides, Minerals, etc.” MICRACUT 152 has its place in any metallurgical, geological, electronics, research, biomedical or industrial laboratory.
Country of Origin: Made in Turkey
Manufacturer: Metkon Instruments Inc.
Main Features:
- Modern touch-pad controls with digital display
- Ergonomic turn knob for fast and easy setting of parameters
- 100 W powerful DC cutting motor
- Variable speed 50-1500 rpm
- Digital micrometer cross feed for specimen positioning
- Counterbalanced sliding weight system
- Removable cooling unit
- Automatic cut-off switch

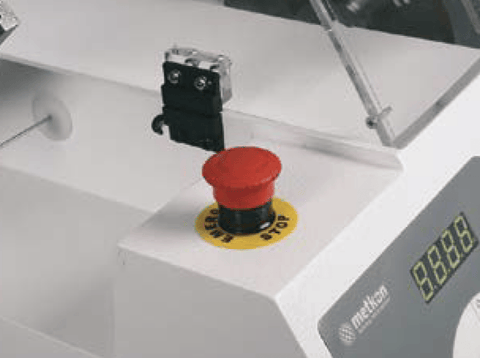

- Transparent protection hood with magnetic safety switch
- For cutting discs of up to 175 mm diameter
- Ready for operation
- Gravity feed system
- Inbuilt recirculation coolant tank
-
Includes a standard set of cutting consumables composed of:
*1 pc. Diamond cutting Disc 150 mm dia.
*1 lt of METCOOL II cooling fluid.
Technical Specifications
| MODEL NO | MICRACUT 152 |
| Disc Diameter, (mm) | Ø175 |
| Cutting Capacity, (mm) | Ø50 |
| Cutting Motor Power, (W) | 100 |
| Disc Speed, (RPM) | 50-1500 |
| Cutting Method | Chop |
| Parallel Cutting in X-Axis | Yes |
| X-Axis Positioning, (mm) | 25 |
| Cooling Unit, (mL) | 850 (integrated) |
| Dimensions, WxDxH, (cm) | 40 x 41 x 36 |
| Weight, (kg) | 28 |
| Power Supply | 230 V, 50/60 Hz. 1 ph. |
Accessories:

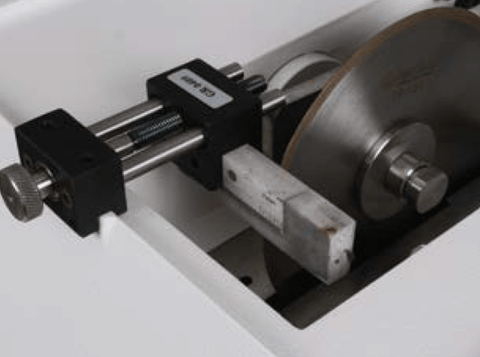

- Specimen Vises
- Spare Part kit
- Optional Flange Sets
- Other Accessories
- Power Supply Transformer kit for 115 V, 50/60 Hz. 1 ph.
Consumables:
- Abrasive Cut-off Wheels for Precision Cutting (Pack of 10)
- Diamond Cutting Discs (1 pc) for Precision Cutting
- CBN Cutting Discs (1 pc) for Precision Cutting
- Cutting Fluid
For accessories and consumables, please contact us so we can help you choose appropriate products for your needs.
About Metkon: Since 1993, METKON as a young and dynamic company, had delivered more than 20,000 instruments globally. Metkon provides innovative Sample Preparation and Testing Instruments and Consumables for Materials and Microstructure Analysis. It offers expertise and know-how to our customers worldwide to enable them to reach the "True and Excellent Sample".
MSE Supplies is an authorized distributor for Metkon Instrument Inc.
