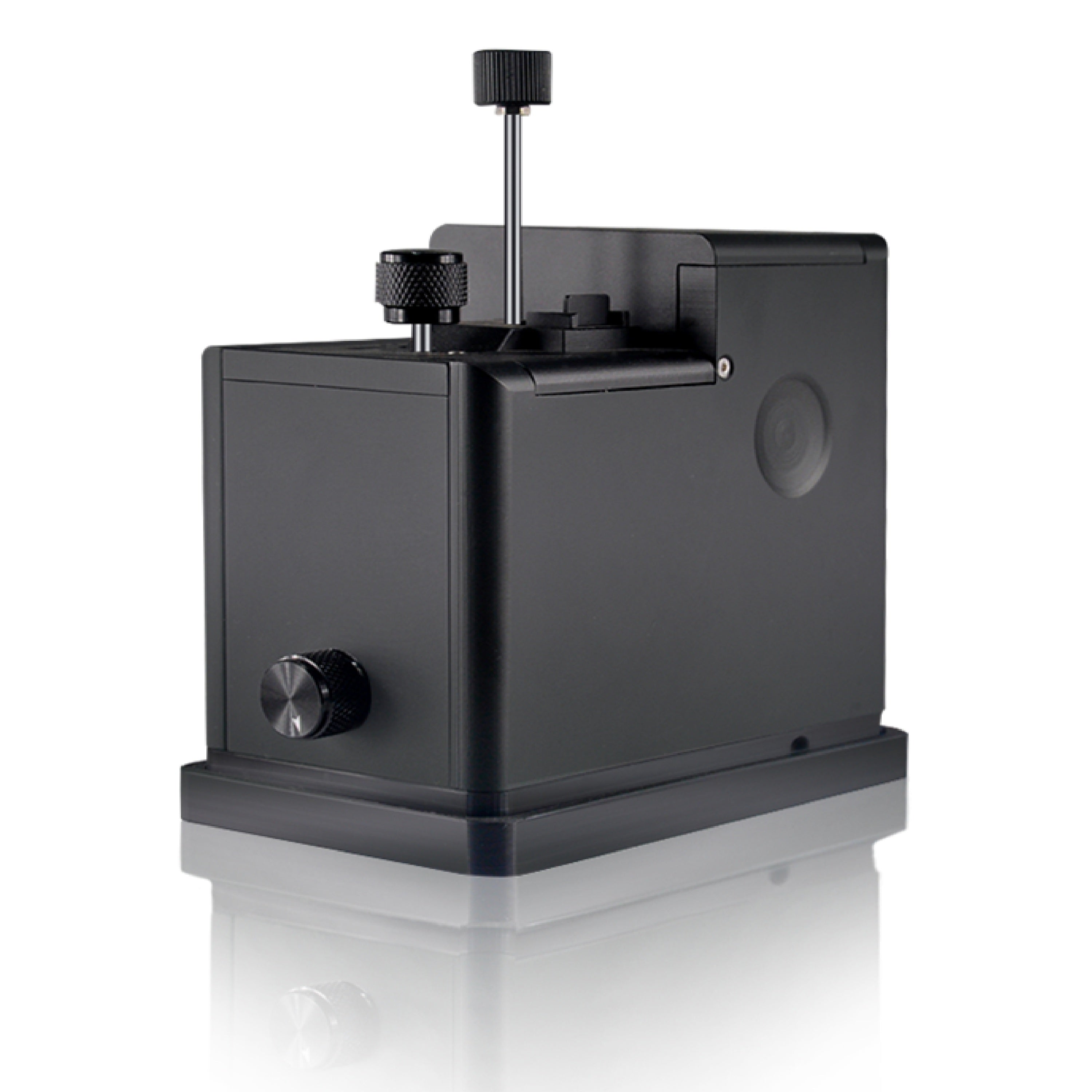

MSE PRO Portable Contact Angle Goniometer
Introduction
The MSE PRO Portable Contact Angle Goniometer is a lightweight and compact solution designed for on-site surface wettability analysis. With its small footprint and low power consumption, it enables quick and reliable contact angle measurements in both laboratory and field environments.
Equipped with a high-resolution imaging system and precision micro-injection module, the system supports static and dynamic contact angle analysis, as well as surface free energy and interfacial tension measurements. Its user-friendly software and portable design make it ideal for applications in coatings, quality control, material inspection, and mobile testing scenarios.
Key Features
-
Ultra-compact and lightweight design (1.2 kg)
-
Portable for on-site and field testing
-
High-resolution imaging (3088 × 2064)
-
High-speed capture up to 400 fps
-
Precision droplet control (0.1 μL accuracy)
-
Supports static and dynamic contact angle analysis
-
Low power consumption via USB interface
-
User-friendly software with automated reporting
-
Ideal for quick inspection and mobile applications
Specification
| 1. General | |
| Model | MSE PRO Portable Contact Angle Goniometer |
| Dimensions | 130 × 72 × 135 mm |
| Weight | 1.2 kg |
| Power Supply | 5 VAC |
| Power Consumption | 5 W |
| Frequency | 60 Hz |
| 2. Sample Capability | |
| Max Sample Size | No limitation |
| 3. Imaging System | |
| Resolution | 3088 × 2064 |
| Max Frame Rate | 400 fps (Upgradeable) |
| Sensor | SONY 1/1.8" |
| Imaging Mode | Monochrome |
| Exposure | Adjustable |
| Interface | USB3 Vision |
| Power | 5V DC USB |
| 4. Optical System | |
| Focal Length | Fixed |
| Magnification | Fixed |
| Angle Adjustment | ±3° |
| Resolution Scale | 6–12 μm |
| Viewing Mode | Top / Side View |
| 5. Illumination | |
| Light Type | Industrial LED (Cold Light) |
| Wavelength | 470 nm |
| Light Field | 15 × 15 mm |
| Light Pattern | Dense array |
| Lifetime | 50,000 hours |
| 6. Injection System | |
| Injection Type | Precision Micro-Syringe |
| Control | Manual |
| Accuracy | 0.1 μL |
| Syringe Volume | 200 μL |
| Needle | 0.51 mm Hydrophobic Stainless Steel |
| 7. Measurement & Analysis | |
| Contact Angle Range | 0–180° |
| Resolution | 0.01° |
| Measurement Modes | Auto / Semi-auto / Manual |
| Methods | Static, Dynamic, Advancing/Receding |
| Models | Young-Laplace, Circle, Ellipse, Tangent |
| 8. Interfacial Tension | |
| Range | 0–3000 mN/m |
| Resolution | 0.01 mN/m |
| Methods | Pendant drop, real-time analysis |
| 9. Surface Free Energy | |
| Models | Zisman, OWRK, Wu, Fowkes, Antonow, EOS |
| Outputs | Adhesion work, wetting work, spreading coefficient |
| 10. Data Processing | |
| Output | Automatic report generation |
| Formats | Excel, Word, Graphs |
MSE offers a range of contact angle goniometer models. Please contact us for more information.
