MSE PRO Tilting Stage (Inclined) Contact Angle Goniometer
Introduction

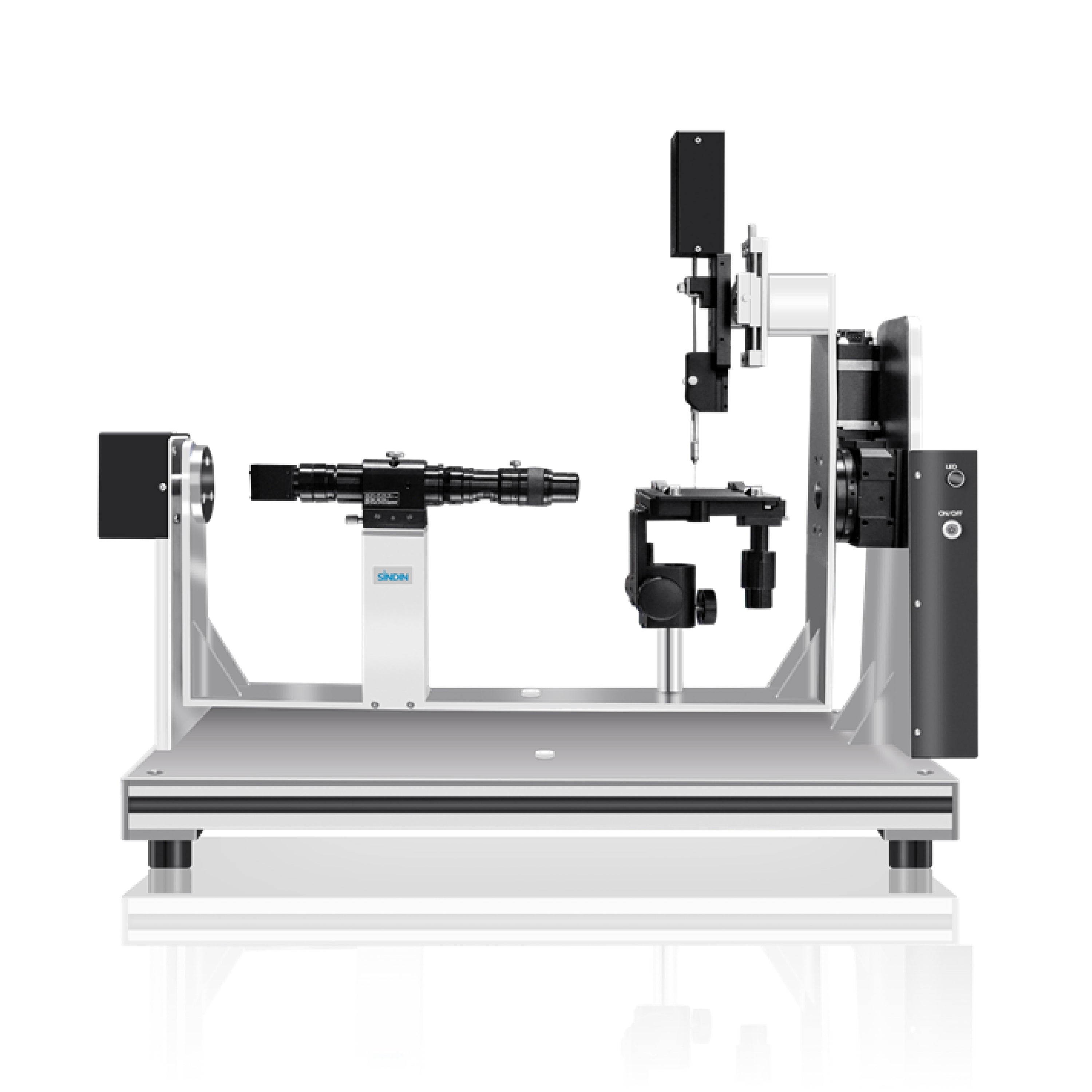

The MSE PRO Tilting Stage (Inclined) Contact Angle is designed for advanced wettability analysis, including rolling angle and dynamic surface behavior measurement. Featuring a precision tilting stage, this system enables accurate evaluation of droplet motion, adhesion, and surface hydrophobicity under controlled inclination conditions.
Equipped with a high-resolution imaging system, software-controlled micro-injection module (0.01 μL accuracy), and advanced analysis software, the instrument supports comprehensive characterization including static contact angle, dynamic wetting, surface free energy, and interfacial tension.
With its robust design and flexible configuration, this system is ideal for research and quality control in coatings, functional materials, semiconductors, and surface engineering applications.
Key Features
-
Tilting stage for rolling angle and adhesion analysis
-
High-precision dosing system (0.01 μL, software-controlled)
-
High-resolution imaging (up to 5000 × 4000)
-
Supports static, dynamic, and tilting angle measurements
-
Advanced surface free energy and interfacial tension analysis
-
AI-assisted measurement and real-time data processing
Specification
| 1. General | |
| Model | MSE PRO Tilting Stage (Inclined) Contact Angle Goniometer |
| Dimensions | 751 × 328 × 610 mm |
| Weight | 28 kg |
| Power Supply | 110V |
| Power Consumption | 150 W |
| Frequency | 60Hz |
| 2. Sample Stage | |
| Stage Size | 170 × 180 mm |
| Max Sample Size | 250 × ∞ × 60 mm |
| Adjustment | Manual (3D) |
| X-axis Travel | 35 mm |
| Y-axis Travel | 60 mm |
| Z-axis Travel | 60 mm |
| Tilting Stage | Optional (0–60°, ±0.1° accuracy) |
| 3. Imaging System | |
| Resolution | 5000 × 4000 |
| Max Frame Rate | 300 fps (Upgradeable) |
| Sensor | SONY |
| Imaging Mode | Monochrome |
| Interface | USB3 Vision |
| Power | 5V DC USB |
| 4. Optical System | |
| Working Distance | 130 ± 10 mm |
| Magnification | 0.5× – 5× |
| Angle Adjustment | ±20° |
| Focus Adjustment | ±5 mm |
| 5. Illumination | |
| Light Type | Industrial LED (Cold Light) |
| Wavelength | 460 nm |
| Light Field | Φ35 mm |
| Voltage | 24 V |
| Lifetime | 50,000 hours |
| 6. Automatic Injection | |
| Control | Software Digital Control |
| Accuracy | 0.01 μL |
| Speed | 1–2000 μL/min |
| Syringe Volume | 100 / 500 / 1000 μL (500 μL standard) |
| Needle | Hydrophobic Stainless Steel |
| 7. Measurement & Analysis | |
| Contact Angle Range | 0–180° |
| Resolution | 0.01° |
| Measurement Modes | Auto / Semi-auto / Manual |
| Methods | Static, Dynamic, Rolling Angle |
| Models | Young-Laplace, Circle, Ellipse, Tangent |
| AI Measurement | Supported |
| 8. Interfacial Tension | |
| Range | 0–3000 mN/m |
| Resolution | 0.01 mN/m |
| Methods | Hanging drop, real-time spectrum |
| 9. Surface Free Energy | |
| Models | Zisman, OWRK, Wu, Fowkes, Antonow, EOS |
| Outputs | Adhesion work, spreading coefficient |
| 10. Data Processing | |
| Output | One-click export |
| Formats | Excel, Word, TXT, Graphs |
| MES Integration | Optional |
MSE offers a range of contact angle goniometer models. Please contact us for more information.
