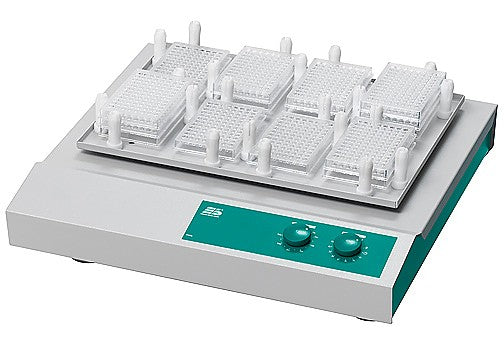

Microplate Shaker TiMix 5 (Edmund Buhler, Made in Germany) (230V version)
Microplate Shaker TiMix 5 (Edmund Buhler, Made in Germany) (230V version)
For biotech, life science and pharma applications, the TiMix 5 shakers are very popular because they can be equipped with different racks for large quantities of microplates.
Description
The Edmund Buhler Microplate Shaker TiMix 5 guarantees optimal mixing of small sample volumes in microplates, deep well plates or other plates in microplate format. The wide choice of different rack systems allows fastening between 8 and 48 microplates.
This is for the purchase of the Microplate Shaker TiMix 5 230V ONLY (without microplate rack). See below for ordering microplate racks separately.
Loading Capacity and Accessories (click here to choose and add to the main system)
Standard rack system, p/n 0052 101 8 microplates
Rack system with pins, p/n 0052 096 8 microplates
Standard rack system, p/n 0052 101 +
Additional tray, p/n 0052 102 16 microplates
RS high clamping pins, p/n 0052 104 24 microplates
RS metal clamping pins, p/n 0052 125 48 microplates
Details
| Motion: | exact orbital motion |
| Shaking platform: | 400 x 300 mm for 8 microplates |
| Max. load: | 5 kg |
| Shaking speed: | 100 - 1400 rpm, steplessly adjustable |
| Stroke: | 3 mm |
| Timer: | 0 - 120 min / continuous |
| Order No.: | 6366000 (U.S. version 115V), 6166000 (230V version) |
Technical specifications
| Electrical supply: | 230 V or 115 V, 50 / 60 Hz please specify |
| Enclosure protection: | IP 21 |
| Heat emission: | approx. 10 - 15 W |
| Ambient temperature: | 5°C to 50°C |
| Relative humidity: | ~ 85 % |
| Dimensions (w x d x h): | 510 x 490 x 150 mm |
| Weight: | 19 kg |
