MSE PRO Lab Pneumatic Battery Electrode Die Cutter

  • $ 3,89900

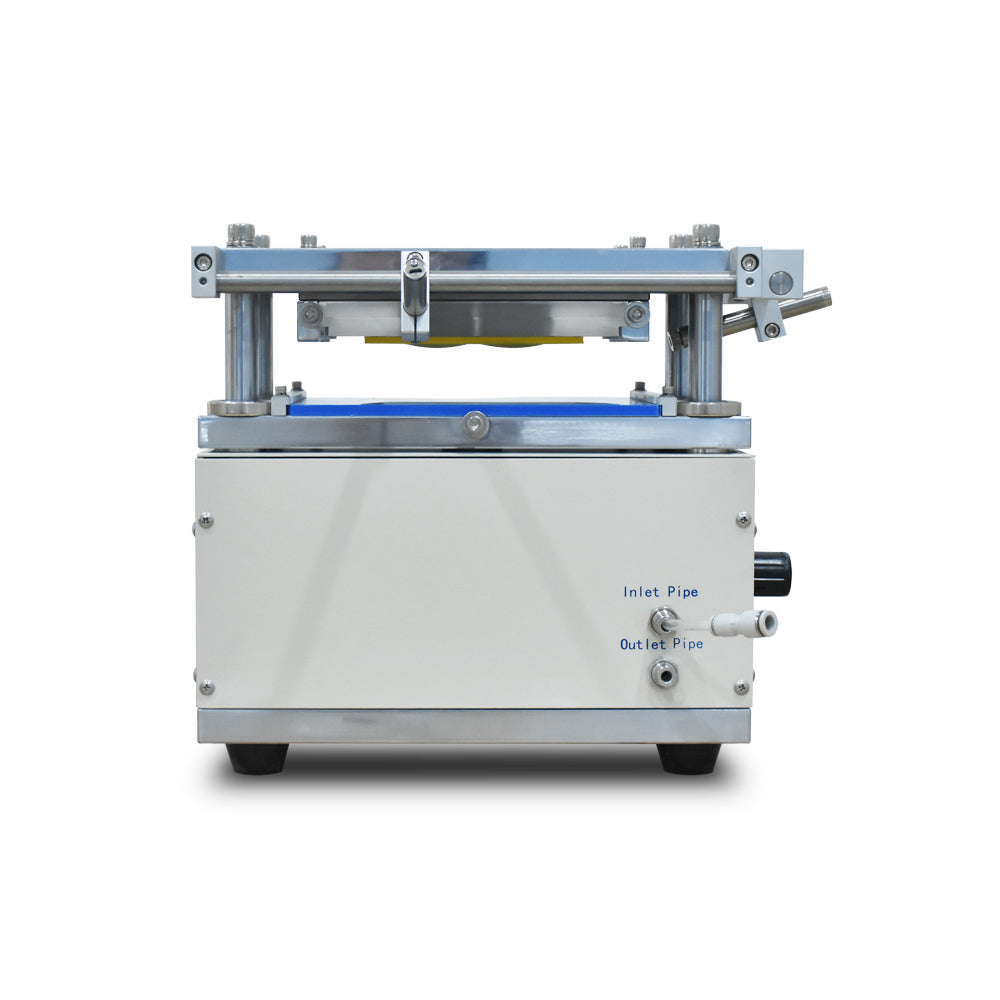

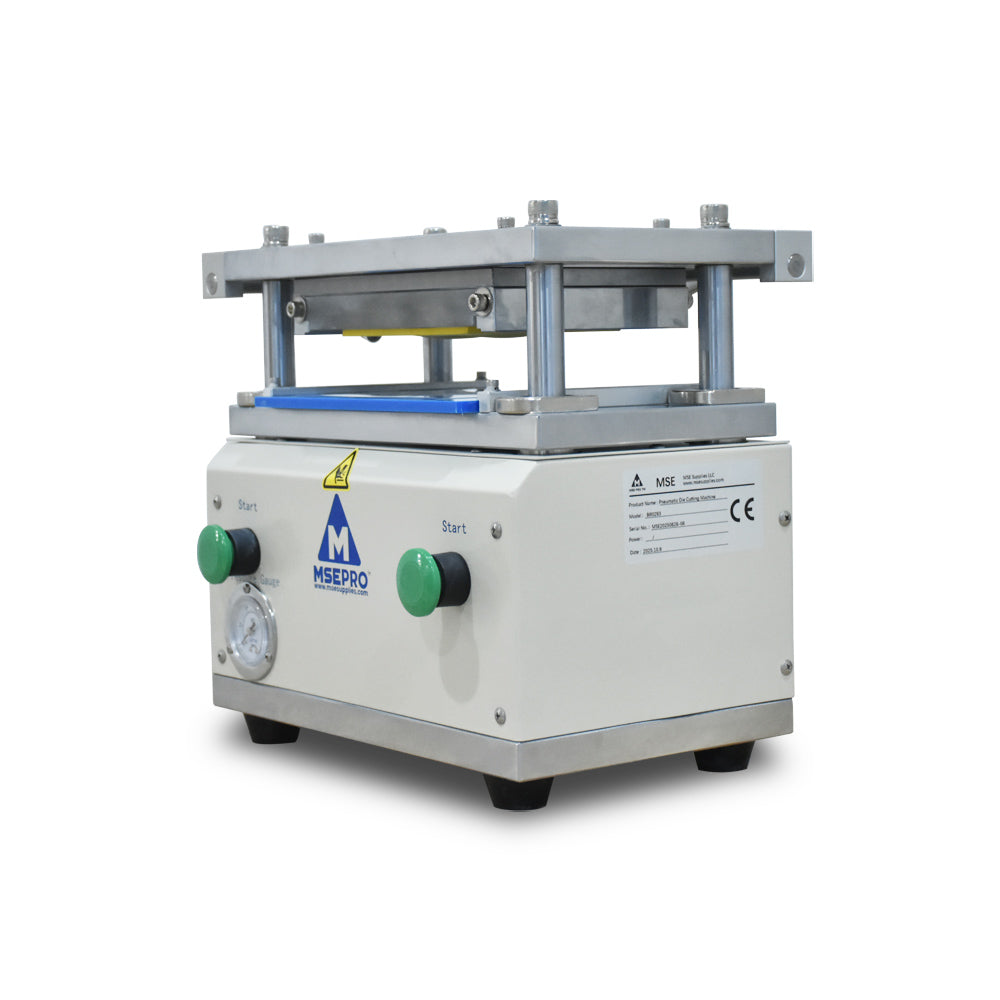

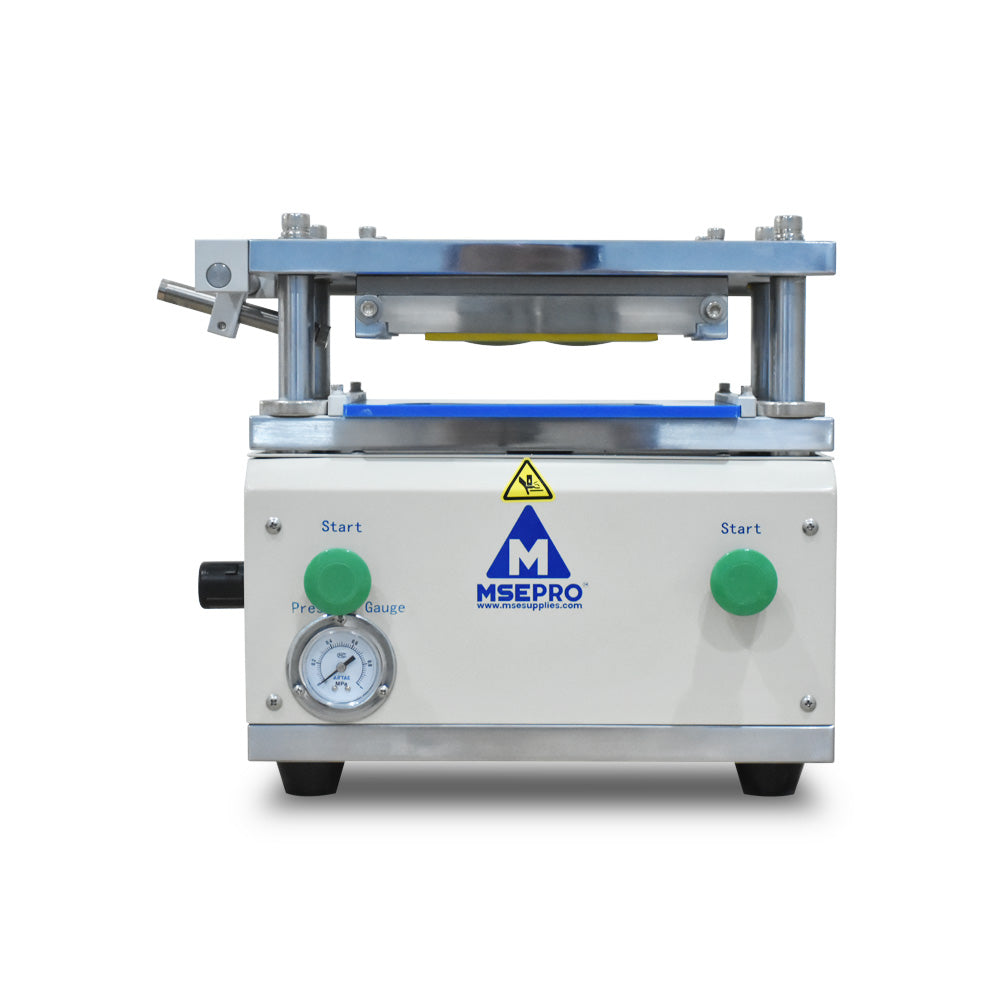

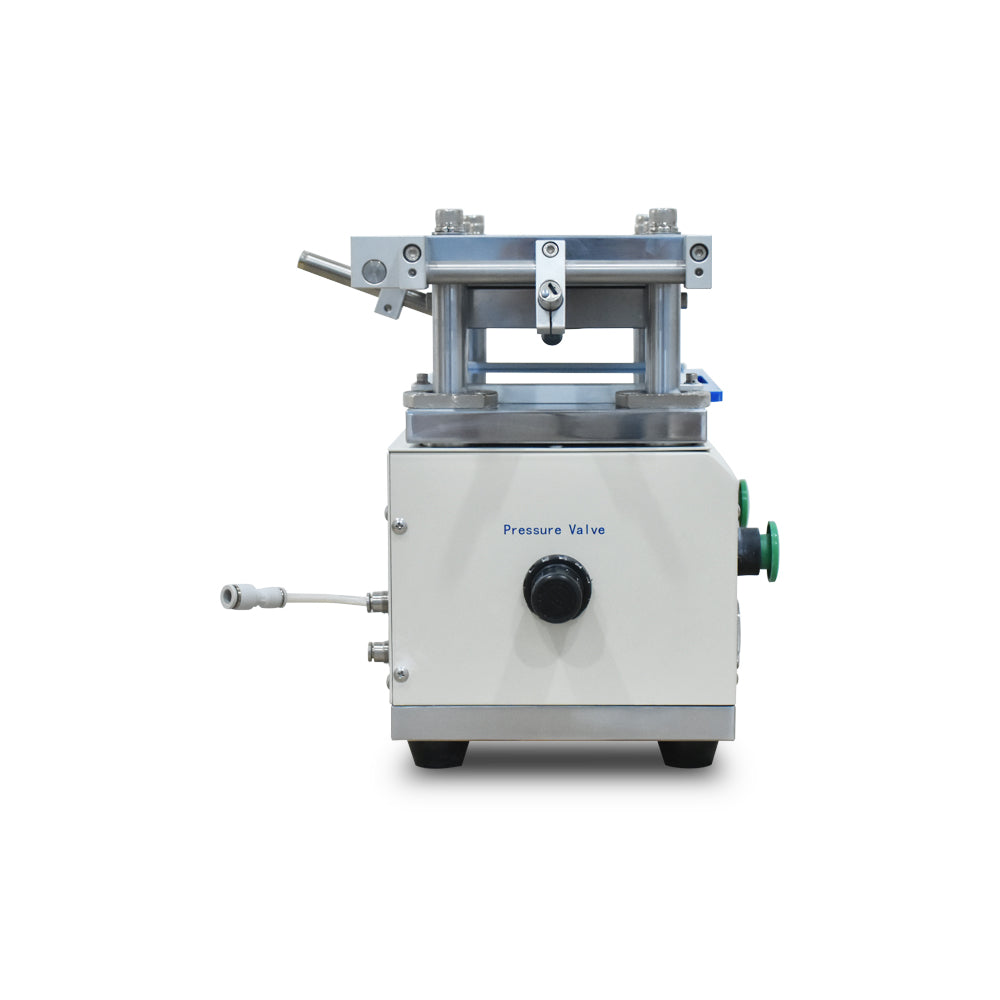

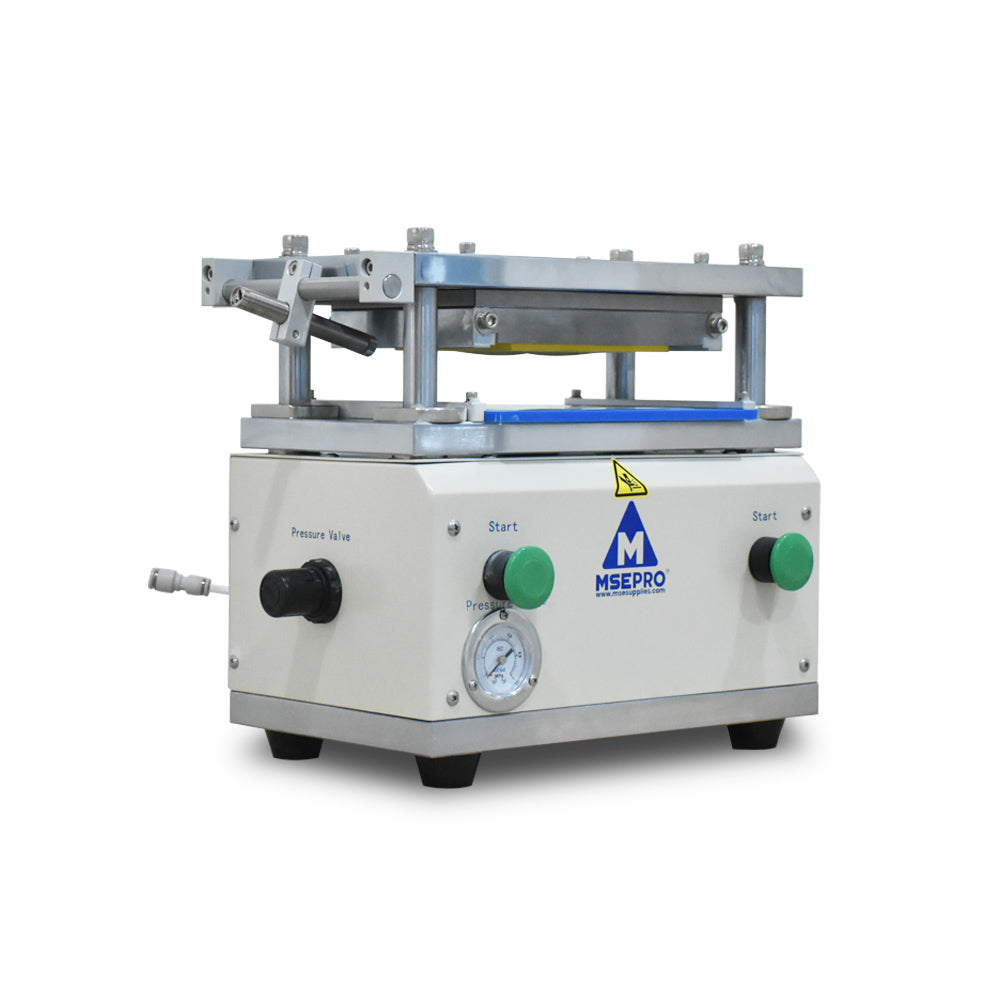

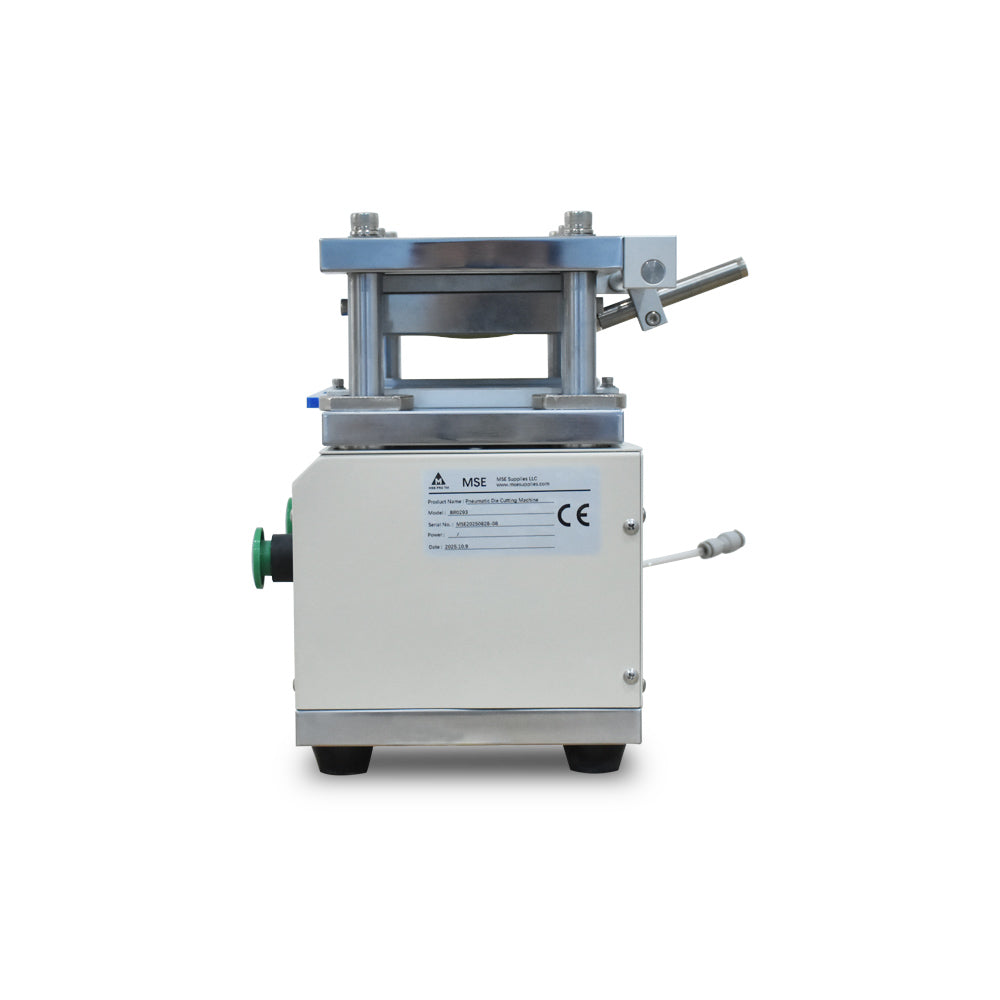

MSE PRO™ Lab Pneumatic Battery Electrode Die Cutter

MSE Supplies offers a high-quality pneumatic die cutter. It is suitable for die-cutting of positive and negative electrode sheet of punching type cell by pneumatic method. This machine has exquisite appearance and small size, which can be placed in the glove box. If used in glove box, please periodically check the seal in case of any oil leak.

Customized cutting dies are available. Please contact us for more detailed information.

SPECIFICATIONS

    Product number (SKU#) BR0293
    Max. punching size 85*65mm can be customized

    Included Die Size (2pcs)

    Anode die 58x45mm

    Cathode die 56x43mm

    Punching accuracy

    ±0.1mm

    Punching thickness

    Max. 0.5mm (based on aluminum laminated film)

    Punching pressure

    Max. 1T (0.5MPa recommended)

    Compressed air

    0.5~1.0 MPa for Ar or Ngas

    0.7 MPa for compressed air (Don't use in glovebox)

    Dimension(L*W*H)

    350*230*300mm

    Weight

    32kg

    After cutting the electrode, you need "Pouch Cell Case Forming Machine" and "Sealer" to make the pouch cell.

    MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
