MSE PRO Hydraulic Battery Electrode Die Cutter For Pouch Cell

  • £3,06700


MSE PRO™ Hydraulic Battery Electrode Die Cutter For Pouch Cell

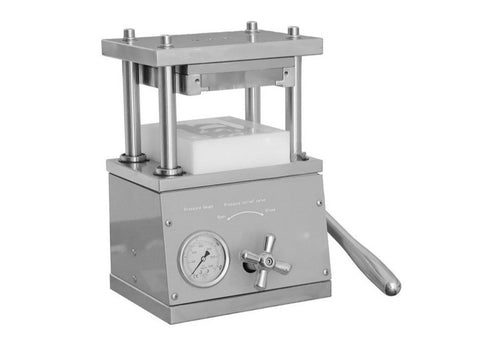

MSE Supplies offers a manual electrode die cutter machine adopting hydraulic cutter method. This hydraulic battery electrode die cutter is mainly used for pouch cell electrode sheet cutting for stacking pouch cell battery. This model is compatible with glove boxes. If utilized in a glove box, please periodically inspect the seal to detect any oil leak.

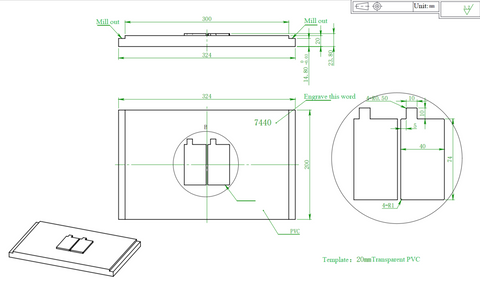

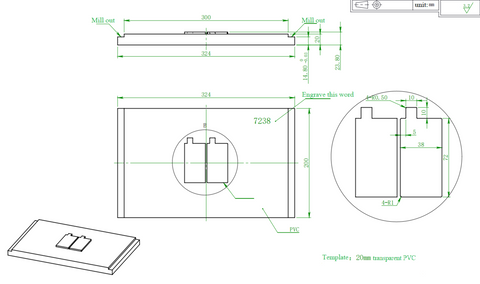

Customized cutting dies are available. Please contact us for more detailed information.

PRODUCT SPECIFICATION

Product number (SKU#) BR0292
Included Die Size (2pcs)

70*38mm

Max. 120*100mm, can be customized

Knife lifetime Lift more than 30000 times
Pressure 7~10MPa
Dimension 330*290*330mm
Weight 30kg

    After cutting the electrode, you need "Pouch Cell Case Forming Machine" and "Sealer" to make the pouch cell.

    MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
