MSE PRO™ LISICON (Lithium-ion Superionic Conductor) membrane materials are used as solid state electrolytes or separators in advanced lithium batteries and other electrochemical devices.
The unique properties of MSE PRO™ LISICON membrane solid state electrolyte materials make them ideal choices for all solid state lithium batteries, advanced Lithium-Sulfur, Lithium-Air, Lithium-Water batteries, etc.

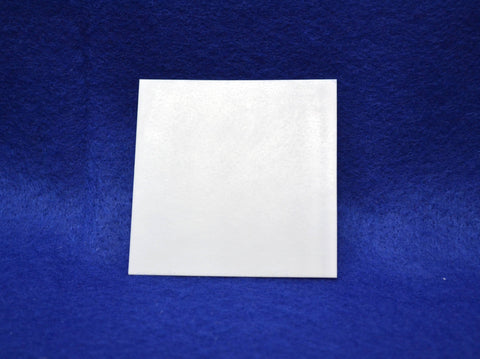

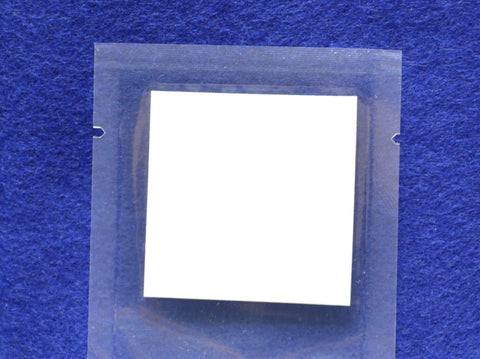

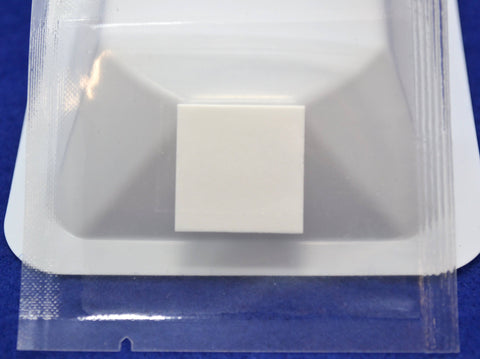

Size (Length x Width): 20 mm x 20 mm, 40 mm x 40 mm, 60 mm x 60 mm (other sizes are available for special orders)

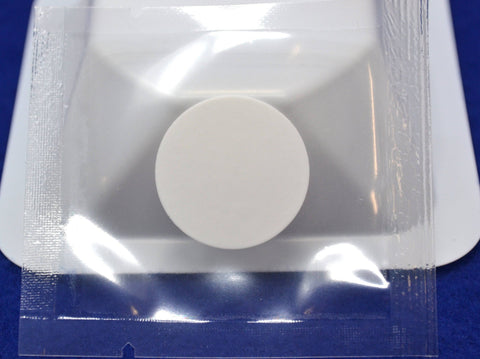

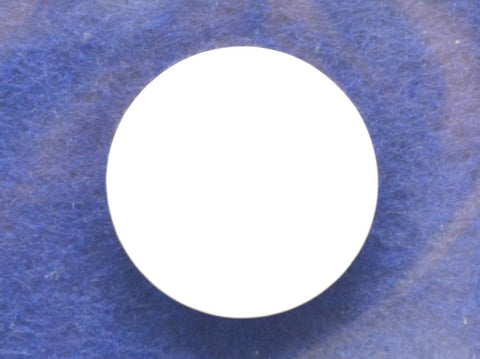

Size (Diameter): 1/2 inch (12.7 mm), 16 mm, 19 mm(on sale), 1 inch (25.4 mm) , 3 inch (76 mm) (other sizes are available for special orders)
Thickness: ~300 um
Lithium ion conductivity: up to 5 x 10-4 S/cm at room temperature and stable in air. This conductivity performance is better than the Lithium-Ion Conducting Glass-Ceramics (LICGC) products manufactured by Ohara Corporation, which only reported lithium ion conductivity of up to 4x10-4 S/cm at room temperature.
Relative Density: >95%
Theoretical Density: 3.42 g/cm3
Flexural strength: ~180 MPa
Chemical stability: Unstable in strong acid or base. Stable in organic solvent.
Main crystalline phase: Li5Al0.5Ge1.5P3O12(LAGP) or Li1.5Al0.5Ge1.5(PO4)3 (LAGP), Lithium aluminum germanium phosphate. Small amount of proprietary dopants are present.
LAGP is superior to LATP because of the better electrochemical stability of the LAGP.
Primary crystal structure: NASICON type crystals
Applications: Lithium air battery, Lithium sulfur battery, solid state batteries, and other electrochemical devices.
* All solid state electrolyte materials sold by MSE Supplies are under the trademark of Ampcera.
