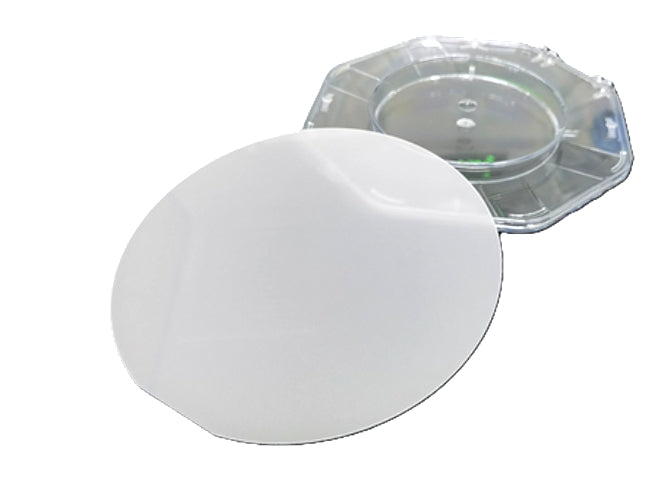

MSE PRO 6-inch High-Quality Single-Crystalline AlN/Sapphire Substrate

SKU: SU6064

  • $ 2,80995
  • Save $ 31222



MSE PRO™ 6-inch High-Quality Single-Crystalline AlN/Sapphire Substrate

The High-Quality Single-Crystalline AlN/Sapphire Substrate are advanced substrates designed for the development of high-performance UVB/UVC-LEDs and GaN-based electrical power devices. These substrates offer exceptional crystalline quality, making them an ideal platform for cutting-edge optoelectronic and electronic applications.

Key Features:

  • Material: Composed of high-quality single-crystalline aluminum nitride (AlN) on sapphire substrates.

  • Crystalline Quality: Extremely low dislocation density of ~10⁸ cm⁻², ensuring superior performance for target devices.

  • Performance: High crystalline quality acts as a prerequisite for the high efficiency and reliability of optoelectronic and electronic devices.

Applications:

  • UVB/UVC-LEDs: Suitable for the development of ultraviolet light-emitting diodes in the UVB and UVC spectra.

  • GaN Electrical Power Devices: Perfect for high-performance GaN-based power electronic devices.

  • Optoelectronics: Ideal for advanced optoelectronic applications requiring high crystalline quality.

Specifications:

Diameter 6-inch
Thikness 650±10μm
Surface Polishing Single/Double polish
Orientation c-plane±0.2°
AlN Thickness 400~1500 nm
Thickness Nonuniformity  1.5%
FWHM-RC (002)  ≤80 arcsec
FWHM-RC (102) ≤220 arcsec
Surface RMS  1 nm

Usable Area

>95%


Please note consumable products are non refundable or eligible for return. Quality issues or concerns must be reported within 1 week of delivery.

    Single Crystal Quartz Wafers and Substrates are also available. Please Contact us for more details or Customization.
