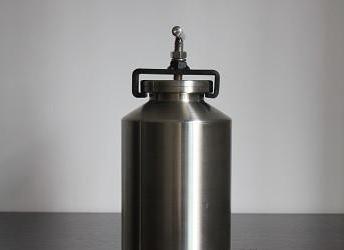

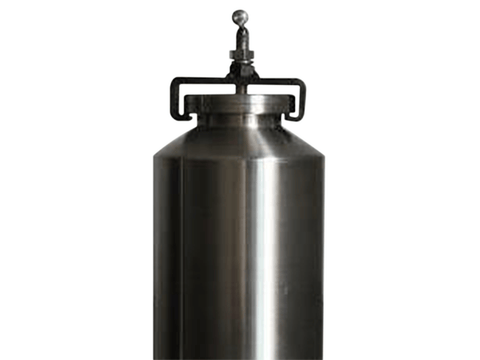

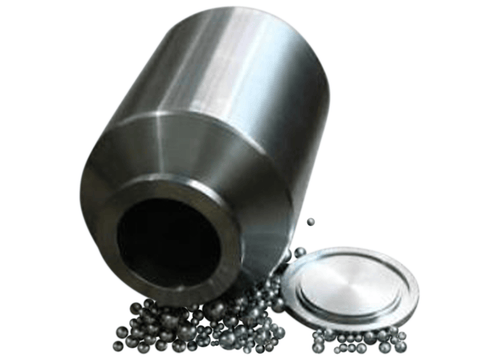

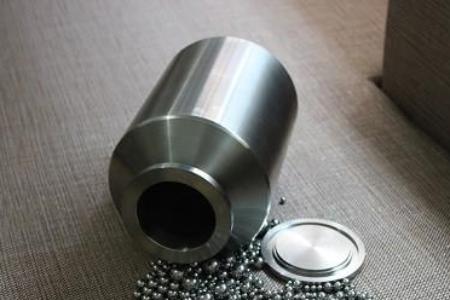

MSE PRO 10L (10,000ml) Stainless Steel Roller Mill Jar - 304 or 316 Grade

SKU: JA0308

  • $ 1,47995
  • Save $ 17800


Specifications for Stainless Steel Roller Mill Jar

  • Made of Stainless Steel (grade 304 or grade 316), corrosion resistant.
  • Lid, gasket, and clamps are included.
  • Cylindrical steel jars are easy to pour and easy to clean. Minimal cross contamination.
  • Abrasion resistant for long lasting milling.
  • Anti-leaking safe design, easy lock and roll design.
  • No dead end, good for both dry mill and wet mill.
  • Recommended milling media set: either BA0783 or BA0784
Stainless steel grinding balls (grade 304 SS or grade 316 SS) can be ordered from MSE Supplies.

    304 & 316 Stainless Steel Grinding/Milling Jars for Roller Mill Price

    Product #

    Material Grade

    Volume (ml)

    Price (USD)

    JA0318

    304

    500

    389

    JA0319

    316

    500

    447

    JA0309

    304

    1000

    489

    JA0320

    316

    1000

    562

    JA0312

    304

    2000

    579

    JA0321

    316

    2000

    665

    JA0315

    304

    3000

    759

    JA0322

    316

    3000

    879

    JA0317

    304

    5000

    959

    JA0308

    304

    10,000

    1,479

    JA0324

    316

    10,000

    1,699

    JA0306

    304

    15,000

    1,889

    JA0325

    316

    15,000

    2,172



    Features of Stainless Steel Roller Mill Jar

    Item No.: JA0308 (Grade 304) / JA0324 (Grade 316)

    Material: stainless steel

    Grinding Jar Volume: 0.5 L to 15 L

    Max Loading Capacity: 2/3 capacity of the grinding jar

    Shape: cylindrical

    Density: 8.0 g/cm3

    Main Chemical Compositions: Fe (70.6~67.4%), Cr (17~19%), Ni (8~10%)

    Hardness: <=187 HB

    Attachments: lid & silicon sealing gasket

    Grinding Balls: stainless steel balls (should be ordered separately)

    Grinding Ball Diameters: 3/5/8/10/15/20/25/30mm

    Abrasion Resistance: fairly good

    Suitable for: medium-hard, brittle samples

    Dimensions and Weights of Stainless Steel Roller Mill Jars
    Jar Volume Outer Diameter (mm) Inner Diameter (mm) Height (mm)

    Weight (kg)

    500ml 88 82 144 ~1
    1L 106 100 172 ~2
    2L 131 124 206 ~3
    3L 158 152 217 ~4
    5L 178 172 269 ~5
    10L 243 233 307 ~12
    15L 271 263 347 ~13
