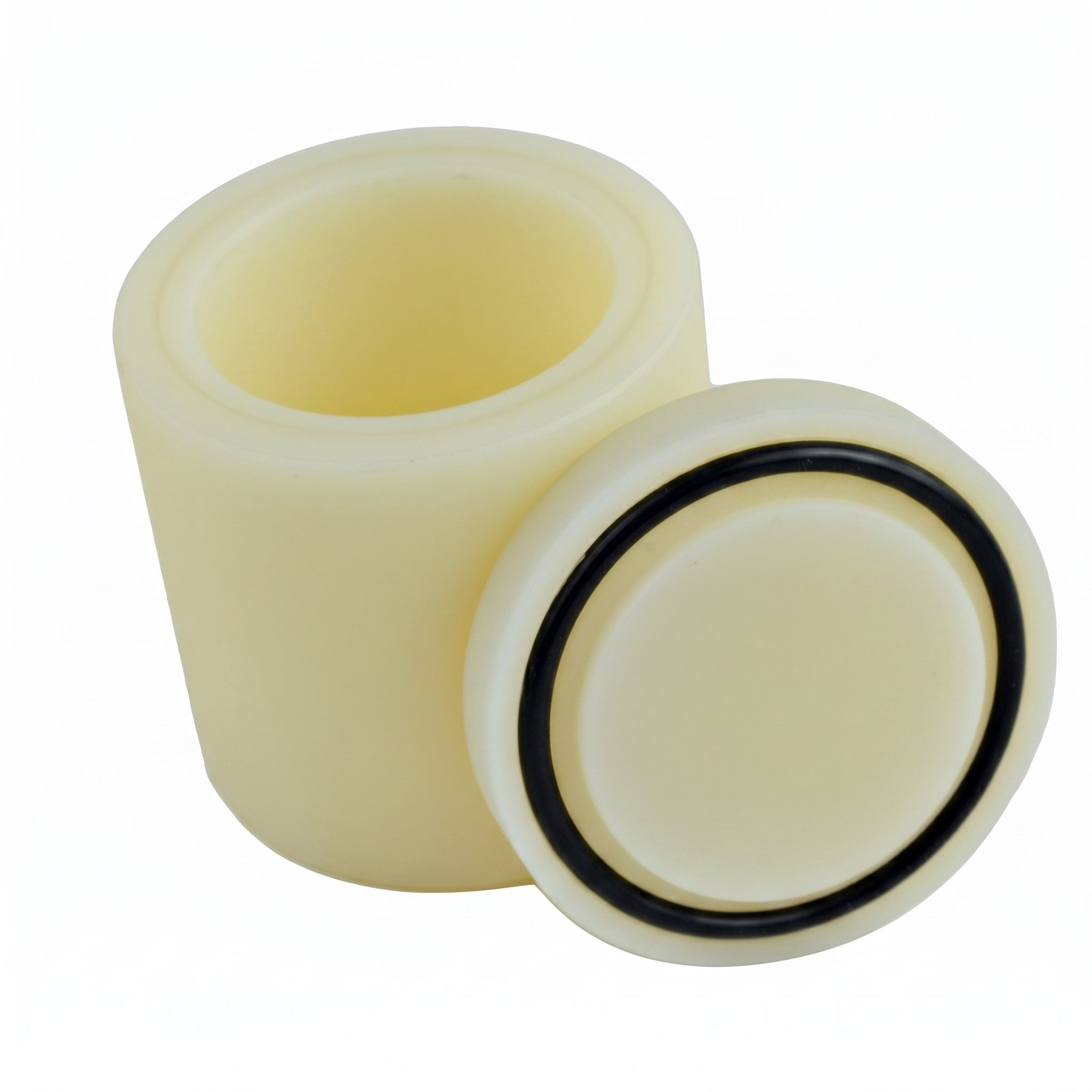

MSE PRO 100 ml Nylon Planetary Mill Grinding Jar

SKU: JA0402

  • $ 16995
  • Save $ 2100


Specifications for Nylon Grinding Jars

  • Nylon grinding jars for planetary ball mills.
  • They are extensively applied to in the field of Geology, Metallurgy, Electronics, Pigment, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection and so on.
  • Each jar set includes grinding jar, jar lid, silicon sealing gasket.

Nylon Milling Jars for Planetary Mill Price

Product #

Volume (ml)

Price $

JA0416

50

139

JA0402

100

169

JA0401

250

189

JA0417

500

249

JA0406

1,000

369

JA0425

1,500

469

JA0411

2,000

539

JA0408

2,500

599

JA0414

3,000

839

JA0413

4,000

939

JA0419

5,000

999

JA0423

10,000

1199

JA0404

15,000

1564

JA0424

20,000

1998

JA0410

25,000

2495


Features of Nylon Grinding Jars

  • Item No.: JA0402
  • Material: PA6 /Nylon /Polyamide
  • Jar Volume: 50 ml~ 25,000ml
  • Max Loading Capacity: 2/3 capacity of the grinding jar
  • Specific Gravity: 1.14g/cm3
  • Abrasion Resistance: very good
  • Shape: cylindrical
  • Color: milk white or light yellow
  • Tensile Strength: > 60.0 MPa
  • Bending Strength: 90.0 MPa
  • Melting Point: 216°C
  • Water Absorption (24hours): 1.7% ~1.8%
  • Contraction: 0.6% ~1.6%
  • Attachment: silicon sealing gasket and lid
  • Compatible Grinding Balls: stainless steel balls, aluminum oxide balls, zirconium oxide balls, WC balls (optional, can be ordered separately)
  • Suitable for: medium-hard, abrasive samples

Choice of Grinding Jars & Grinding Balls

In order to prevent excessive abrasion, the hardness of the grinding jars used and of the grinding balls must be higher than that of the material used. Normally, grinding jars and grinding balls of the same material should be chosen.

Grinding Jar Ball Configurations (e.g. zirconium oxide balls)

Grinding Jar Volume 100ml 250ml 500ml 1000ml
Compatible Ball Weight 100g 250g 500g 1000g
5mm grinding balls (0.39g) 52 pcs (20%) 128 pcs (20%) 257 pcs (20%)
10mm grinding balls (3.17g) 16 pcs (50%) 40 pcs (50%) 79 pcs (50%) 63 pcs (20%)
15mm grinding balls (10.71g) 3 pcs (30%) 7 pcs (30%) 14 pcs (30%) 47 pcs (50%)
20mm grinding balls (25.39g)


12 pcs (30%)

These values are recommendations, the number of balls should be determined experimentally if necessary.
