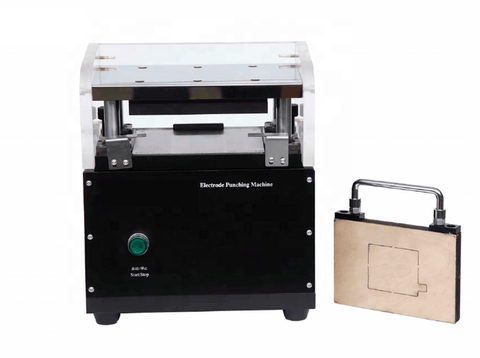

Glovebox Compatible Compact Pneumatic Battery Electrode Die Cutter for Pouch Cell Research
Specifications:
MSE Supplies offers a compact benchtop pneumatic battery electrode die cutter for pouch cell research. It is widely used to cut cathode and anode electrode for pouch cell. Because of its compact design, this die cutter can be easily placed in a glovebox to cut the oxygen or moisture sensitive electrode sheets. Please don't use air as the driven gas when using this equipment in a glovebox.
After cutting the electrode, you need "Pouch Cell Case Forming Machine" and "sealer" to make the pouch cell.
MSE Supplies is a US-based leading supplier of battery research materials and equipment with thousands of customers worldwide.
| SKU | BR0247 |
| Maximum Die Size | 80x60mm (Customizable) |

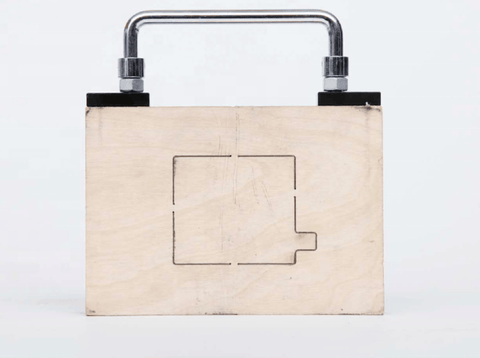

| Included Die Size |
Anode die 58x45mm Cathode die 56x43mm |
| Die Cutting Accuracy | ± 0.1mm |
| Gas Source Pressure |
0.5~1.0 MPa for Ar or N2 gas 0.7 MPa for compressed air (Don't use in glovebox) |
| Punching Pressure |
Max. 1T, Recommended 0.5T |
| Punching Thickness | Max. 0.5mm (based on aluminum laminated film) |
| Outer Dimensions | 370x245x245mm |
| Voltage | 110V |
| Net Weight | 32kg |
| Warranty | One year limited warranty with lifetime product support |
If you name MSE Supplies in your published journal paper or conference abstract, we can offer a one-time 5% discount toward your next purchase.
