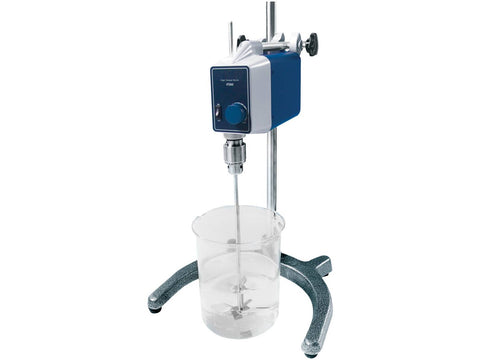

Witeg Overhead Stirrer HT-AX, High-Torque, 50-1000 RPM, 60,000/90,000 mPas, Analog, Internal Controller
SKU: DH.WOS01251
Witeg Overhead Stirrer HT-AX, High-Torque, 50-1000 RPM, 60,000/90,000 mPas, Analog, Internal Controller
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- All mixing applications in the laboratory
- Specialized for light watery solutions up to high-viscosity fluids
Features:
- Maximal 40 / 60 liter
- 50 - 1,000 rpm
- Maximal viscosity 60,000 / 90,000 mPas
- Worm-geared motor (ratio 3.5:1)
- Smooth start and change of stirring speed while operation
- Impeller height adjustable

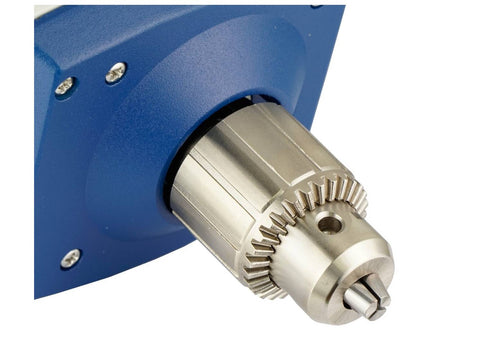

- Chrome-plated stainless steel chuck
- CE certified and unique serial number for tracing
Safety mechanism:
- Overheat protection
- Overload protection
- Operation LEDs
Controller:
- Analog phase controller with control knob
Features
- Powerful DC motor for various stirring applications (direct-driven or worm-geared)
- The worm-geared motor ensures high-torque at all recommended viscosities
- Digital feedback controller
- Steady and constant stirring speed
- chrome-plated stainless steel chuck to prevent corrosion
- Anti-trembling system - the impeller is fixed at two points within the body and chuck
- Adjustable impeller position (height)
- Motor overload and overheat protection for highest safety and long lifetime
- Available as set with impeller, plate stand and clamp
- Many different impellers and plate stands available
- The impeller is fixed at two points within the body to ensure smooth operation without trembling
Devices with 230 V power supply can also be supplied with 120 V on request.
Technical data
|
Version |
High-torque |
|
Length (outer)
|
180 mm |
|
Material |
ABS & Aluminium |
|
Controller |
Analog, integrated |
|
Moisture range |
80% RH |
|
Weight |
3,5 kg |
|
Capacity |
max. 40 l |
|
Temperature range |
Ambient temperature +0°C - 40°C |
|
Viscosity (mPas) |
max. 60000 mPas |
|
Width (Outer) |
90 mm |
|
Height (outer) |
130 mm |
|
Ideal for |
All mixing applications in the laboratory, specialized for light watery solutions up to high-viscosity fluids |
|
Torque |
180 Ncm at chuck |
|
Speed |
50 - 1000 rpm |
|
Weight with packaging |
5 kg |
|
Stirrer diameter |
Shafts Ø10 mm or less |
|
Packing size |
320 x 300 x h180 mm |
Comparison
| SKU | Model | Version | Width (Outer) | Length (outer) | Height (outer) | Material | Ideal for | Controller | Torque | Moisture range |
| DH.WOS01251 | HT-50AX unit 230 V | High-torque | 90 mm | 180 mm | 130 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for light watery solutions up to high-viscosity fluids | Analog, integrated | 180 Ncm at chuck | 80% RH |
| DH.WOS01252 | HT-50AX set 230 V | High-torque | 90 mm | 180 mm | 130 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for light watery solutions up to high-viscosity fluids | Analog, integrated | 180 Ncm at chuck | 80% RH |
| DH.WOS01271 | HT-120AX unit 230 V | High-torque | 90 mm | 210 mm | 130 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for light watery solutions up to high-viscosity fluids | Analog, integrated | 210 Ncm at chuck | 80% RH |
| DH.WOS01272 | HT-120AX set 230 V | High-torque | 90 mm | 210 mm | 130 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for light watery solutions up to high-viscosity fluids | Analog, integrated | 210 Ncm at chuck | 80% RH |
| SKU | Speed | Weight | Weight with packaging | Capacity | Stirrer diameter | Temperature range | Packing size | Viscosity (mPas) |
| DH.WOS01251 | 50 - 1000 rpm | 3,5 kg | 5 kg | max. 40 l | Shafts Ø10 mm or less | Ambient temperature +0°C - 40°C | 320 x 300 x h180 mm | max. 60000 mPas |
| DH.WOS01252 | 50 - 1000 rpm | 3,5 kg | 5 kg | max. 40 l | Shafts Ø10 mm or less | Ambient temperature +0°C - 40°C | 320 x 300 x h180 mm | max. 60000 mPas |
| DH.WOS01271 | 50 - 1000 rpm | 4 kg | 8 kg | max. 60 l | Shafts Ø10 mm or less | Ambient temperature +0°C - 40°C | 320 x 300 x h180 mm | max. 90000 mPas |
| DH.WOS01272 | 50 - 1000 rpm | 4 kg | 8 kg | max. 60 l | Shafts Ø10 mm or less | Ambient temperature +0°C - 40°C | 320 x 300 x h180 mm | max. 90000 mPas |
