Atomic Layer Deposition ALD Equipment

Atomic Layer Deposition equipment enables precise thin film growth through self-limiting surface reactions, delivering uniform, conformal coatings with atomic-level film thickness control. Compared with chemical vapor deposition and Physical Vapor Deposition, ALD systems are preferred for nanoscale structures where precise thin film coating and repeatability are essential in semiconductor fabrication and advanced materials science.

This category includes Atomic Layer Deposition equipment designed for research and scalable deposition systems:

• Thermal ALD systems supporting controlled thin film growth and stable process chamber environments for consistent film thickness.
• Plasma ALD and Plasma Enhanced Atomic Layer Deposition systems, including remote plasma ALD, enabling lower-temperature deposition and broader precursor compatibility.

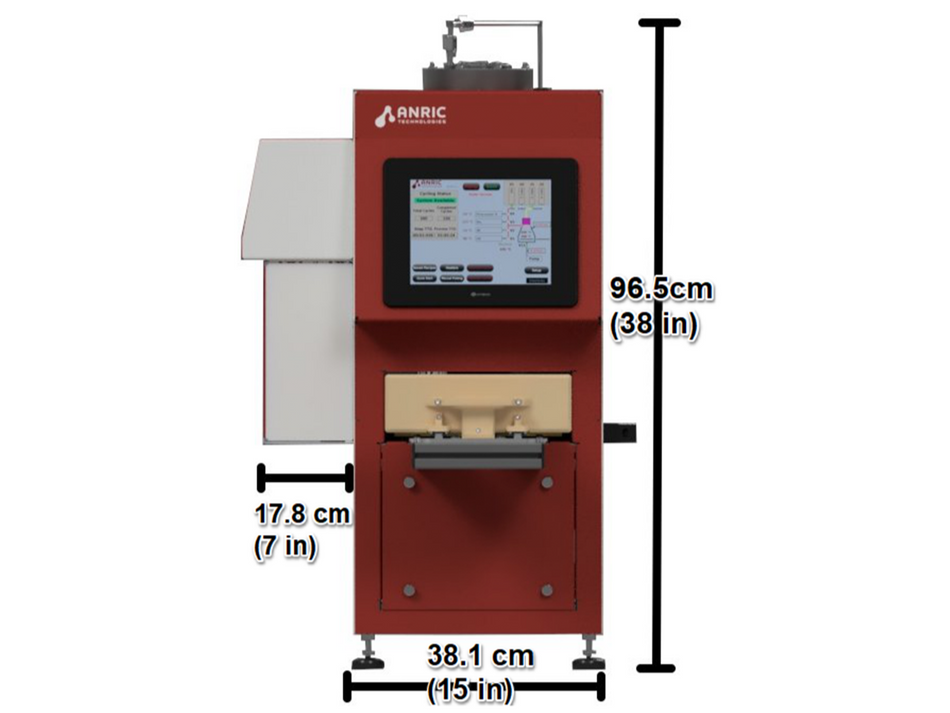

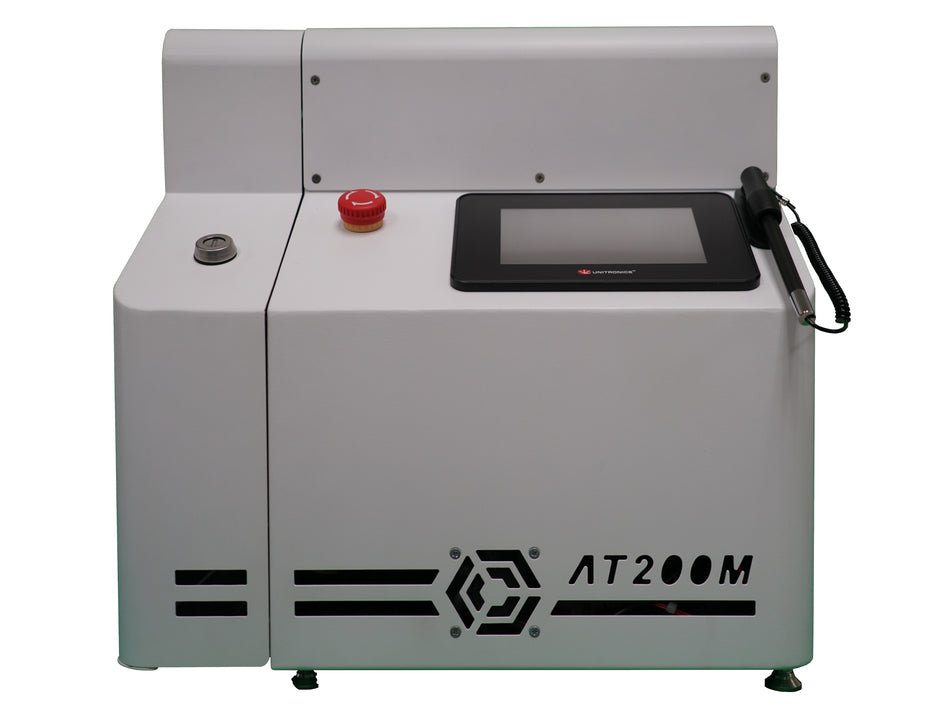

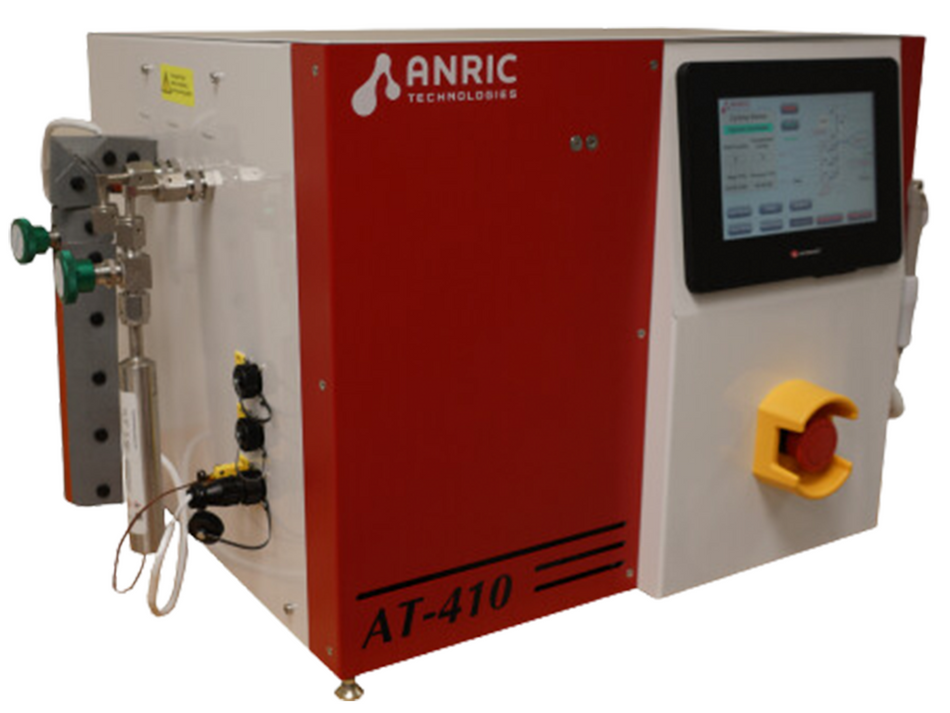

• Benchtop and scalable ALD systems accommodating varying wafer sizes, substrate formats, and deposition modes.
• Deposition equipment with integrated reactor chamber and precursor delivery systems for controlled precursor sources and repeatable process conditions.

Selecting Atomic Layer Deposition equipment requires evaluation of:

• Precursor delivery and dosing control, which directly affect thin film growth and film thickness precision.
• Process chamber and reactor chamber design, influencing coating uniformity and substrate compatibility.
• Plasma configuration, including Inductively Coupled Plasma (ICP source) and RF devices, impacting reactivity and film properties.
• Vacuum systems and UHP process conditions, supported by vacuum gauge control for contamination-free deposition.
• Deposition modes, including thermal ALD and Plasma ALD, aligned with material and process requirements.

Atomic Layer Deposition equipment is used in:

• Semiconductor manufacturing, supporting advanced chips, 3D NAND memory, and device node shrinking with conformal coatings on nanoscale structures.
• Materials science and surface engineering, enabling precise thin film coating and interface control.
• Energy and Battery Materials, improving surface stability and electrochemical performance.
• Emerging technologies, including quantum computing and GaN power devices requiring atomic-level deposition precision.
• Analytical workflows, including electron microscopy sample preparation and integration with coating equipment platforms.

Atomic Layer Deposition equipment from MSE Supplies supports laboratories and production environments requiring reliable ALD systems for thin film deposition and semiconductor fabrication. For assistance selecting deposition equipment aligned with process requirements, contact the MSE Supplies team.

Where ALD Fits and Where It Stops

Atomic layer deposition wins on control and loses on speed, and that trade is the first thing to check against a process plan. A cycle deposits roughly one atomic layer, which means film thickness is set by counting cycles rather than by timing a rate. It also means a film that a sputtering system finishes in a minute can take a reactor most of a working day.

The Throughput Constraint

Growth per cycle for common chemistries sits near a single angstrom, and each cycle includes a precursor dose, a purge, a co-reactant dose, and another purge. In a research reactor that adds up to seconds or tens of seconds per cycle, so a hundred nanometers means a thousand cycles and an overnight run. The practical consequence is that ALD earns its place on thin functional layers where conformality or precise thickness genuinely matters: gate dielectrics, diffusion barriers, encapsulation, surface passivation on battery cathode particles. Thicker structural and conductive layers belong on faster tools, whether that means high purity sputtering targets for dense films with good adhesion or e-beam evaporation materials for high-rate metal deposition on line-of-sight geometry. Most stacks that include ALD use it for one or two layers out of several rather than throughout.

Nucleation Depends on the Starting Surface

The self-limiting reaction that makes ALD precise also makes it dependent on surface chemistry, because the precursor needs reactive sites to bond to. Surfaces rich in hydroxyl groups nucleate immediately, which is why a native oxide on silicon works well and why silicon wafers and substrates with a known, reproducible surface condition are the standard starting point for process development. Inert surfaces behave badly by comparison. Hydrogen-terminated silicon, noble metals, graphene, and many polymers show a nucleation delay where the first tens of cycles deposit islands rather than a continuous film, which ruins thickness control at the thin end. The usual fixes are a surface activation step such as ozone or plasma treatment to create reactive groups, or depositing a few nanometers of seed layer first with a sputter coater and letting ALD grow on that instead.

Pumping and Byproduct Management

ALD is harder on a vacuum system than the base pressure suggests, because the process alternates between dosing and heavy inert purge flows rather than sitting at steady state. Unreacted precursor and reaction byproducts travel into the foreline and condense wherever the temperature drops, which fouls pumps and creates deposits that eventually restrict flow. Chloride-based precursors make this worse by generating hydrogen chloride, so pump chemical compatibility becomes a specification rather than an afterthought. That is where the choice between rotary vane and scroll pumps matters: oil-sealed rotary vane pumps handle gas load well and tolerate condensables if run with gas ballast and serviced on schedule, while dry scroll pumps eliminate oil backstreaming into the chamber and suit contamination-sensitive work at the cost of shorter tip seal life under aggressive chemistry.

Cycle count, surface chemistry, and pumping capacity determine whether an ALD process is practical, and a film that will not nucleate or a run that takes too long is usually a planning problem rather than an equipment fault. Our applications team can help scope a deposition process across tools. The full range sits within our Materials Science products catalog covering advanced materials, laboratory equipment, and consumables.
