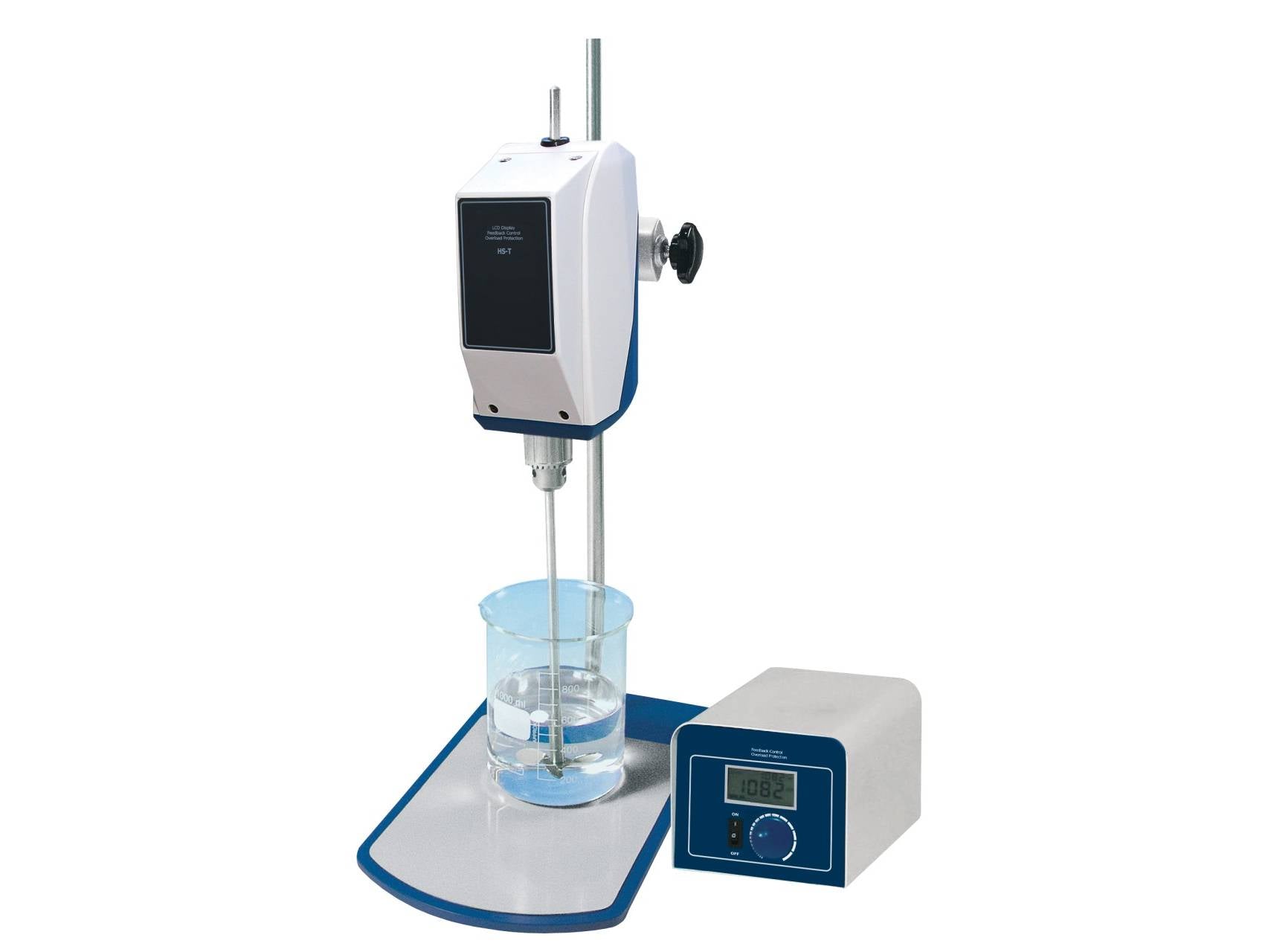

Witeg Overhead Stirrer HS-T, High-Speed, 200-3000 RPM, 5000/10000 mPas, Digital, External Controller
SKU: DH.WOS01075
Witeg Overhead Stirrer HS-T, High-Speed, 200-3000 RPM, 5000/10000 mPas, Digital, External Controller
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- All mixing applications in the laboratory
- Specialized for light watery solutions up to high-viscosity fluids
- Convenient for applications where remote control is needed
Features:
- Maximal 40 / 60 liter
- 50 - 1,000 rpm
- Maximal viscosity 100,000 / 150,000 mPas
- Worm-geared motor (ratio 3.5:1)
- Digital LCD display
- Smooth start and change of stirring speed while operation
- Storage function for timer and speed
- Impeller height adjustable

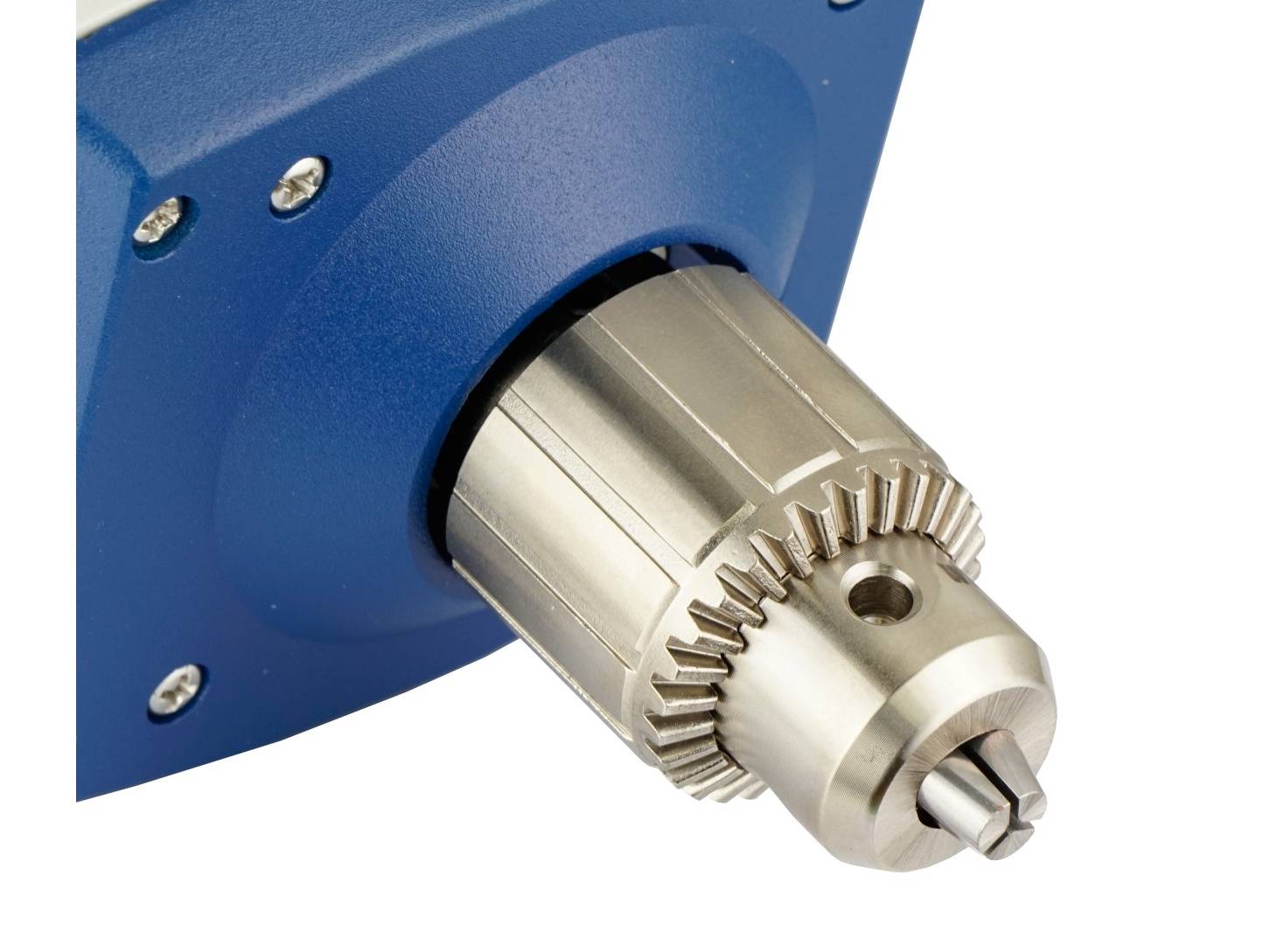

- Chrome-plated stainless steel chuck
- CE certified and unique serial number for tracing
Safety mechanism:
- Timer 99h 59min with timer-end signal
- Error status
- Locking mode
- Overload protection
- Overheat protection
- Operation LEDs
Controller:
- Jog-Shuttle remote controller with touch-button
Features:
- Powerful DC motor for various stirring applications (direct-driven or worm-geared)
- The worm-geared motor ensures high-torque at all recommended viscosities
- Digital feedback controller
- Steady and constant stirring speed
- Chrome-plated stainless steel chuck to prevent corrosion
- Anti-trembling system - the impeller is fixed at two points within the body and chuck
- Adjustable impeller position (height)
- Motor overload and overheat protection for highest safety and long lifetime
- Available as set with impeller, plate stand and clamp
- Many different impellers and plate stands available
- The impeller is fixed at two points within the body to ensure smooth operation without trembling
Technical data
|
Version |
High-torque |
|
Length (outer)
|
180 mm |
|
Material |
ABS & Aluminium |
|
Controller |
Digital, remote |
|
Moisture range |
80% RH |
|
Weight |
3.5 kg |
|
Capacity |
max. 40 l |
|
Temperature range |
Ambient temperature +0°C - 40°C |
|
Viscosity (mPas) |
max. 100000 mPas |
|
Width (Outer) |
155 mm |
|
Height (outer) |
110 mm |
|
Ideal for |
All mixing applications in the laboratory, specialized for light watery solutions up to high-viscosity fluids, convenient for applications where remote control is needed |
|
Torque |
300 N cm at chuck |
|
Speed |
50 - 1000 rpm |
|
Weight with packaging |
5 kg |
|
Stirrer diameter |
Shafts Ø10 mm or less |
|
Packing size |
580 x 340 x h230 mm |
Comparison
| SKU | Model | Version | Width (Outer) | Length (outer) | Height (outer) | Material | Ideal for | Controller | Torque |
|---|---|---|---|---|---|---|---|---|---|
| DH.WOS01076 | HT-120T set 230 V | High-torque | 155 mm | 230 mm | 110 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for light watery solutions up to high-viscosity fluids, convenient for applications where remote control is needed | Digital, remote | 210 Ncm at chuck |
| DH.WOS01075 | HT-120T unit 230 V | High-torque | 155 mm | 230 mm | 110 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for light watery solutions up to high-viscosity fluids, convenient for applications where remote control is needed | Digital, remote | 210 Ncm at chuck |
| DH.WOS01066 | HT-50T set 230 V | High-torque | 155 mm | 180 mm | 110 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for light watery solutions up to high-viscosity fluids, convenient for applications where remote control is needed | Digital, remote | 180 Ncm at chuck |
| DH.WOS01065 | HT-50T unit 230 V | High-torque | 155 mm | 180 mm | 110 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for light watery solutions up to high-viscosity fluids, convenient for applications where remote control is needed | Digital, remote | 300 N cm at chuck |
