Witeg Overhead Stirrer HS-T, High-Speed, 200-3000 RPM, 5000/10000 mPas, Digital, External Controller
SKU: DH.WOS01035
Witeg Overhead Stirrer HS-T, High-Speed, 200-3000 RPM, 5000/10000 mPas, Digital, External Controller
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- All mixing applications in the laboratory
- Specialized for low- to medium-viscosity materials
- Convenient for applications where remote control is needed
Features:
- Maximal 10 / 20 liter
- 200 - 3,000 rpm
- Maximal viscosity 5,000 / 10,000 mPas
- Direct driven motor
- Digital LCD display on remote controller
- Smooth start and change of stirring speed while operation
- Storage function for timer and speed
- Impeller height adjustable

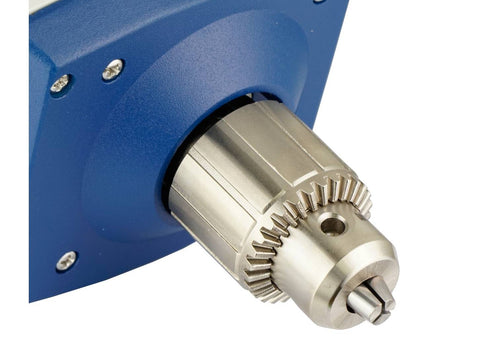

- Chrome-plated stainless steel chuck
- CE certified and unique serial number for tracing
Safety mechanism:
- Timer 99h 59min with timer-end signal
- Error status
- Locking mode
- Overload protection
- Overheat protection
- Operation LEDs
Controller:
- Jog-Shuttle remote controller with touch-button
Features
- Powerful DC motor for various stirring applications (direct-driven or worm-geared)
- The direct driven motor ensures high-speed at all recommended viscosities
- Digital feedback controller
- Dteady and constant stirring speed
- Chrome-plated stainless steel chuck to prevent corrosion
- Anti-trembling system - the impeller is fixed at two points within the body and chuck
- Sdjustable impeller position (height)
- Steady and constant stirring speed
- Chrome-plated stainless steel chuck to prevent corrosion
- Snti-trembling system - the impeller is fixed at two points within the body and chuck
- Sdjustable impeller position (height)
- The impeller is fixed at two points within the body to ensure smooth operation without trembling
Devices with 230 V power supply can also be supplied with 120 V on request.
Technical data
|
Version |
High-speed |
|
Length (outer) |
100 mm |
|
Material |
ABS & Aluminium |
|
Controller |
Digital, remote |
|
Moisture range |
80% RH |
|
Weight |
3 kg |
|
Capacity |
max. 10 l |
|
Temperature range |
Ambient temperature +0°C - 40°C |
|
Viscosity (mPas) |
max. 5000 mPas |
|
Width (Outer) |
90 mm |
|
Height (outer) |
180 mm |
|
Ideal for |
All mixing applications in the laboratory, specialized for low- to medium-viscosity materials, convenient for applications where remote control is needed |
|
Torque |
70 Ncm at chuck |
|
Speed |
200 - 3000 rpm |
|
Weight with packaging |
5 kg |
|
Stirrer diameter |
Shafts Ø8 mm or less |
|
Packing size |
580 x 340 x h230 mm |
Comparison
| SKU | Model | Version | Width (Outer) | Length (outer) | Height (outer) | Material | Ideal for | Controller | Torque |
| DH.WOS01035 | HS-30T unit 230 V | High-speed | 90 mm | 100 mm | 180 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for low- to medium-viscosity materials, convenient for applications where remote control is needed | Digital, remote | 70 Ncm at chuck |
| DH.WOS01036 | HS-30T set 230 V | High-speed | 90 mm | 100 mm | 180 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for low- to medium-viscosity materials, convenient for applications where remote control is needed | Digital, remote | 70 Ncm at chuck |
| DH.WOS01045 | HS-100T unit 230 V | High-speed | 90 mm | 100 mm | 180 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for low- to medium-viscosity materials, convenient for applications where remote control is needed | Digital, remote | 80 N cm at chuck |
| DH.WOS01046 | HS-100T set 230 V | High-speed | 90 mm | 100 mm | 180 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for low- to medium-viscosity materials, convenient for applications where remote control is needed | Digital, remote | 80 Ncm at chuck |
| SKU | Moisture range | Speed | Weight | Weight with packaging | Capacity | Stirrer diameter | Temperature range | Packing size | Viscosity (mPas) |
| DH.WOS01035 | 80% RH | 200 - 3000 rpm | 3 kg | 5 kg | max. 10 l | Shafts Ø8 mm or less | Ambient temperature +0°C - 40°C | 580 x 340 x h230 mm | max. 5000 mPas |
| DH.WOS01036 | 80% RH | 200 - 3000 rpm | 3 kg | 5 kg | max. 10 l | Shafts Ø8 mm or less | Ambient temperature +0°C - 40°C | 580 x 340 x h230 mm | max. 5000 mPas |
| DH.WOS01045 | 80% RH | 200 - 3000 rpm | 3,8 kg | 8 kg | max. 20 l | Shafts Ø8 mm or less | Ambient temperature +0°C - 40°C | 580 x 340 x h230 mm | max. 10000 mPas |
| DH.WOS01046 | 80% RH | 200 - 3000 rpm | 3,8 kg | 8 kg | max. 20 l | Shafts Ø8 mm or less | Ambient temperature +0°C - 40°C | 580 x 340 x h230 mm | max. 10000 mPas |
