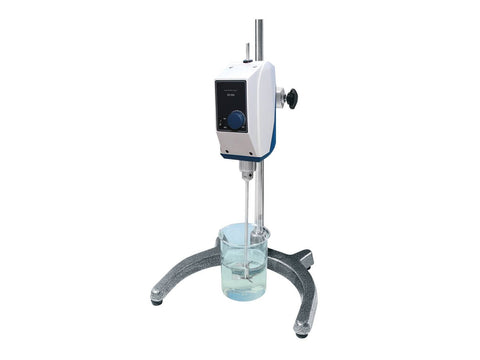

Witeg Overhead Stirrer HS-A High-Speed 200-3000 RPM 5000/10000 mPas Analog Internal controller
SKU: DH.WOS01210
Witeg Overhead Stirrer HS-A High-Speed 200-3000 RPM 5000/10000 mPas Analog Internal controller
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- All mixing applications in the laboratory
- Specialized for low- to medium-viscosity materials
Features:
- Powerful DC motor for various stirring applications (direct-driven or worm-geared)
- The direct driven motor ensures high-speed at all recommended viscosities
- Digital feedback controller
- Steady and constant stirring speed

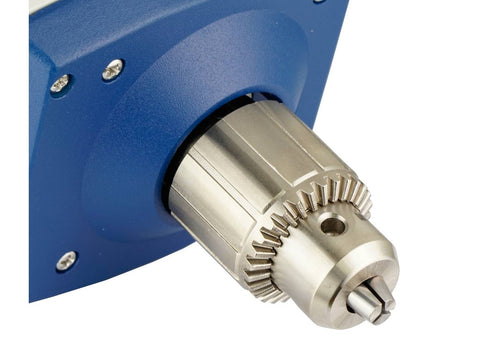

- Chrome-plated stainless steel chuck to prevent corrosion
- Anti-trembling system - the impeller is fixed at two points within the body and chuck
- Adjustable impeller position (height)
- steady and constant stirring speed
- Chrome-plated stainless steel chuck to prevent corrosion
- Anti-trembling system - the impeller is fixed at two points within the body and chuck
- Adjustable impeller position (height)
- The impeller is fixed at two points within the body to ensure smooth operation without trembling
Features:
- Maximal 10 / 20 liter
- 200 - 3,000 rpm
- Maximal viscosity 5,000 / 10,000 mPas
- Direct driven motor
- Smooth start and change of stirring speed while operation
- Impeller height adjustable
- Chrome-plated stainless steel chuck
- CE certified and unique serial number for tracing
Safety mechanism:
- Overheat protection
Controller:
- Analog phase controller with control knob
Devices with 230 V power supply can also be supplied with 120 V on request.
Technical data
| Version | High-speed |
| Length (outer) | 145 mm |
| Material | ABS & Aluminium |
| Controller | Analog, integrated |
| Moisture range | 80% RH |
| Weight | 4,5 kg |
| Capacity | max. 10 l |
| Temperature range | Ambient temperature +0°C - 40°C |
| Viscosity (mPas) | max. 5000 mPas |
| Width (Outer) | 90 mm |
| Height (outer) | 180 mm |
| Ideal for | All mixing applications in the laboratory, specialized for low- to medium-viscosity materials |
| Torque | 70 Ncm at chuck |
| Speed | 200 - 3000 rpm |
| Weight with packaging | 5 kg |
| Stirrer diameter | Shafts Ø8 mm or less |
| Packing size | 320 x 300 x h180 mm |
Comparison
| SKU | Model | Version | Width (Outer) | Length (outer) | Height (outer) | Material | Ideal for | Controller | Torque |
| DH.WOS01210 | HS-50A unit 230 V | High-speed | 90 mm | 145 mm | 180 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for low- to medium-viscosity materials | Analog, integrated | 70 Ncm at chuck |
| DH.WOS01211 | HS-50A set 230 V | High-speed | 90 mm | 145 mm | 180 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for low- to medium-viscosity materials | Analog, integrated | 70 Ncm at chuck |
| DH.WOS01215 | HS-120A unit 230 V | High-speed | 90 mm | 145 mm | 180 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for low- to medium-viscosity materials | Analog, integrated | 80 Ncm at chuck |
| DH.WOS01216 | HS-120A set 230 V | High-speed | 90 mm | 145 mm | 180 mm | ABS & Aluminium | All mixing applications in the laboratory, specialized for low- to medium-viscosity materials | Analog, integrated | 80 Ncm at chuck |
| SKU | Moisture range | Speed | Weight | Weight with packaging | Capacity | Stirrer diameter | Temperature range | Packing size | Viscosity (mPas) |
| DH.WOS01210 | 80% RH | 200 - 3000 rpm | 4,5 kg | 5 kg | max. 10 l | Shafts Ø8 mm or less | Ambient temperature +0°C - 40°C | 320 x 300 x h180 mm | max. 5000 mPas |
| DH.WOS01211 | 80% RH | 200 - 3000 rpm | 4,5 kg | 5 kg | max. 10 l | Shafts Ø8 mm or less | Ambient temperature +0°C - 40°C | 320 x 300 x h180 mm | max. 5000 mPas |
| DH.WOS01215 | 80% RH | 200 - 3000 rpm | 5,3 kg | 8 kg | max. 20 l | Shafts Ø8 mm or less | Ambient temperature +0°C - 40°C | 320 x 300 x h180 mm | max. 10000 mPas |
| DH.WOS01216 | 80% RH | 200 - 3000 rpm | 5,3 kg | 8 kg | max. 20 l | Shafts Ø8 mm or less | Ambient temperature +0°C - 40°C | 320 x 300 x h180 mm | max. 10000 mPas |
