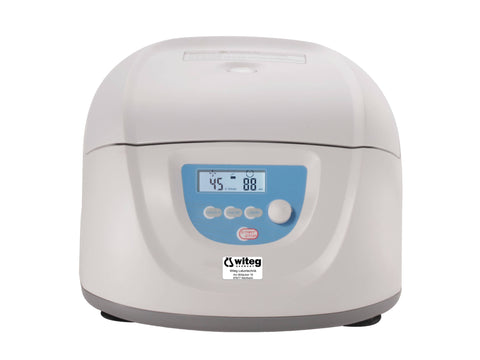

Witeg Low Speed Centrifuge CF4500 and CF4550, 300-4500 RPM
SKU: 6 000 190
Witeg Low Speed Centrifuge CF4500 and CF4550, 300-4500 RPM
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- Separation of whole blood components such as serum, plasma, buffy coat, red blood cells, as well as other bodily fluids
Features:
- Easy operation with intuitive menu and easy-to-read display
- Speed can be set in rpm/RCF
- Maintenance-free brushless DC motor
- Quick spin function with press and hold pulse key
- Lid with electric lock and automatic lid-lock release after running
- Braking time 2 steps adjustable only for CF6-50P rotor
- High strength plastic rotor gives excellent balance to guarantee stable working
- Dual protection housing for particularly safe running
- Gentle braking at low speeds with efficient separation
- speed/RCF switch
- Short-time run function
- Sound-alert function
- CE marked, cTÜVus and passed explosion-proof test
Safety devices:
- Door interlock
- Over speed detector
- Automatic internal diagnosis
Technical data
|
Version |
Max. RCF 2490xg |
|
Length (outer) |
304 mm |
|
Power supply |
single-phase,100V-240V, 50Hz/60Hz, 3A70W |
|
Rotor |
CF12-10P |
|
Width (Outer) |
354 mm |
|
Height (outer) |
215 mm |
|
Speed |
300-4500 rpm, increment: 100 rpm, accuracy ±20 rpm, Acceleration/Braking time: 20s↑ 13s↓ |
Comparison
| SKU | Model | Version | Width (Outer) | Length (outer) | Height (outer) | Power supply | Speed | Rotor |
|---|---|---|---|---|---|---|---|---|
| 6 000 190 | CF4500 | Max. RCF 2490xg | 354 mm | 304 mm | 215 mm | single-phase,100V-240V, 50Hz/60Hz, 3A70W | 300-4500 rpm, increment: 100 rpm, accuracy ±20 rpm, Acceleration/Braking time: 20s↑ 13s↓ | CF12-10P |
| 6 000 195 | CF4550 | Max. RCF 2490xg | 354 mm | 304 mm | 215 mm | single-phase,100V-240V, 50Hz/60Hz, 3A70W | 300-4500 rpm, increment: 100 rpm, accuracy ±20 rpm, Acceleration/Braking time: 20s↑ 20 s/190 s ↓ | CF6-50P |
