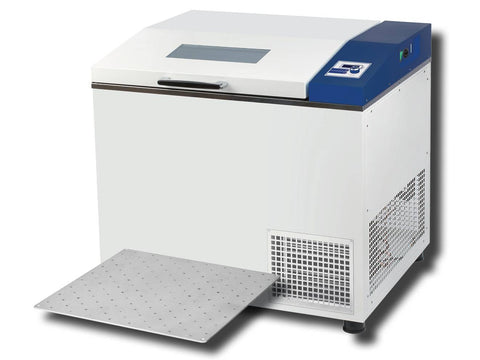

Witeg Incubators WIS-10 Shaking Incubator Top-Door Orbital Motion
SKU: DH.WIS00210
Witeg Incubators WIS-10 Shaking Incubator Top-Door Orbital Motion
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- Biological cultures under various temperatures
Features:
- CFC free refrigerant (R-404A)
- Easy access to bench top by liftable door

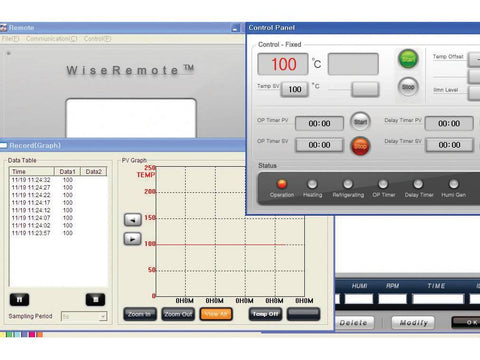

- RS232C interface for monitoring and controlling (WireRemote)
- Advanced shaking mechanism provides quiet shaking and precise speed control
- Stabilized orbital motion, minimum noise and no vibration
- 60W krypton lamp (WIS-10RL)
- Accommodates flasks up to 1000 ml
- Durable and flexible plastic flask holder (optional)
- Universal spring rack for various flask shapes/sizes (optional)
- Stainless steel interior and powder-coated body
- Backlight LCD display
- CE certified and unique serial number for tracing
Safety mechanism:
- Overheat and over-current protection
- Sensor error detection and leakage breaker
- Automatic operation stop when door opens
Controller:
- Digital fuzzy controller with Jog-Shuttle-switch (turn + push)
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Technical data
| Width (inner) | 750 mm |
| Height (inner) | 400 mm |
| Length (outer) | 900 mm |
| Weight with packaging | 231 kg |
| Capacity | 68 pcs. flask holder for 100 ml flasks, 36 pcs. flask holder for 250 ml flasks, 21 pcs. flask holder for 500 ml flasks, 18 pcs. flask holder for 1000 ml flasks |
| Shaking motion | Orbital motion |
| Shaking stroke | 25 mm |
| Temperature variation | ±0.5°C at 37°C |
| Temperature accuracy | ±0.2°C to 37°C |
| Controller | Temperature sensor PT100 |
| Length (inner) | 720 mm |
| Width (Outer) | 1065 mm |
| Height (outer) | 980 mm |
| Heating power | 800 W |
| Refrigerant | R-404A (CFC-free refrigerant) |
| Shaking speed | 30 - 250 rpm |
| Power consumption | 800 W |
| Temperature range | Room temperature +5°C - 60°C |
| Packing size | 1220 x 1060 x 1200 mm |
Comparison
| SKU | Model | Width (inner) | Length (inner) | Height (inner) | Width (Outer) | Length (outer) | Height (outer) | Illumination | Weight with packaging | Heating power | Capacity | Compressor |
| DH.WIS00210 | WIS-10 230 V | 750 mm | 720 mm | 400 mm | 1065 mm | 900 mm | 980 mm | 231 kg | 800 W | 68 pcs. flask holder for 100 ml flasks, 36 pcs. flask holder for 250 ml flasks, 21 pcs. flask holder for 500 ml flasks, 18 pcs. flask holder for 1000 ml flasks | ||
| DH.WIS04210 | WIS-10R 230 V | 750 mm | 720 mm | 400 mm | 1065 mm | 900 mm | 980 mm | 238 kg | 1000 W | 68 pcs. flask holder for 100 ml flasks, 36 pcs. flask holder for 250 ml flasks, 21 pcs. flask holder for 500 ml flasks, 18 pcs. flask holder for 1000 ml flasks | 250 W | |
| DH.WIS05210 | WIS-10RL 230 V | 750 mm | 720 mm | 400 mm | 1065 mm | 900 mm | 980 mm | Krypton lamp, 60 W | 238 kg | 1200 W | 68 pcs. flask holder for 100 ml flasks, 36 pcs. flask holder for 250 ml flasks, 21 pcs. flask holder for 500 ml flasks, 18 pcs. flask holder for 1000 ml flasks | 250 W |
| SKU | Refrigerant | Shaking motion | Shaking speed | Shaking stroke | Power consumption | Temperature variation | Temperature range | Temperature accuracy | Packing size | Controller |
| DH.WIS00210 | R-404A (CFC-free refrigerant) | Orbital motion | 30 - 250 rpm | 25 mm | 800 W | ±0.5°C at 37°C | Room temperature +5°C - 60°C | ±0.2°C to 37°C | 1220 x 1060 x 1200 mm | Temperature sensor PT100 |
| DH.WIS04210 | R-404A (CFC-free refrigerant) | Orbital motion | 30 - 250 rpm | 25 mm | 1800 W | ±0.5°C at 37°C | 10°C - 60°C (refrigerated) | ±0.2°C to 37°C | 1220 x 1060 x 1200 mm | Temperature sensor PT100 |
| DH.WIS05210 | R-404A (CFC-free refrigerant) | Orbital motion | 30 - 250 rpm | 25 mm | 2100 W | ±0.5°C at 37°C | 10°C - 60°C (refrigerated) | ±0.2°C to 37°C | 1220 x 1060 x 1200 mm | Temperature sensor PT100 |
