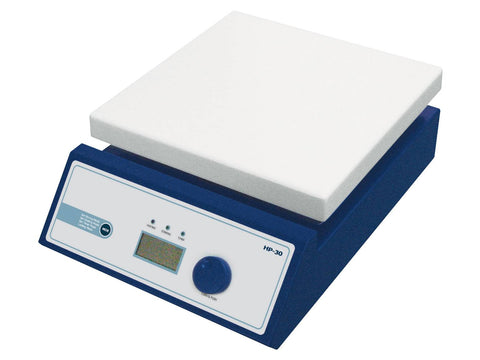

Witeg Hotplates HP-D Digital Up to 380°C
SKU: DH.WHP03020
Witeg Hotplates HP-D Digital Up to 380°C
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for
- Sample drying and general lab heating applications
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Features
- Up to 380°C
- Digital display with backlight
- Ceramic-coated aluminium plate 180x180 / 260x260 mm
- Heat-, chemical- and acid-resistant
- No liquid can get into the body
- Powder-coated body
- CE certified and unique serial number for tracing
Safety mechanism
- Timer 99h 59min with timer-end signal
- Error status
- Locking mode
- Operation LEDs
Controller
- Jog-Shuttle controller with touch-button
Technical data
| Version | Unit |
| Length (outer) | 307 mm |
| Version with filter | rectangular |
| Housing material | Powder-coated aluminium |
| Weight with packaging | 5 kg |
| Plate size | 180 x 180 mm |
| Temperature control resolution | Display 0.1°C, control 0.5°C |
| Temperature accuracy | ±0.3°C |
| Width (Outer) | 206 mm |
| Height (outer) | 99 mm |
| Controller | Digital |
| Weight | 2,8 kg |
| Heating power | 600 W |
| Plate material | Ceramic-coated aluminium |
| Temperature range with filter | 380°C |
| Packing size | 400 x 280 x h200 mm |
Comparison
| SKU | Model | Version | Width (Outer) | Length (outer) | Height (outer) | Version with filter | Controller | Housing material | Weight | Weight with packaging | Heating power | Plate size | Plate material | Temperature control resolution | Temperature range with filter | Temperature accuracy | Packing size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DH.WHP03020 | HP-20D unit 230 V | Unit | 206 mm | 307 mm | 99 mm | rectangular | Digital | Powder-coated aluminium | 2,8 kg | 5 kg | 600 W | 180 x 180 mm | Ceramic-coated aluminium | Display 0.1°C, control 0.5°C | 380°C | ±0.3°C | 400 x 280 x h200 mm |
| DH.WHP03021 | HP-20D set 230 V | Set | 206 mm | 307 mm | 99 mm | rectangular | Digital | Powder-coated aluminium | 2.8 kg | 5 kg | 600 W | 180 x 180 mm | Ceramic-coated aluminium | Display 0.1°C, control 0.5°C | 380°C | ±0.3°C | 400 x 280 x h200 mm |
| DH.WHP03022 | HP-30D unit 230 V | Unit | 286 mm | 387 mm | 99 mm | rectangular | Digital | Powder-coated steel | 3.2 kg | 5 kg | 1200 W | 260 x 260 mm | Ceramic-coated aluminium | Display 0.1°C, control 0.5°C | 380°C | ±0.3°C | 430 x 320 x h200 mm |
| DH.WHP03023 | HP-30D set 230 V | Set | 286 mm | 387 mm | 99 mm | rectangular | Digital | Powder-coated steel | 3.2 kg | 5 kg | 1200 W | 260 x 260 mm | Ceramic-coated aluminium | Display 0.1°C, control 0.5°C | 380°C | ±0.3°C | 430 x 320 x h200 mm |
