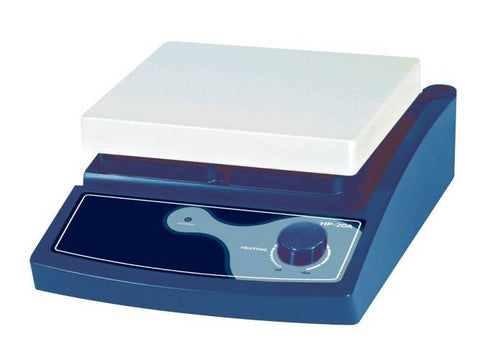

Witeg Hotplates HP-A, Analog, 70°C to 380°C
SKU: DH.WHP03120
Witeg Hotplates HP-A, Analog, 70°C to 380°C
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for
- Sample drying and general lab heating applications
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Features
- 70°C to 380°C
- Digital display with backlight
- Ceramic-coated aluminium plate 180x180 / 260x260 mm
- Heat-, chemical- and acid-resistant
- No liquid can get into the body
- Powder-coated body
- CE certified and unique serial number for tracing
Safety mechanism
- Operation LEDs
Controller
- PWM controller
Technical data
| Width (Outer) | 206 mm |
| Height (outer) | 99 mm |
| Controller | Analog |
| Weight | 2,8 kg |
| Heating power | 600 W |
| Plate material | Ceramic-coated aluminium |
| Temperature range with filter | 70°C - 380°C |
| Packing size | 400 x 280 x h200 mm |
| Length (outer) | 307 mm |
| Version with filter | rectangular |
| Housing material | Powder-coated aluminium |
| Weight with packaging | 5 kg |
| Plate size | 180 x 180 mm |
| Temperature control resolution | control 0.5°C |
| Temperature accuracy | ±0.3°C |
Comparison
| SKU | Model | Width (Outer) | Length (outer) | Height (outer) | Version with filter | Controller | Housing material | Weight | Weight with packaging | Heating power | Plate size | Plate material | Temperature control resolution | Temperature range with filter | Temperature accuracy | Packing size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DH.WHP03120 | HP-20A 230 V | 206 mm | 307 mm | 99 mm | rectangular | Analog | Powder-coated aluminium | 2,8 kg | 5 kg | 600 W | 180 x 180 mm | Ceramic-coated aluminium | control 0.5°C | 70°C - 380°C | ±0.3°C | 400 x 280 x h200 mm |
| DH.WHP03121 | HP-30A 230 V | 286 mm | 387 mm | 99 mm | rectangular | Analog | Powder-coated steel | 3,2 kg | 5 kg | 1200 W | 260 x 260 mm | Ceramic-coated aluminium | control 0.5°C | 70°C - 380°C | ±0.3°C | 430 x 320 x h200 mm |
