Witeg Baths WSB Shaking Water ath 18/30/45 Liter 100°C ±0,1°C
SKU: DH.WSB03018
Witeg Baths WSB Shaking Water ath 18/30/45 Liter 100°C ±0,1°C
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- Direct immersion of samples for shaking in the field of biotechnology and laboratories, hybridization applications, cell cultures, cell aeration, increasing solubility rates, molecular biology assays and bacterial vultures
Features:
- Stainless steel interior and bath, powder-coated steel body, double painted & baked body, 20 mm polyurethane-insulation
- High-performance shaking engine ensures best smoothly shaking motion, minimum noise and vibration

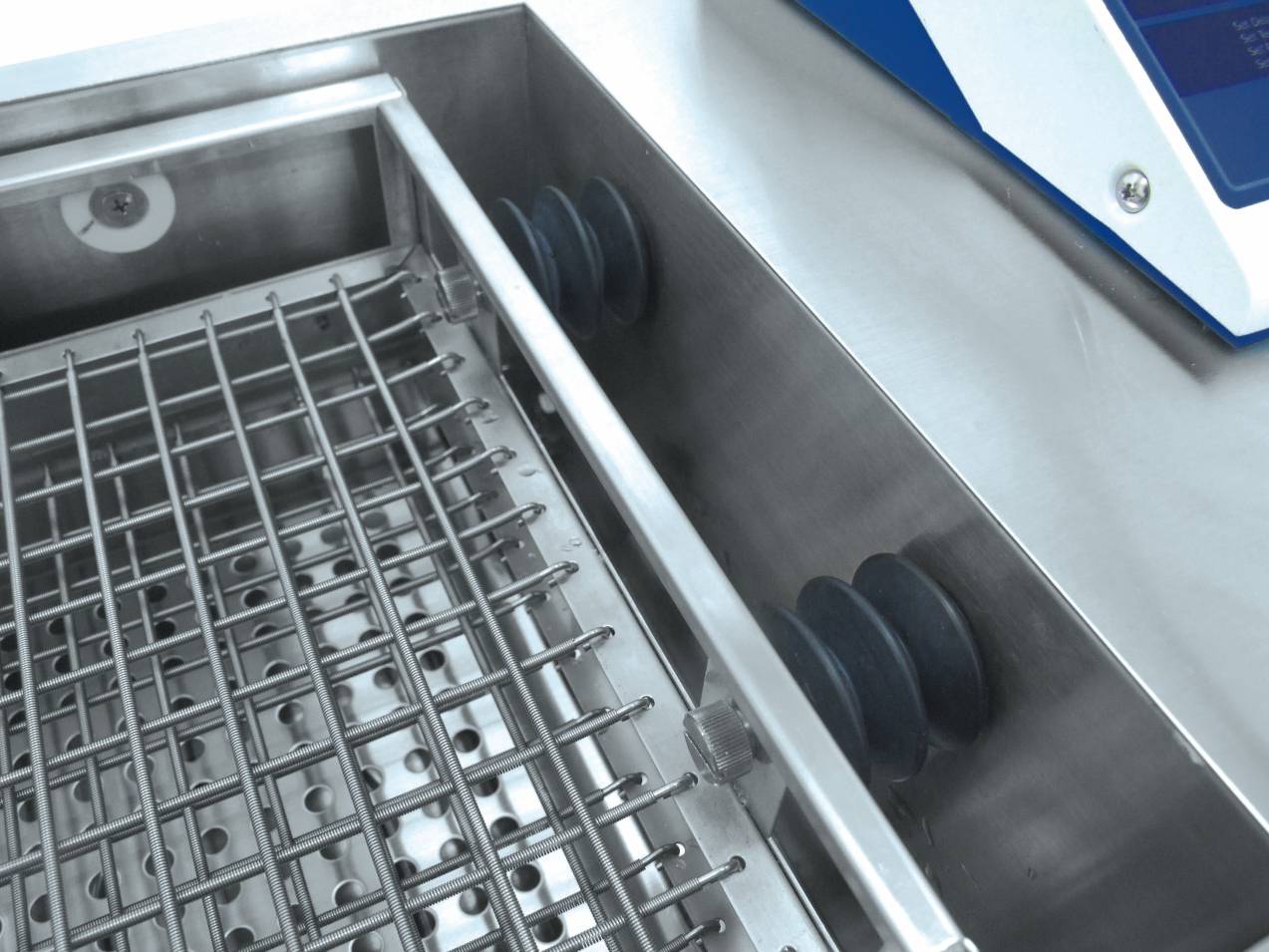

- Universal stainless steel spring rack included: for various kind of flasks and tubes (up to 2l), easy to disassemble
- User‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
- Drain valve mounted
- Backlight LCD display
- CE certified and unique serial number for tracing
Features:
Devices with 230 V power supply can also be supplied with 120 V on request.
Safety mechanism:
- overheat and over-current protection
- sensor error detection
Controller:
- Jog-Dial controller (turn + push)
- Digital feedback controller for precise speed control
- Digital fuzzy controller for precise temperature control
Technical data
| Version | max. quantity of Erlenmeyer flasks: 6 x 250 ml, 4 x 500 ml, 1 x 1000 ml |
| Length (inner) | 300 mm |
| Width (Outer) | 563 mm |
| Height (outer) | 340 mm |
| Capacity | 18 l |
| Shaking stroke | 20 mm (other strokes on request) |
| Temperature range | Room temperature +5°C - 100°C |
| Temperature accuracy | ±0.1°C |
| Controller | Temperature sensor PT100 |
| Width (inner) | 300 mm |
| Height (inner) | 200 mm |
| Length (outer) | 353 mm |
| Weight with packaging | 24 kg |
| Shaking speed | 20 - 250 rpm, 1 rpm-display, 1 rpm-control |
| Power consumption | 1400 W |
| Temperature fluctuation | ±0.5°C at -20°C |
| Packing size | 620 x 420 x 450 mm |
Comparison
| SKU | Model | Version | Width (inner) | Length (inner) | Height (inner) | Width (Outer) | Length (outer) | Height (outer) | Weight with packaging |
| DH.WSB03018 | WSB-18 230 V | max. quantity of Erlenmeyer flasks: 6 x 250 ml, 4 x 500 ml, 1 x 1000 ml | 300 mm | 300 mm | 200 mm | 563 mm | 353 mm | 340 mm | 24 kg |
| DH.WSB03030 | WSB-30 230 V | max. quantity of Erlenmeyer flasks: 10 x 250 ml, 8 x 500 ml, 3 x 1000 ml | 500 mm | 300 mm | 200 mm | 763 mm | 353 mm | 340 mm | 26 kg |
| DH.WSB03045 | WSB-45 230 V | max. quantity of Erlenmeyer flasks: 18 x 250 ml, 15 x 500 ml, 8 x 1000 ml | 600 mm | 380 mm | 200 mm | 863 mm | 433 mm | 340 mm | 32 kg |
| SKU | Capacity | Shaking speed | Shaking stroke | Power consumption | Temperature range | Temperature fluctuation | Temperature accuracy | Packing size | Controller |
| DH.WSB03018 | 18 l | 20 - 250 rpm, 1 rpm-display, 1 rpm-control | 20 mm (other strokes on request) | 1400 W | Room temperature +5°C - 100°C | ±0.5°C at -20°C | ±0.1°C | 620 x 420 x 450 mm | Temperature sensor PT100 |
| DH.WSB03030 | 30 l | 20 - 250 rpm, 1 rpm-display, 1 rpm-control | 20 mm (other strokes on request) | 1800 W | Room temperature +5°C - 100°C | ±0.5°C at -20°C | ±0.1°C | 820 x 420 x 450 mm | Temperature sensor PT100 |
| DH.WSB03045 | 45 l | 20 - 250 rpm, 1 rpm-display, 1 rpm-control | 20 mm (other strokes on request) | 2400 W | Room temperature +5°C - 100°C | ±0.5°C at -20°C | ±0.1°C | 920 x 500 x 450 mm | Temperature sensor PT100 |
