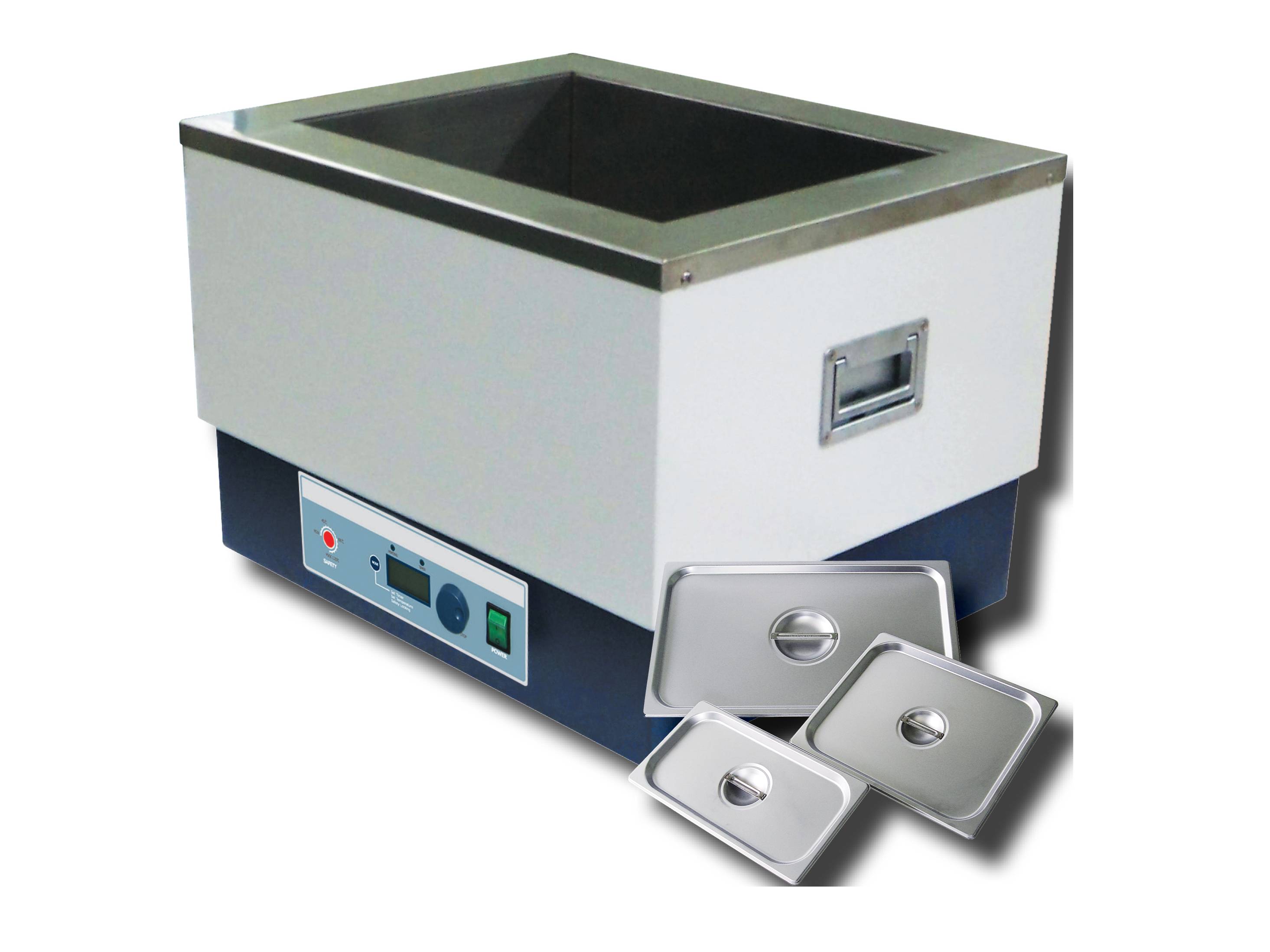

Witeg Baths WHB Oil Bath 250°C ±0.1°C
SKU: DH.WHB00106
Witeg Baths WHB Oil Bath 250°C ±0.1°C
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for
- Oil bath for general purpose with high temperature
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Features
- User‘s self-compensation function to control difference between real temperature And indicated temperature
- Stainless steel bath & lid for superior durability & high thermal efficiency / consistency
- Digital timer function (99hr 59min): delay time and operation time can be controlled
- Storage function for the set values of temperature and timer
- Backlight LCD display
- CE-certified and unique serial number for tracing
Safety mechanism
- Locking mode
- Over- temperature and over-current protection
- Sensor error protection
Controller
- Digital fuzzy controller with Jog-Shuttle-switch (turn + push)
Technical data
| SKU | DH.WHB00106 | DH.WHB00111 | DH.WHB00122 |
| Model | WHB-6 230 V | WHB-11 230 V | WHB-22 230 V |
| Width (inner) | 270 mm | 300 mm | 400 mm |
| Length (inner) | 180 mm | 250 mm | 300 mm |
| Height (inner) | 150 mm | 150 mm | 180 mm |
| Width (Outer) | 425 mm | 425 mm | 525 mm |
| Length (outer) | 305 mm | 490 mm | 490 mm |
| Height (outer) | 340 mm | 340 mm | 370 mm |
| Drain valve | mounted | mounted | mounted |
| Weight with packaging | 23 kg | 25 kg | 39 kg |
| Capacity | 6 l | 11 l | 22 l |
| Effective space | 270 x 170 x 110 mm | 300 x 250 x 110 mm | 400 x 300 x 140mm |
| Power consumption | 1500 W | 2000 W | 2500 W |
| Temperature control resolution | Display 0.1°C, control 0.1°C | Display 0.1°C, control 0.1°C | Display 0.1°C, control 0.1°C |
| Temperature range | Room temperature +5°C - 250°C | Room temperature +5°C - 250°C | Room temperature +5°C - 250°C |
| Temperature fluctuation | ±3.0°C | ±3.0°C | ±3.0°C |
| Temperature accuracy | ±0.1°C | ±0.1°C | ±0.1°C |
| Packing size | 470 x 400 x 500 mm | 600 x 490 x 500 mm | 601 x 490 x 500 mm |
| Controller | Temperature sensor PT100 | Temperature sensor PT100 | Temperature sensor PT101 |
