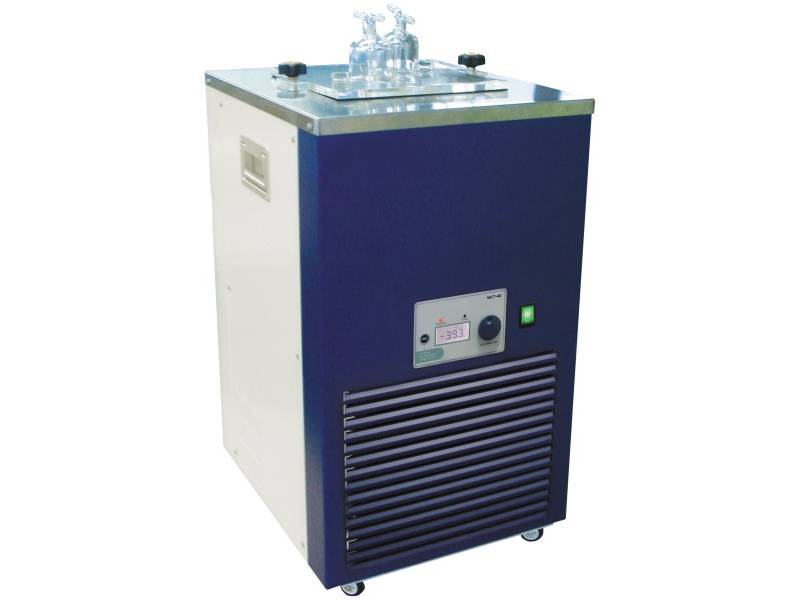

Witeg Baths WCT Cold trap bath 10 Liter -40°C/-80°C
SKU: DH.WCT00140
Witeg Baths WCT Cold trap bath 10 Liter -40°C/-80°C
Buy Witeg products from MSE Supplies at the best value.
Description
Ideal for:
- Collecting evaporation vapor or hazardous vapor from vacuum line
Features:
- Stainless steel bath
- Powder-coated steel, double painted & baked, 20 mm polyurethane-insulation
- Digital timer function (99hr 59min): delay time and operation time can be controlled
- User‘s self-compensation function to control difference between real temperature and indicated temperature
- Drain valve mounted
- Backlight LCD display
- CE certified and unique serial number for tracing
Safety mechanism:
- Over-current protection
- sensor error detection and leakage breaker
- Locking mode
Controller:
- Digital PID controller with Jog-Shuttle-switch (turn + push)
Features
Devices with 230 V power supply can also be supplied with 120 V on request.
Technical data
|
Version |

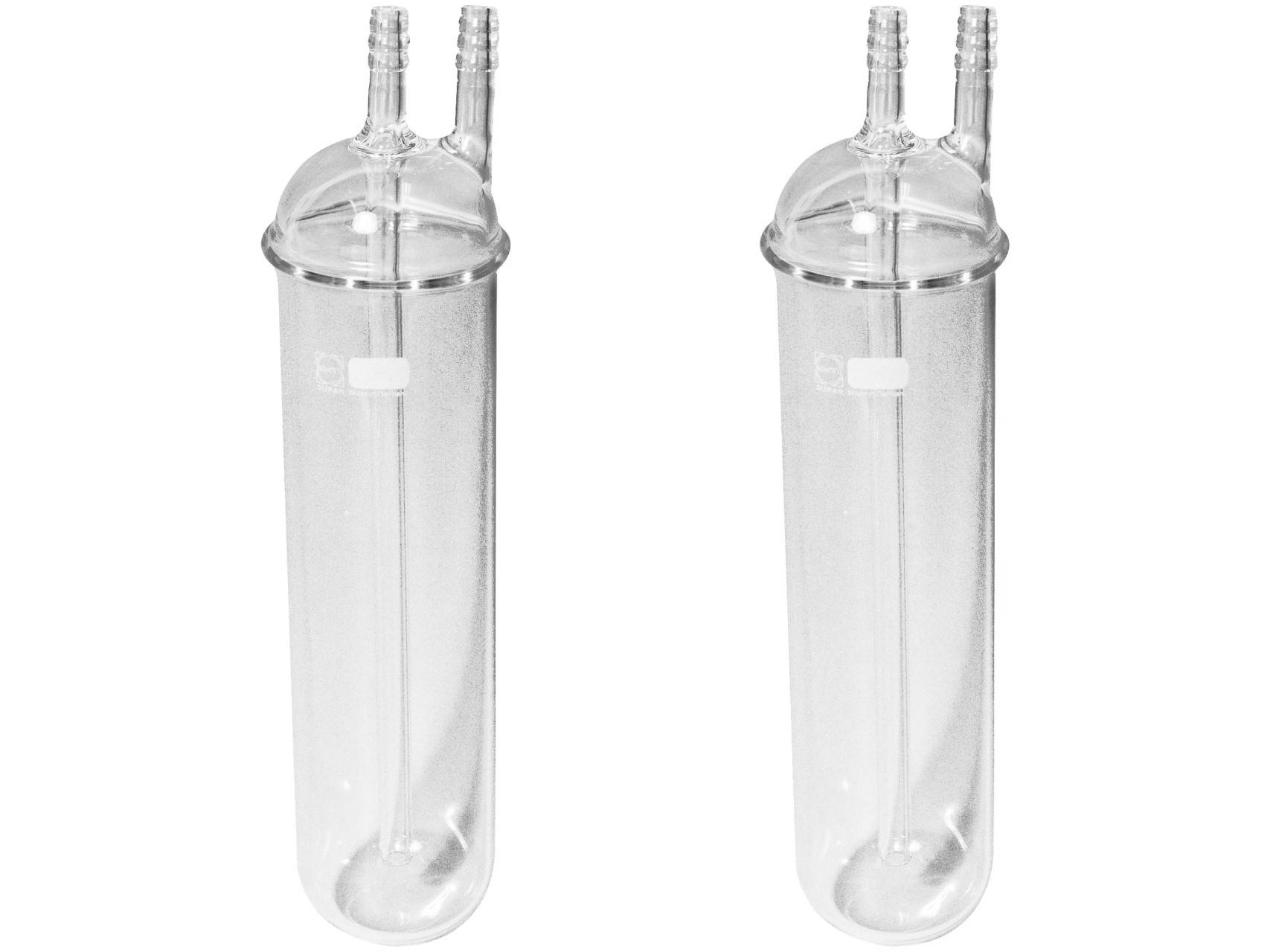

2 glass cold trap |
|
Length (inner) |
220 mm |
|
Width (Outer) |
377 mm |
|
Height (outer) |
705 mm |
|
Weight with packaging |
67 kg |
|
Refrigerant |
R-404A (CFC-free refrigerant) |
|
Packing size |
560 x 550 x 1010 mm |
|
Width (inner) |
220 mm |
|
Height (inner) |
210 mm |
|
Length (outer) |
453 mm |
|
Ideal for |
Collecting evaporation vapor or hazardous vapor from vacuum line |
|
Capacity |
10 l |
|
Temperature range |
-20°C up to -40°C |
|
Refrigerator |
370 W |
Comparison
| SKU | Model | Version | Width (inner) | Length (inner) | Height (inner) | Width (Outer) | Length (outer) | Height (outer) |
| DH.WCT00140 | WCT-40 230 V | 2 glass cold trap | 220 mm | 220 mm | 210 mm | 377 mm | 453 mm | 705 mm |
| DH.WCT00180 | WCT-80 230 V | 2 glass cold trap | 220 mm | 220 mm | 210 mm | 377 mm | 453 mm | 705 mm |
| SKU | Ideal for | Weight with packaging | Capacity | Refrigerant | Temperature range | Packing size | Refrigerator |
| DH.WCT00140 | Collecting evaporation vapor or hazardous vapor from vacuum line | 67 kg | 10 l | R-404A (CFC-free refrigerant) | -20°C up to -40°C | 560 x 550 x 1010 mm | 370 W |
| DH.WCT00180 | Collecting evaporation vapor or hazardous vapor from vacuum line | 90 kg | 10 l | Mixture of R1270, R14, R134A, R404A, R508A | -65°C up to -80°C | 680 x 640 x 1130 mm | 750 W |
