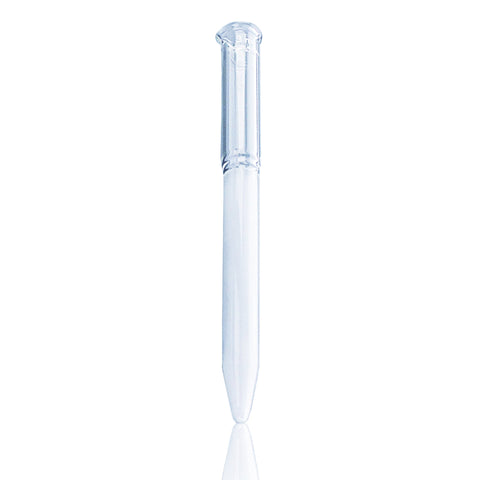

WHEATON® Replacement Tube for Tapered Tissue Grinder

WHEATON® Replacement Tube for Tapered Tissue Grinder

Buy DWK Life Sciences products from MSE Supplies at the best value.

Tissue grinders produce homogenates by a combination of shearing and compression actions. The tissue sample is progressively ground (sheared) into smaller pieces at the rounded end of the pestle as the spinning pestle is lowered into the tube. As the pestle is forced lower into the tube, the sample is displaced and forced between the straight outside wall of the pestle and the inside wall of the tube, compressing the tissue cells until they rupture. When the tube is pulled away from the pestle, a slight vacuum is created that pulls the sample back past the compression area, resulting in an additional homogenization stroke. The degree of homogenization is controlled by the clearance between the pestle’s and tube’s cylindrical section (radial distance usually 0.002 - 0.003 inches), the rotational speed of the pestle, and the number of compression strokes made.

• Manufactured from borosilicate glass 3.3
• Grinding efficiency is improved and less time is required as compared to the Tenbroeck and Potter-Elvehjem designs
• Components are interchangeably ground eliminating need to keep parts matched during cleaning
• Unit can be autoclaved / sterilized to prevent cross contamination between samples
• Pestle clearance range: 0.1 – 0.15mm
