Welch 22.1 CFM CRVPro 30 Direct Drive Rotary Vane Vacuum Pump - MSE Supplies LLC

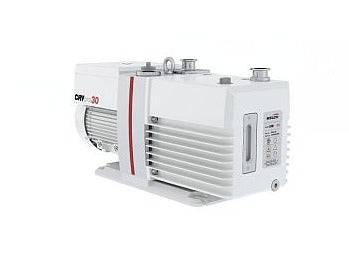

Welch 22.1 CFM CRVPro 30 Direct Drive Rotary Vane Vacuum Pump

  • $ 7,58395

Buy Welch vacuum pumps from MSE Supplies at the best value.

The new Welch CRVpro family of direct drive vacuum pumps offers increased reliability and longer service interval vs. other direct drive rotary vane vacuum pumps. The CRVpro family consumes up to 36% less oil than comparable pumps. Three features drive these benefits:

  • Runs 10°C cooler than comparable pumps. Slows corrosion.
  • Has a 40% larger oil capacity than comparable pumps. Dilutes aggressive chemicals.
  • Has a chemical resistant coating in the oil case and pump module. Protects non-moving parts.

Additional Key Features

Low Noise Level

  • Exceptionally quiet for undisturbed work.

Forced Oil Lubrication

  • Ensures moving parts are bathed in fresh oil. Equilibrates temperature, minimizes oil breakdown, and prolongs mechanical life.

Anti- Suck Back Valve

  • Prevents oil from being sucked into application in the event of a power failure

Gas Ballast

  • Minimizes entrained chemicals in pump oil. Protects pump from condensable liquids from application such as water, acetyl nitrile, etc.

cUL and CE Certification

  • Compliance with local regulations and safety directives for safety operation.

Sized to fit your application

  • Modern and compact design to fit different applications and performance requirements.

Dual Voltage Motor

  • Dual voltage motors meet IP44 standard.

MSE Supplies is an authorized distributor of Welch vacuum pumps.

The CRVpro family includes all the features you'd expect in a direct drive rotary vane pump: gas ballast, forced oil lubrication, anti-suck back mechanism and thermal overload protection.

CRVpro 30 vacuum pumps can be used for freeze drying, vacuum ovens, HVAC/refrigeration service, coaters, backing diffusion pumps and turbo molecular pumps, short path, wiped film, metallurgy/vacuum furnaces, lamp manufacture, space simulation, degassing, vessel/chamber evacuation. CRVpro vacuum pumps prepared with perfluoropolyether(PFPE) for oxygen service are available. Pumps with explosion proof motors are also available.

50 Hz (m3h / I/min) 33.1 / 551
60 Hz (CFM / I/min) 22.1 / 627
Without gas ballast (mbar / Torr) 3x10-4 / 2x10-4
Without gas ballast total (mbar / Torr) 3x10-3 / 2x10-3
With gas ballast total 6x10-3 / 5x10-3
Connection flanges (NW) 25
Hose Connection, inlet ID tubing (in / mm) 3/4" / 19
Ambient temperature (°C) 10-40
Noise level (50 Hz) dB (A) 55
Oil capacity (ml) 2100
Motor speed (rpm 50 / 60 Hz) 1450 / 1750
Motor power (kW 50 / 60 Hz) 0.7 / 0.85
Weight (kg / lbs.) 39.5 / 87

3301-01 (MSE SKU# V0026) is wired for North American 115V, 60Hz operation. Includes North American line cord, vacuum inlet hose barb suitable for gum rubber hose of 3/4" ID, and a charge of oil.

3302-01 (MSE SKU# V0027) is wired for European 230V, 50Hz operation. Includes 230V North American line cord, UK cord, skuko cord, vacuum inlet hose barb suitable for gum rubber hose with 3/4" ID, and a charge of oil.

Direct drive pumps are not recommended for filtration, aspiration, drying electrophoresis gels, or other applications requiring sustained operation above 30 torr.

Additional information found here
