Welch 2067 High Capacity 7.8 cfm Chemical Duty PTFE Diaphragm Vacuum Pump - MSE Supplies LLC

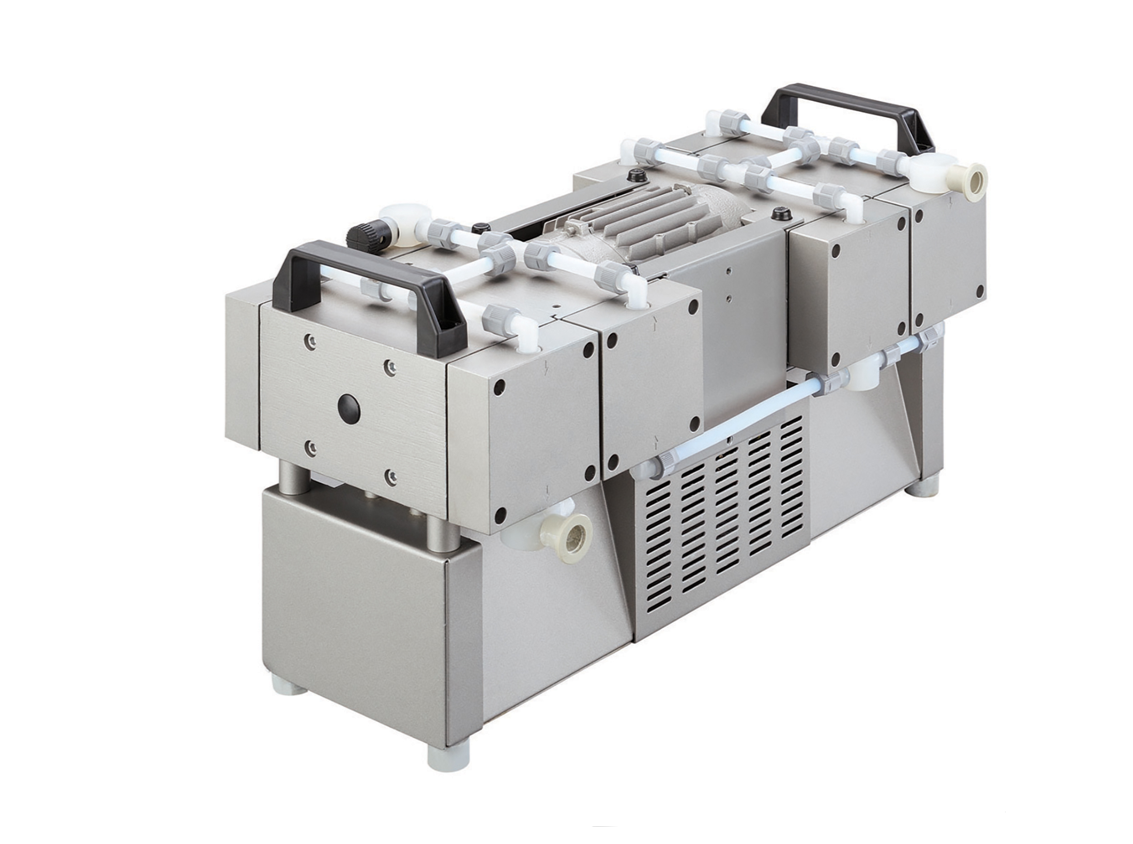

Welch 2067 High Capacity 7.8 cfm Chemical Duty PTFE Diaphragm Vacuum Pump

  • $ 7,79688


Buy Welch vacuum pumps from MSE Supplies at the best value.

Welch 2067 High Capacity 7.8 cfm Chemical Duty PTFE Diaphragm Vacuum Pump can be used for vacuum degassing, vacuum impregnation, rotary evaporators, vacuum ovens, vacuum filtering, solid phase extraction, falling film evaporators, rough vacuum distillations, gas recycling, leak detection, gas sampling and many other laboratory and industrial applications.

Constructed with solid PTFE heads, PTFE diaphragms, gas ballast valves and utilizing fluorinated plastics and PTFE on all wetted surfaces, Welch dry vacuum pump is designed to meet your ever-challenging chemical duty laboratory needs.

It has unique features such as:

• High flow / Deep Vacuum

• Long product life

• Low noise level

• Simple Maintenance

• Supplied with TEFC motors

• Oil-free operation

MSE Supplies is an authorized distributor of Welch vacuum pumps.

Additional information found here

SKU# 2067B-01
Welch Model 2067
Free Air Displacement @60Hz, cfm (L/min) 7.8 (221)
Maximum Vacuum, in. Hg 29.7
Ult. Vac. Pressure, Torr 6
Motor Horsepower, HP (watts) 0.6 (440)
Head Material PTFE
Diaphragm Flat PTFE-coated
Valves PEEK
Advanced Vapor Management (AVM) No
Gas Ballast Yes
Tubing Needed, I.D. in. (Inlet/Exhaust) w/ 1/4" in. hose connector
Intake (Exhaust) Thread NPT NW16 - 1/4" NPT
Weight, lbs. 72.3
Overall Dimensions LxWxH in. 21 x 11 x 12
Power 115V, 1ph 50/60Hz
Ship Weight, lbs 88.2
