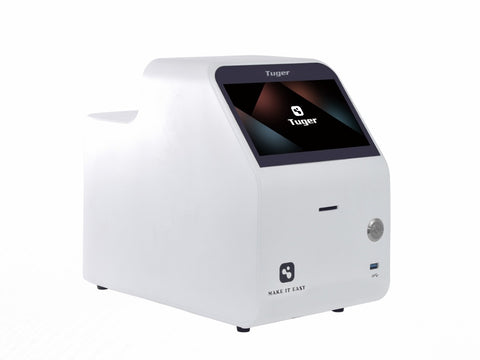

Tuger Fluorescence Cell Analyzer
SKU: Tuger
Tuger Fluorescence Cell Analyzer
Buy Newtonoptic products from MSE Supplies at the best value.
The Tuger Fluorescence Cell Analyzer is a cutting-edge, automated cell analysis system designed for modern laboratories. Combining bright-field microscopy with dual-fluorescence detection, it delivers rapid, high-precision cell counting, viability analysis, and transfection efficiency assessment. With AI-powered auto-focusing, multi-channel sampling, and FDA 21 CFR Part 11 compliance, Tuger streamlines workflows while ensuring data integrity—ideal for cell biology, drug development, and clinical research.
-
Ultra-Fast Analysis: Completes fluorescence analysis in 4 seconds per field, processing 6 samples in just 2 minutes - 10x faster than manual methods.
-
Dual-Fluorescence Detection: 475nm & 546nm excitation with 530nm & 600nm emission channels for versatile applications like AO/PI staining and GFP transfection.
-
Auto-Focus Precision: Patented auto-focus technology ensures sharp images with 5 fields analyzed per sample for statistically reliable results.
-
Broad Cell Compatibility: Handles 1×10⁴–2.5×10⁷ cells/mL concentrations and 5–250μm cell sizes, covering most research needs.
-
Regulatory Ready: FDA 21 CFR Part 11 compliant with audit trails, e-signatures, and encrypted data for full traceability.
-
User-Friendly Workflow: One-click operation with intuitive touchscreen. Outputs JPG/PDF/CSV/FCS formats for easy data sharing.
MSE Supplies offers a variety of Fluorescence Cell Analyzers. Please contact us for more information.
Specifications:
| Concentration Range | 1×10⁴ – 3×10⁷ cells/mL |
| Diameter Range | 5 – 200μm |
| Viability Range | 0 – 100% |
| Sample Volume | 10μL (GPC100/GR100) / 20μL (GPC200/GR200) |
| Single Sample Analysis Time (1 view) | Bright field: <1 second; Fluorescence (AO/PI): <12 seconds |
| Single Sample Analysis Time (5 views) | Bright field: <8 seconds; Fluorescence (AO/PI): <54 seconds |
| Six Samples Analysis Time (5 views) | Bright field: <55 seconds; Fluorescence (AO/PI): <334 seconds |
| Excitation Wavelength | 475nm, 545nm |
| Emission Wavelength | 530nm, 605nm |
| Fluorescent Light Source | Blue LED / Green LED |
| Bright Field Light Source | White LED |
| Output Formats | JPG, PDF, CSV, FCS (optional) |
| Weight | 4.4kg |
| Power Supply | 110V/60Hz |
| Dimensions (W x D x H) | 190mm × 276mm × 367mm |
