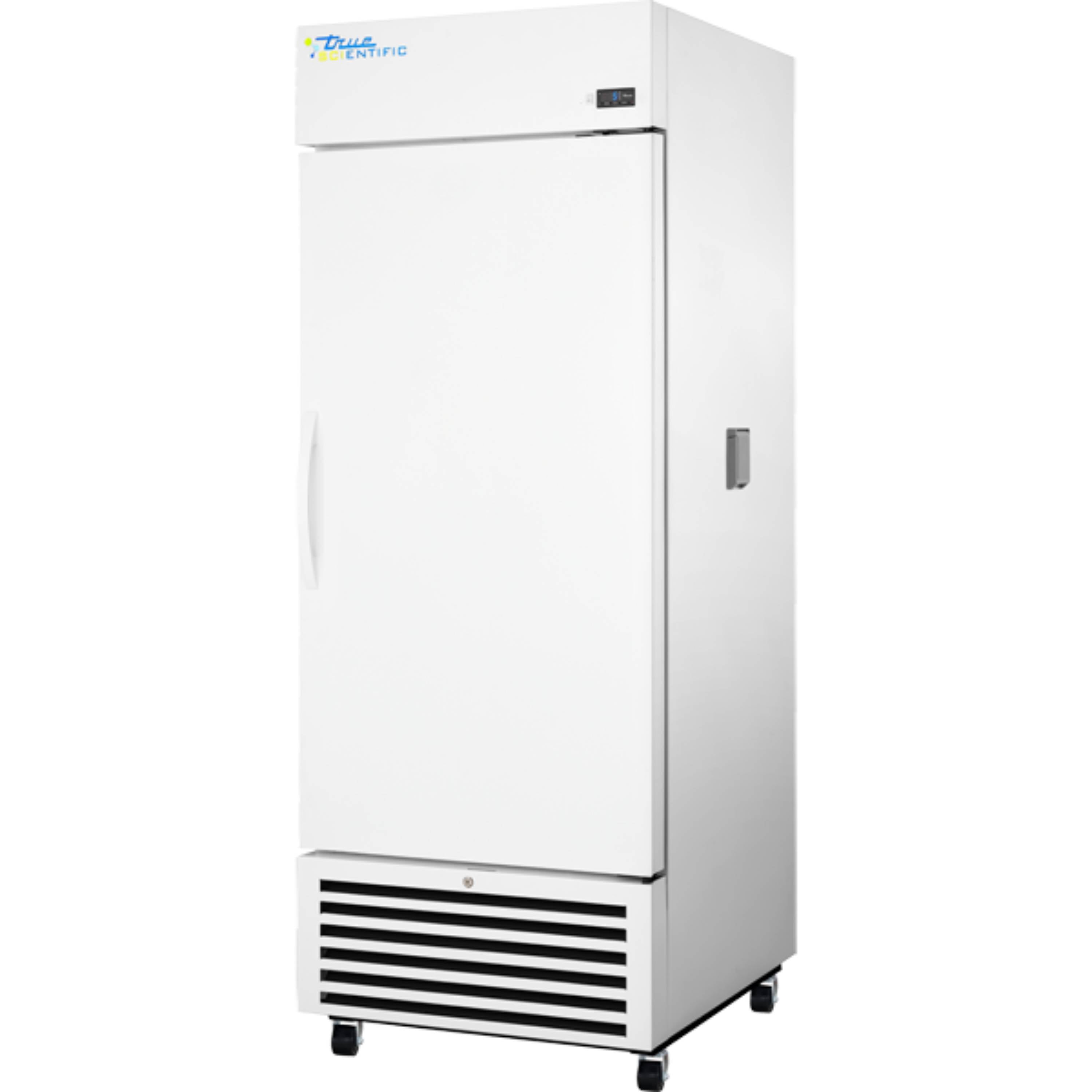

True Scientific 626.6 Liters (22.13 Cu Ft) Capacity Solid Door Chromatography Refrigerator, 115 V, Half Depth Shelves w/mast
Regular price
$ 9,239.95
Couldn't load pickup availability
Still have questions? Ask our experts!
True Scientific 626.6 Liters (22.13 Cu Ft) Capacity Solid Door Chromatography Refrigerator, 115 V, Half Depth Shelves w/mast
Specifications
| Model | TSCI-600CR-SWS-R-WW-1A |
| Door Count | 1 |
| Shelf Count | 7 |
| Weight (lbs) | 375 |
| Weight (KG) | 170 |
| Dimensions | Imperial | Metric |
| Width | 30 | 762 |
| Depth | 29–1/2 | 749 |
| Height | 81–11/16 | 2075 |
| CORD LENGTH | 10 | 3.05 |
Electrical
| Amps | 1.8 |
| Voltage | 115/60/1 |
| NEMA Configuration | 5-15P |
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).
Refrigeration System
- Refrigeration system specifically designed to maintain cabinet temperatures between 2°C - 10°C (36°F - 50°F).
- Expertly designed airflow system controls temperature uniformity throughout the cabinet within +/-1˚C.
- Self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
- Reciprocating hermetic compressor paired with forced air copper tube, aluminum fin condenser.
- Automatic defrost.
- State-of-the-art, electronically communicated evaporator and condensing fan motors. Produces less heat, reduces energy consumption, and provides more efficient airflow.
Cabinet Construction
- Exterior - non-peel or chip white powder coated cold rolled steel; durable and permanent. White aluminum back.
- Interior - attractive, white aluminum interior liner with a stainless steel floor.
- Remote alarm contacts.
- Insulation - entire cabinet structure is foamed-in-place using a high density polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).

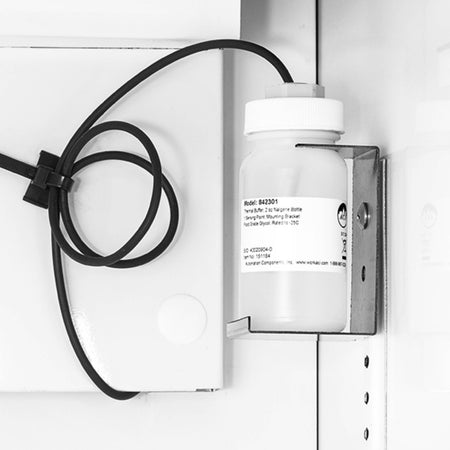

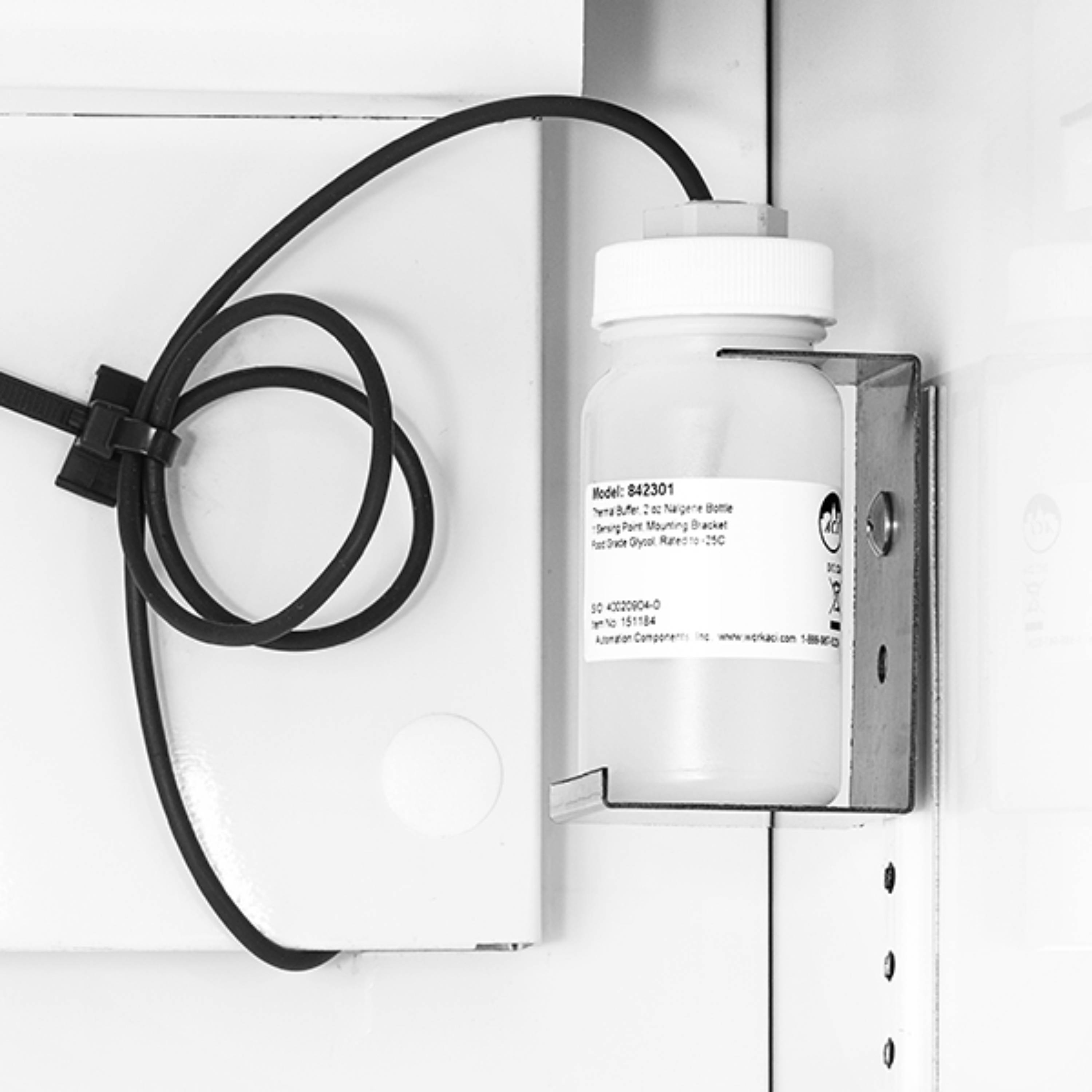

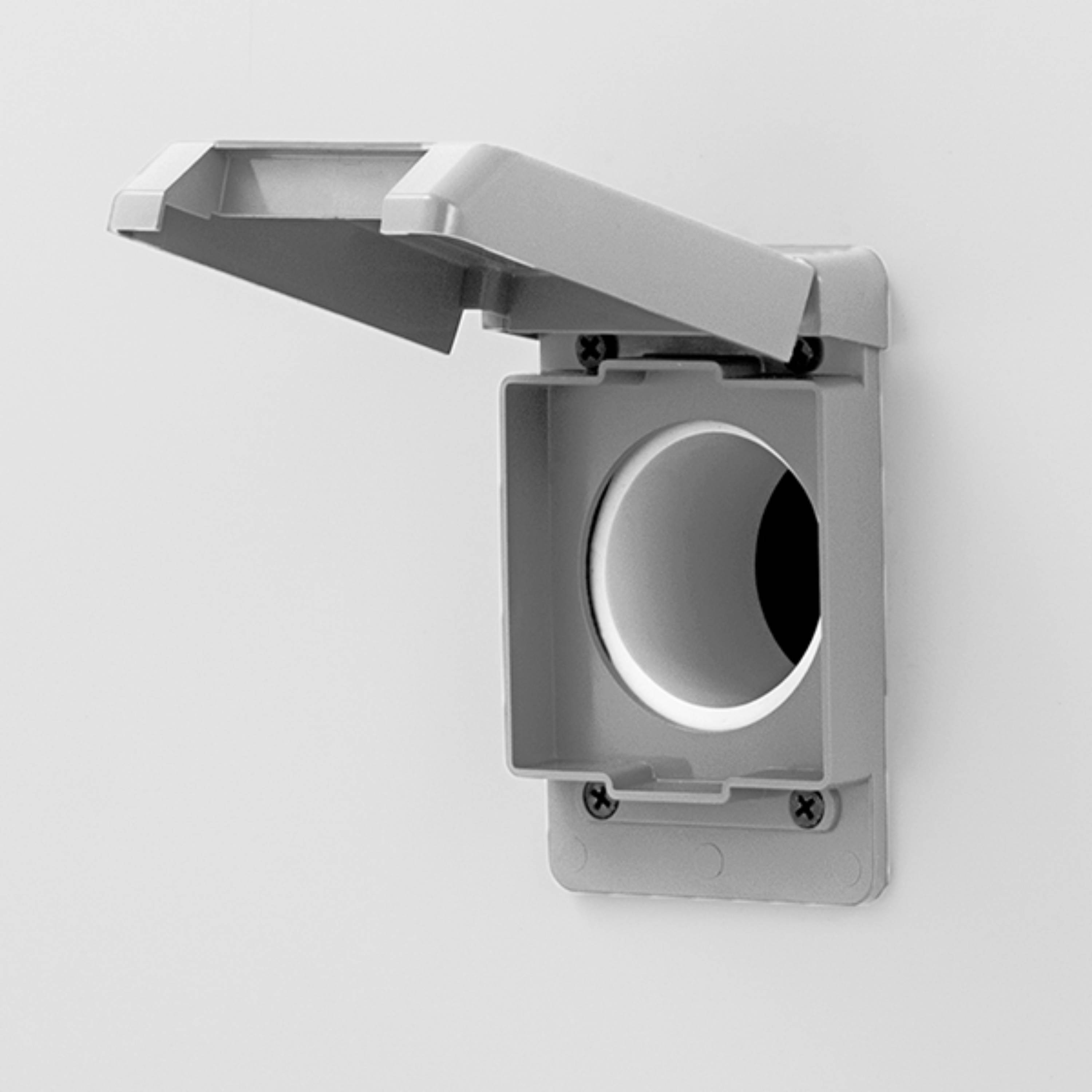

- 0.625 Inch diameter probe access port in the back of the unit.
Door
- Non-peel or chip white powder coated cold rolled solid steel door.
- Door lock included.
- Door fitted with 12” (305mm) long extruded handle. Advanced technology with built-in antimicrobial properties protecting the handle.
- Door ajar alarm
- Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
- Self-closing doors, positive seal, torsion type closure system.

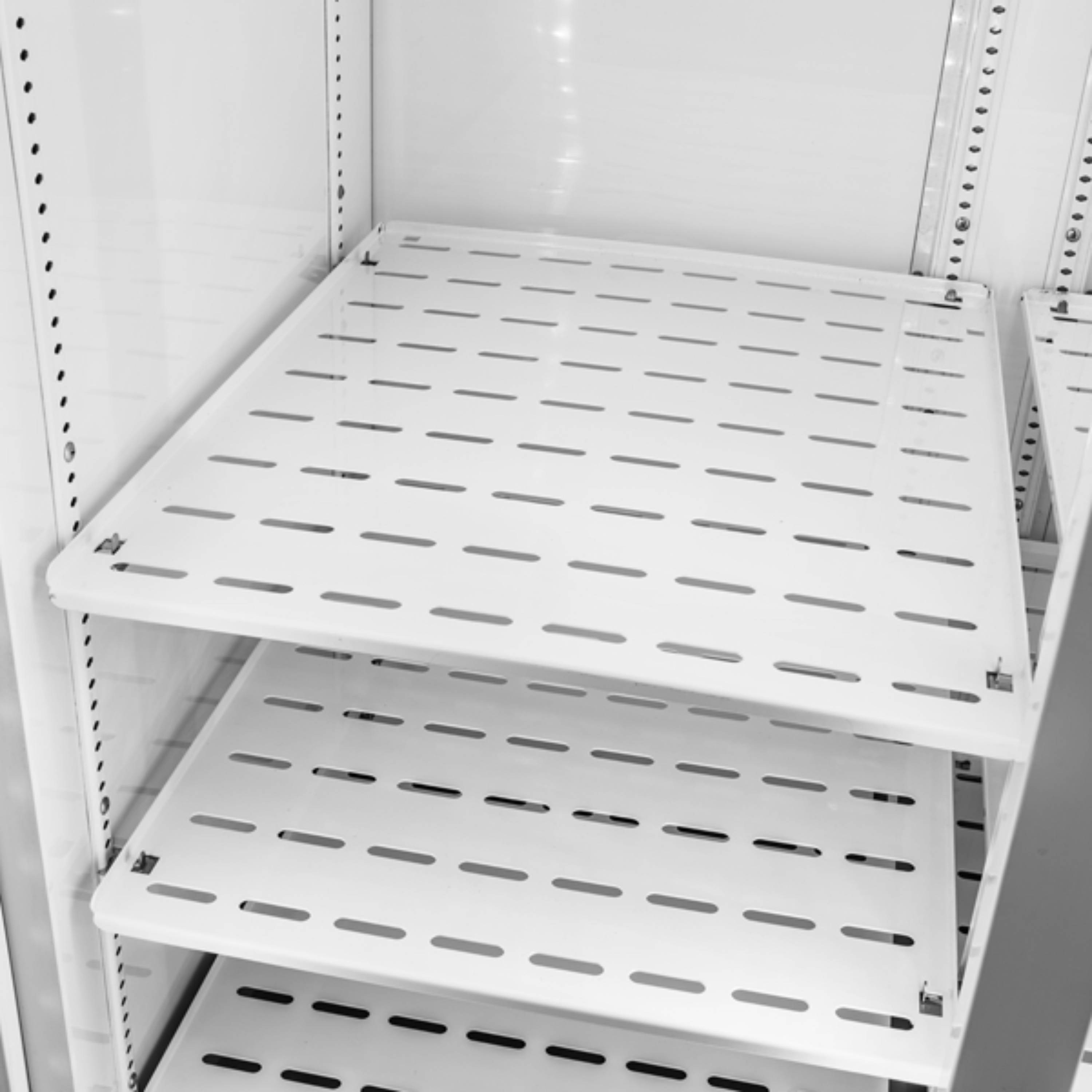

Shelving
- Powder-coated, perforated sheet metal shelves adjustable in 1/2 inch (13 mm) increments. 7 shelves total.
- Four (4) stainless steel shelf clips are included per shelf.
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
Optional Features/accessories (upcharge And Lead Times May Apply)
- Stainless steel interior
- Stainless steel exterior
- Left door swing
- Additional perforated sheet metal shelves
- Wire shelves
- 6" standard legs
- 6" seismic flanged legs
- Wire half shelves
- Chromatography mast
MSE Supplies is an authorized distributor of True Scientific products. Please contact us for more information.
