SEM-EDS Characterization | SEM-EDS Analytical Service

SKU: SEM001

$ 85⁹⁵

Quantity

Starting from $85 per sample (SEM only), MSE Analytical Services offer professional SEM-EDS characterization service using Phenom ProX Desktop SEM equipped with EDS from our lab located in Tucson, Arizona, USA.

Rush service is available with one day data delivery: extra $100 per sample

Non-magnetic sample SEM only: $85 per sample

Magnetic sample SEM only: $125 per sample

SEM + EDS spot: +$35 per sample

SEM + EDS mapping: +$55 per sample

* Note: Data analysis service is not included in the list prices. Please contact us for a quote on SEM-EDS data analysis and reporting services.

Highlights: High Quality Data, Competitive Pricing, Technical Support by Scientists.

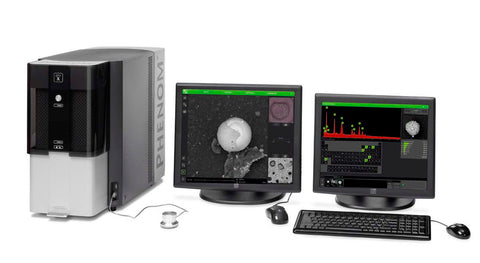

Specifications of Phenom ProX Desktop SEM

Desktop SEM with EDS capability for robust, effortless, and versatile elemental and SEM analysis.

Light optical magnification	20–134x
Electron optical magnification range	80-150,000x
Resolution	≤ 6 nm SED and ≤ 8 nm BSD
Digital zoom	Max. 12x
Light optical navigation camera	Color
Acceleration voltages	Default: 5 kV, 10 kV and 15 kV Advanced mode: adjustable range between 4.8 kV and 20.5 kV imaging and analysis mode
Vacuum modes	High vacuum mode Charge reduction mode via optional low vacuum sample holder
Detectors	Backscattered electron detector Energy-dispersive X-ray detector Secondary electron detector
Sample size	Up to 25 mm diameter (optional 32 mm)
Sample height	Up to 35 mm (optional 100 mm)

Please contact sales@msesupplies.com for additional information and instructions on our Analytical Services program. Confirmation of the sample(s) requirements, SDS sheets and additional information is needed prior to processing the Analytical Service order.

***Please do not ship any samples without authorization from MSE Supplies***
