S Rack 25 mL - Substrate Rack for 25 mL beaker

  • $ 31595

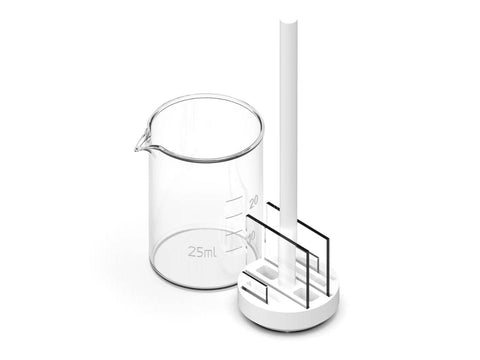

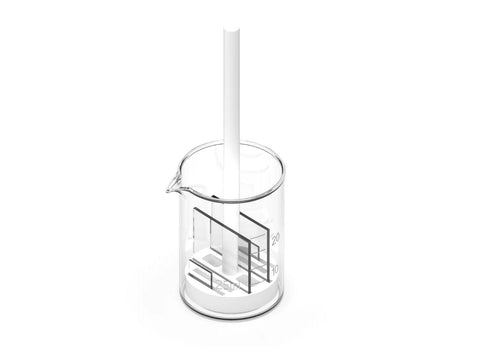

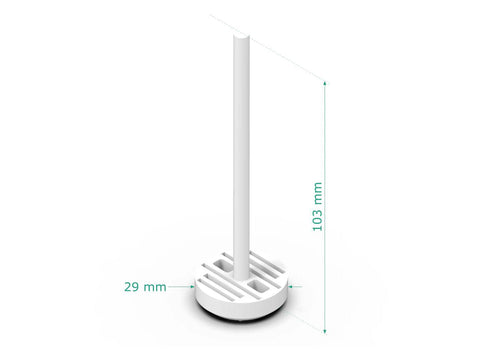

This PTFE rack is machined to accommodate a wide variety of substrates in different sizes and shapes. It basically consists of a perforated base and a bar. It resists most of the acids, bases and organic solvents. This model is designed to fit inside standard 25 mL beaker. However, it is available in several different versions to accommodate samples inside various beaker sizes (50 mL, 100 mL, 150 mL and 250 mL). A customization is available on request. Beaker and substrates are not included.

Application note
This adjustable substrate rack is most commonly used for cleaning substrates, etching, developing photoresist, solvent treatment, SAM deposition and baking (below 250 deg C).

max. substrate width: 2 x 25 mm, 2 x 20 mm and 2 x 15 mm (up 1.4 mm thick) or  2 x 20 mm, and  2 x 15 mm (up to 3.4 mm thick)
min. substrate width: 7 mm
max. substrate thickness: 1.4 mm or 3.4 mm
max. number of substrates: 6 pcs ( up 1.4 mm thick) or 4 pcs (up to 3.4 mm thick)

Product includes
1 x PTFE base
1 x PTFE bar
