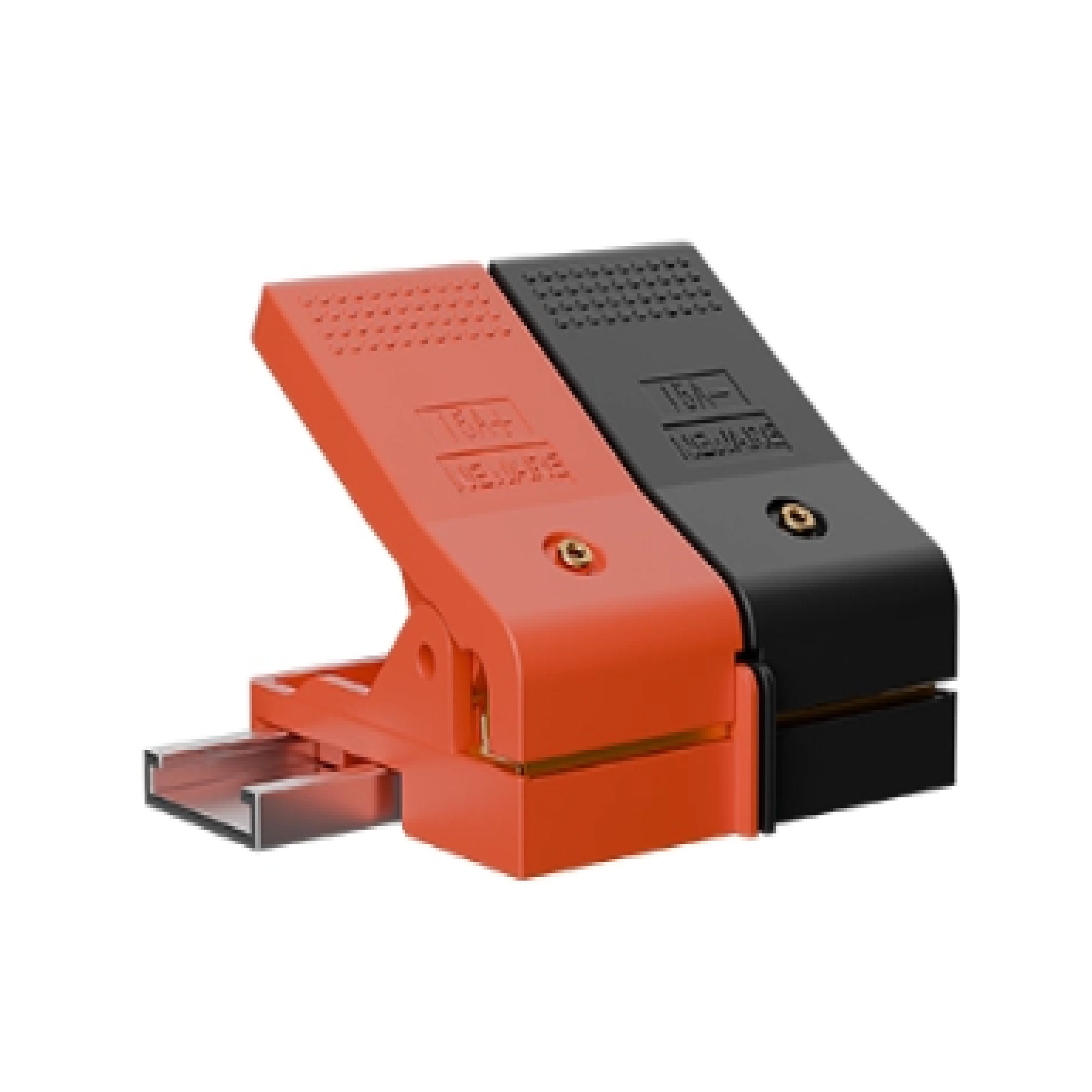

Pouch Cell Clamp (Type D, 15A Polymer Clamp, 0.2m)) for Neware CT-4008T Series Battery Tester

Pouch Cell Clamp (Type D, 15A Polymer Clamp, 0.2m)) for Neware CT-4008T Series Battery Tester

Introduction

The Type D Pouch Cell Clamp is designed for reliable testing of polymer pouch cells using the Neware CT-4008T series battery testers. It supports charge/discharge cycling, formation, and capacity evaluation with stable electrical performance and secure mechanical clamping.

Key Features

• Current Range: 6A–15A

• Low Contact Resistance: < 1 mΩ for efficient current transfer and reduced energy loss

• Gold-Plated Conductive Clips: Anti-oxidation treatment for enhanced conductivity and durability

• High-Temperature Insulation: Outer high-temperature plastic wrap, heat-resistant up to 150°C

• Corrosion Resistant: Salt spray tested for long-term stability

• Safety Tested: Short-circuit and multiple safety inspections performed

Strong & Secure Clamping

After clamping force testing, the clip can lift a 2 kg weight without slipping, ensuring firm contact with electrode tabs and preventing movement during testing.

Flexible Configuration

The clamp can be used with C-type rails. Customizable rails are available to accommodate different electrode spacing requirements. The fixed rack platform simplifies battery arrangement for efficient and organized testing setups.

MSE offers multiple clamp variants for battery testers. Please contact us for more information or customization options.
