OLIS CPL Solo Spectrometers for UV/Vis and NIR
SKU: OLIS-CPL-Solo-UV Vis

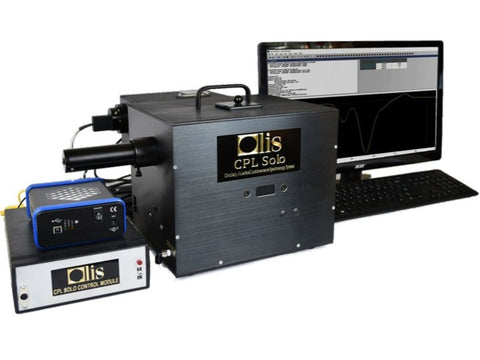

OLIS CPL Solo Spectrometers for UV/Vis and NIR
Small, Affordable, and fully Digital Circularly Polarized Luminescence (CPL)
Designed on first principle for highest sensitivity CPL and anisotropy, this model is a third of the price and a quarter of the size of the competitors’ products and yet has excellent sensitivity and stability. Maximum excitation is achieved with brilliant and stable filtered LED sources; maximum emission sensitivity is achieved using a high throughput monochromator and gated photon counting detector. All digital performance with factory locked-in calibration, i.e., no need for a lock-in amplifier, no need for G-factor corrections.
Two models are available: OLIS CPL Solo UV/Vis and OLIS NIR CPL Solo. The UV/Vis model can be enhanced to measure phosphorescence lifetime and thus CPP. Polarized and unpolarized excitation possible with all configurations.
Your “brilliant breakthrough” can be realizing that circularly polarized luminescence is within reach for your laboratory! How many breakthroughs are ahead while using this rare and valuable measurement?
Reliable. Simple. Successful!
Features
- Measure the dissymmetry of chiral nanomaterials, molecular chirality, and more across the 350-850 nm span (NIR & IR models also available).
- Direct acquisition of LUM(L) and LUM(R) with zero contamination by linearly polarized or non-polarized luminescence
- Very easy to use Win 10/11 data acquisition software for collecting, presenting, and analyzing LUM(R), LUM(L), LPL, NPL, and CPL, as well as total emission
- Compact footprint housing the excitation source, sample compartment with polarization hardware, scanning emission monochromator, detector, and controlling electronics.
Available Accessories/Features
- Polarized Excitation
- Phosphorescence Lifetime
- Peltier Thermal Cell Holders
- Thin Film Holder
- DeSa Permanent Magnet
UV/Vis Specifications
| Wavelength Ranges |
CPL Solo UV/Vis: 350-800 nm NIR CPL Solo: 800-1700 |
| Spectral Resolution | 0.1 nm to 20 nm |
| Optics | OLIS single grating RFL monochromator with grating matched to desired spectral range |
| Detector | Photon counting where applicable (350-800 nm and 800-1700 nm); InGaAs as needed |
| Light Source | Excitation specific filtered LEDs. Three LEDs are provided in purchase price; additional ones can be purchased and exchanged without tools or alignment. One or two can be mounted for immediate sequential or concurrent operation, with two matched LEDs recommended for highest sensitivity in the UV. |
| Modulator |
UV/Vis: Hinds PEM NIR: Liquid Crystal |
| Calibration | Factory set and permanent |
| Lock-in Amplifier | None required or used |
