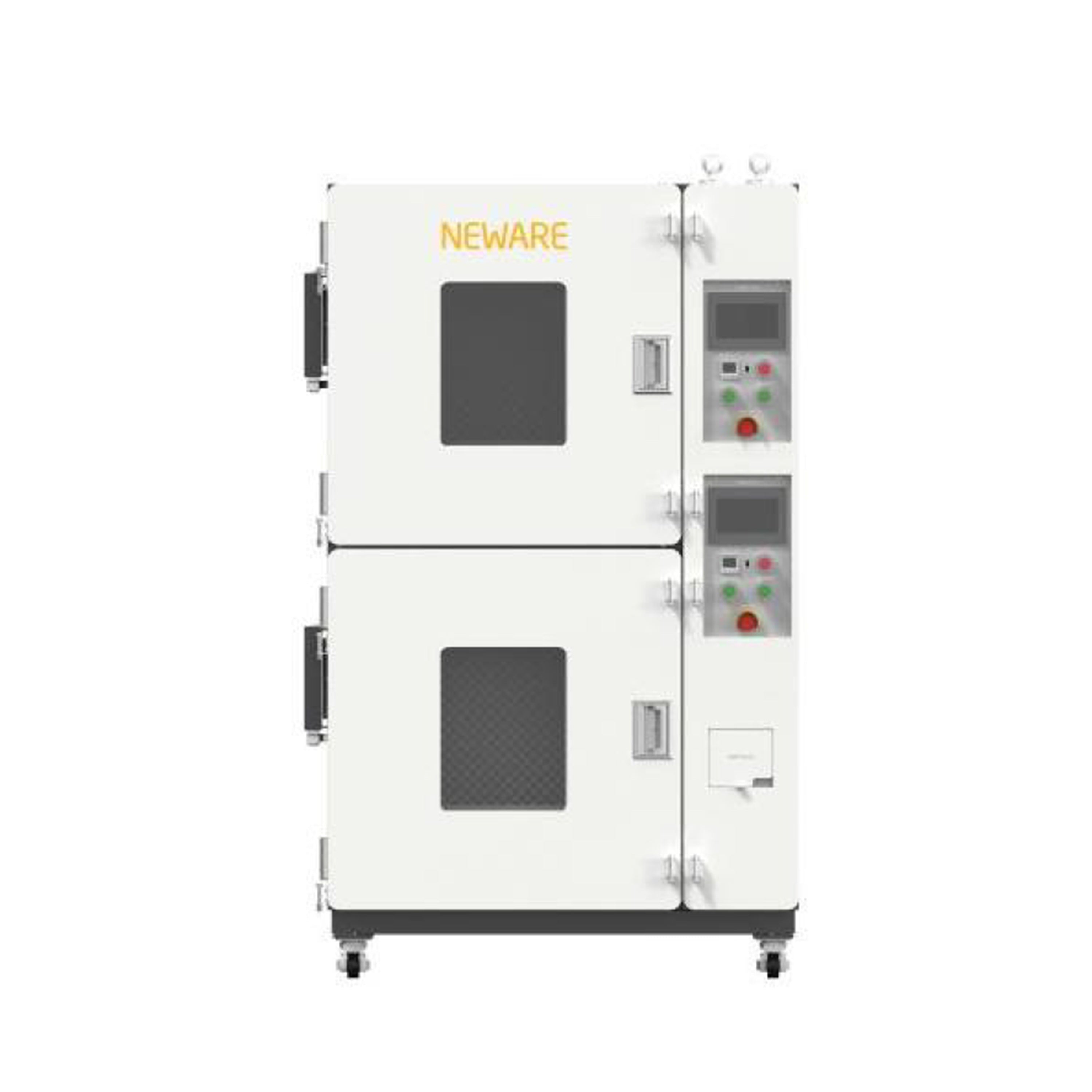

Neware WGDW-800L2-20C-380V-32U-B, -20 to 150℃ All-in-One 800L Battery Testing System
Introduction
The Neware WGDW-800L2-20C-380V-32U-B, -20 to 150℃ All-in-One 800L Battery Testing System is a dual-zone high and low temperature battery testing chamber designed for battery performance evaluation under controlled thermal conditions. It combines a 360L × 2 dual-temperature-zone chamber with integrated 5V30A64CH (Series 4) battery testing equipment, making it suitable for new energy production enterprises, research institutes, and laboratories requiring reliable battery adaptability and performance testing in high- and low-temperature environments.
With a temperature range of -20℃ to 150℃, dual control units, Ethernet communication, integrated fire safety features, and insulated battery trays, this all-in-one system is built for efficient thermal testing, programmable chamber control, and battery test interconnection. The chamber also supports upper-computer programming control and optional customization of the battery tray structure to accommodate different battery sizes and formats.
Key Features
- All-in-one dual-zone battery testing system
- Product model: WGDW-800L2-20C-380V-32U-B
- Temperature range: -20℃ to 150℃
- Dual temperature zones, nominal volume 360L × 2
- Integrated 5V30A64CH (Series 4) battery testing equipment
- High color LCD touch screen controller
- Program mode and set value mode operation
- PT100 temperature sensor with 0.01℃ display accuracy
- Heating time: +20℃ to +150℃ ≤60 min
- Cooling time: +20℃ to -20℃ ≤45 min
- Anti-fog observation window, lighting, and adjustable insulated battery trays
- Built-in smoke alarm, exhaust device, and 8L CO₂ fire extinguishing bottle
- Supports upper computer programming control and Ethernet communication
- Suitable for battery performance testing in new energy production and research applications
Specifications
| Parameter | Specification |
|---|---|
| Model | WGDW-800L2-20C-380V-32U-B |
| Product Type | Automatic Fire Extinguishing Dual-Temperature Zones High and Low Temperature Chamber |
| Application | Battery performance testing in new energy enterprises and research institutes |
| Nominal Volume | 360L × 2 |
| Inner Box Size (Single Temperature Zone) | W800 × D600 × H750 mm |
| External Dimensions | W1600 × D2050 × H2050 mm |
| Weight | About 840 kg |
| Temperature Range | -20℃ to 150℃ |
| Temperature Fluctuation | ≤±0.5℃ (no load, temperature stable) |
| Temperature Deviation | ±2.0℃ (no load, temperature stable) |
| Heating Time | +20℃ to +150℃ ≤60 min |
| Cooling Time | +20℃ to -20℃ ≤45 min |
| Test Method | GB/T 5170.2-2017 Temperature test equipment |
| Standards Met | GB/T 2423.1-2008, GB/T 2423.2-2008, GJB 150.3A-2009, GJB 150.4A-2009, GB/T 10592-2008 |
| Exterior Wall Material | High quality cold rolled steel plate, surface spray treatment |
| Inner Wall Material | SUS304 stainless steel plate |
| Insulation Material | Hard polyurethane foam + aluminum silicate cotton |
| Insulation Thickness | 100 mm |
| Air Conditioning Channel | Centrifugal fan, heater, evaporator (dehumidifier), left/right horizontal air intake and outlet |
| Lead Hole (Single Temperature Zone) | φ50 mm / 8 |
| Wheels | 4, with adjustable feet |
| Observation Window | Multi-layer hollow electric heating film anti-fog window, approx. 330 × 450 mm visible range |
| Lighting (Single Temperature Zone) | 1 |
| Battery Tray (Single Temperature Zone) | 2 layers, high-temperature resistant electric insulation tray |
| Tray Load Capacity | 10 kg/layer evenly distributed |
| Maximum Total Sample Load per Box | 40 kg |
| Door Type | Single hinge door, left hinge, right handle |
| Door Features | Observation window, lighting lamp, anti-condensation heating, double-layer silicone sealing strip |
| Control Panel | Controller display, over-temperature protection setter |
| Refrigeration Working Mode | Mechanical compression cascade refrigeration |
| Refrigeration Compressor | France imported “Taikang” fully enclosed compressor or Emerson gas turbine compressor |
| Refrigerant | R404A / R23 |
| Condenser | Air-cooled finned tube heat exchanger |
| Evaporator | Finned tube heat exchanger |
| Heater Type | Stainless steel finned heater |
| Heater Control Mode | Contactless periodic pulse width modulation, SSR |
| Controller Model | Professional temperature controller |
| Display | High color LCD touch screen |
| Operation Mode | Program mode, set value mode |
| Setting Method | Color touch human-computer interaction, Chinese/English interface |
| Control Mode | Anti-integral saturation PID, BTC balance temperature control mode |
| Temperature Measurement Method | Grade A armored PT100 sensor |
| Display Accuracy | Temperature: 0.01℃; Time: 1 min |
| Over-Temperature Protection | Independent over-temperature protector with shutdown alarm |
| Integrated Testing Equipment | 5V30A64CH (Series 4), located on the side of the housing |
| Control Unit | 2 |
| Network Switch | 1 |
| Programming Control | Upper computer programming control supported |
| Smoke Alarm | Equipped |
| Exhaust Device | Auto starts when smoke concentration exceeds standard |
| Fire Extinguishing Device | One 8L carbon dioxide empty bottle per device, manual or automatic extinguishing |
| Other Safety Protections | Phase sequence and phase loss protection, leakage protection, overload and short circuit protection, power failure recovery protection |
| Power Supply Conditions | AC (380±38) V, (50±0.5) Hz, three-phase five-wire system |
| Grounding Resistance | < 4Ω |
| Power Distribution | (9 kW chamber + 7.5 kW test equipment) × 2 |
| Maximum Current | 15 A × 2 |
| Operating Environment | 5℃ to 35℃, ≤85% RH, 86–106 kPa |
| Battery Specification | Soft pack battery, single temperature zone 5V300A4CH (double temperature zone 8CH) |
| Battery Placement | Second floor in single temperature zone |
| Battery Tray Customization | Can be customized according to needs |
Applications
This all-in-one battery testing system is suitable for:
- Battery performance testing under high and low temperature conditions
- Adaptability testing for batteries used in aviation, automotive, and research fields
- New energy battery production testing
- Research institute battery validation and environmental simulation
- Integrated thermal chamber and battery cycling test workflows
