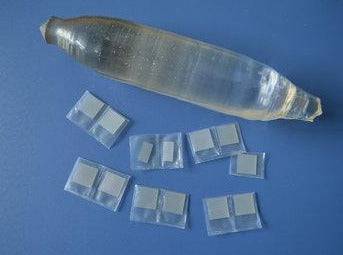

MSE PRO Yttrium Orthoaluminate (YAlO<sub>3</sub>) Crystal Substrates, Substrates, MSE Supplies LLC, MSE Supplies

MSE PRO Yttrium Orthoaluminate (YAlO3) Crystal Substrates

SKU: SU2431

  • $ 4395

Request a Quote

Yttrium Orthoaluminate (YAlO3) Crystal Substrates

Yttrium Orthoaluminate (YAlO3) is also referred to as yttrium aluminum perovskite (YAP). It has a perovskite-like orthorhombic crystal structure (a= 5.330(2)Å, b= 7.375(2)Å, c= 5.180(2)Å; space group Pnma-D162h). YAP substrate is widely used for growth of high temperature superconducting (HTS) thin film, II-V nitride and oxide films. Tm, Nd, Pr, Er and Cr doped YAP crystals are commonly used for laser applications.

Please contact us for customization or bulk order.

Crystal Structure Orthorhombic
Melting Point 1870 °C
Density 4.88g cm-3
MOHS Hardness 8.5
Orientation (010), (100), (001), (110)

, 10x10x0.5mm or other sizes upon request
Polishing Single Side or Double Side polishing
Refractive Index @ 632.8 nm

1.96(a)

1.94(b)

1.97(c)
Coefficient of Thermal Expansion

2.32 x 10-6 K-1 (a)

8.08 x 10-6 K-1 (b)

8.7 x 10-6 K-1 (c)


References

1. Crystal structure refinement of YAlO3, a promising laser material, Mater. Res. Bull., 1975, Vol. 10, Issue 2, 85-90

2. Measurement of thermo-optic properties of Y3Al5O12, Lu3Al5O12, YAIO3, LiYF4, LiLuF4, BaY2F8, KGd(WO4)2, and KY(WO4)2 laser crystals in the 80–300K temperature range, J. Appl. Phys., 98, 103514 (2005)
