MSE PRO Uncoated Calcium Fluoride (CaF2) Flat Windows, Round Shape
SKU: UCFR-10-0.5

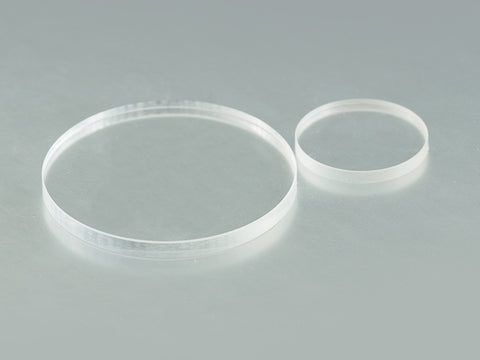

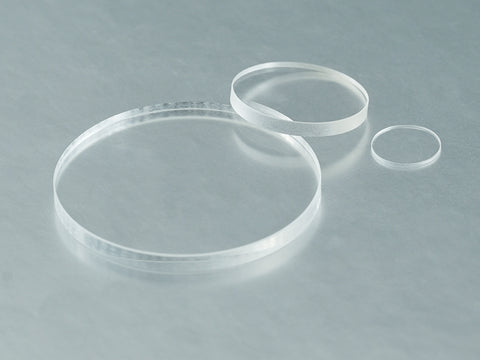

MSE PRO™ Uncoated Calcium Fluoride (CaF2) Flat Windows, Round Shape
Calcium fluoride (CaF2) window is an optical window typically employed as a protective shield for electronic sensors or detectors in external environments. It possesses a circular shape and allows specific wavelengths of light to pass through while safeguarding the internal instrument from external influences.
Its transmission range spans from 0.13 to 10μm, exhibiting high hardness and resistance to mechanical impact, enabling stability across diverse environments. Additionally, it showcases thermal and chemical stability, allowing for use in high-temperature and corrosive settings.
Precise machining and polishing are essential in the manufacturing process to ensure its shape and optical clarity.
Coating treatments can also be applied to enhance its transparency and anti-reflective properties. Please contact us for customize coating services.
The standard product is optical grade. If you need windows for Raman application, please contact us for quote.
Technical Data:
| Diameter | 3-300mm |
| Diameter Tolerance | +0.0/-0.2mm |
| Thickness | 0.3-200mm |
| Thickness Tolerance | ±0.1mm |
| Clear Aperture | >90% |
| Surface Quality | 60-40 Scratch-Dig |
| Wavelength Range |
400nm-8.0μm (Uncoated) (For 180nm-8.0μm range please contact us for inventory confirm) |
| Material | Calcium Fluoride |
MSE Supplies can offer a variant of optical elements, with different materials, size, surface quality and coating. Please contact us for customization or bulk orders.
