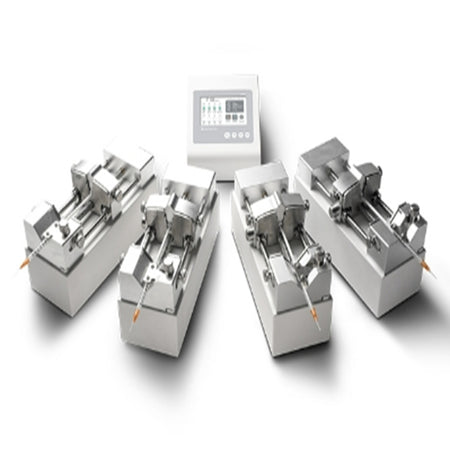

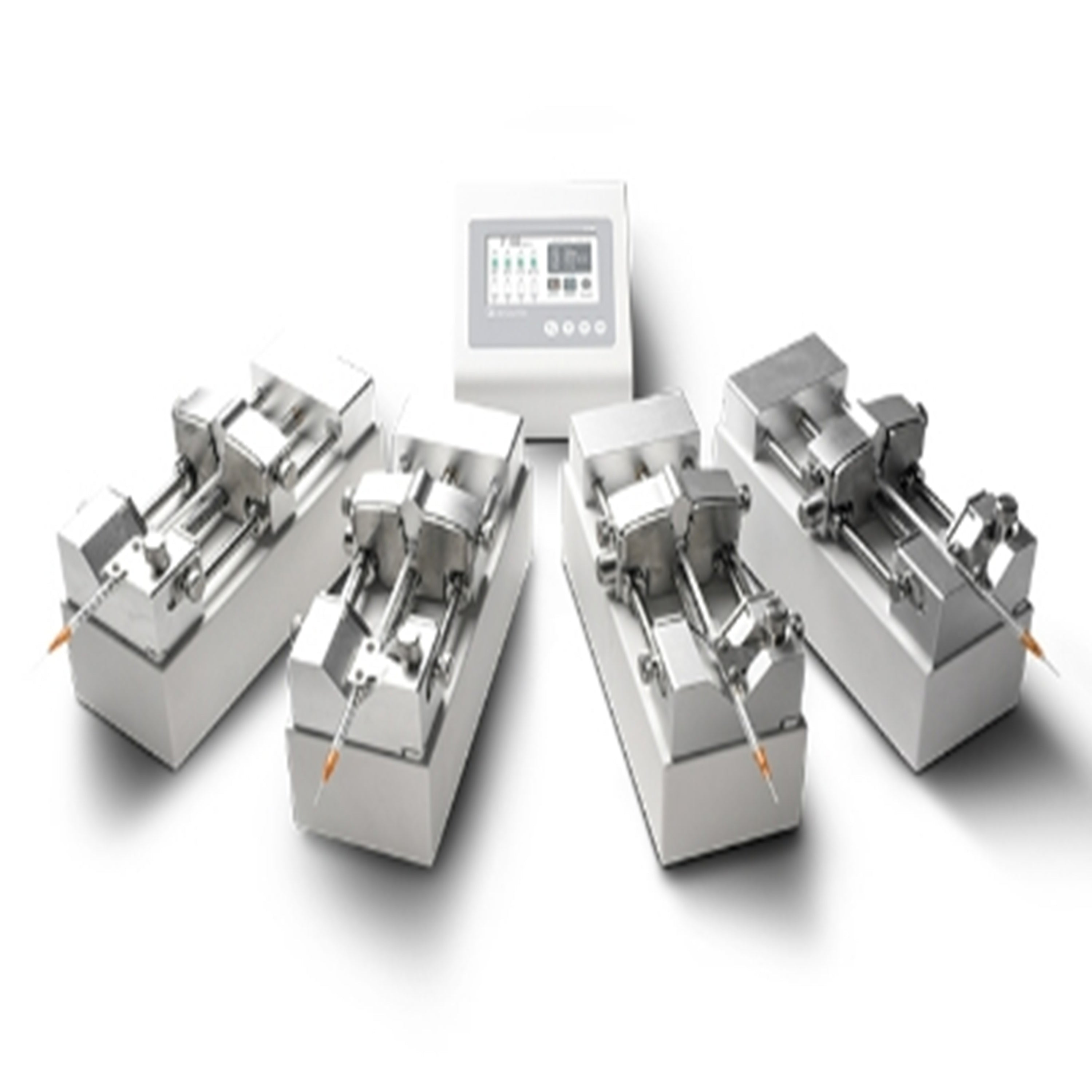

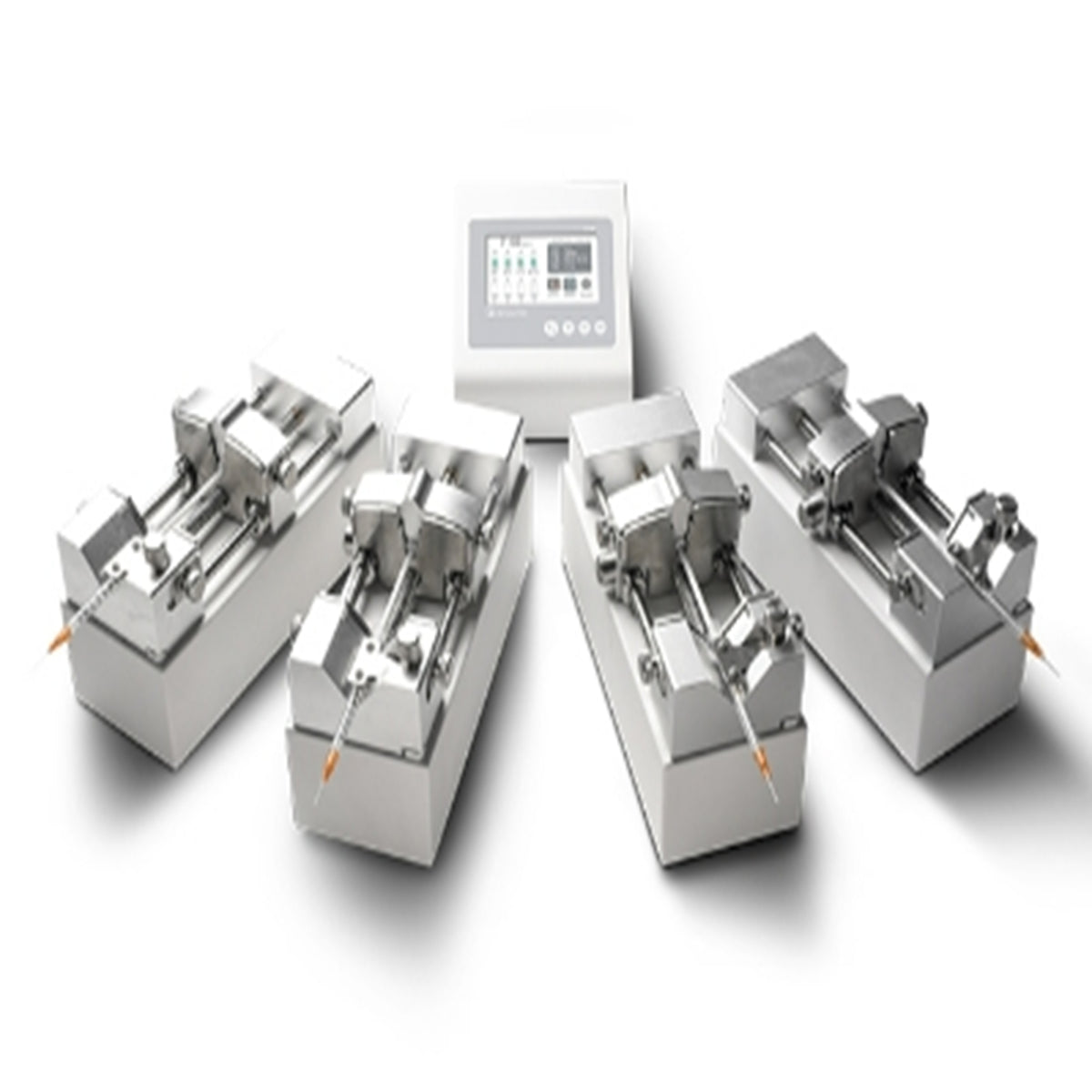

MSE PRO Split Type Syringe Pump Infuse/Withdraw (Independent Working Series)
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE Supplies offers Split Type Syringe Pump Infuse/Withdraw. It comes with independent working mode, which means it is capable of infuse or withdraw in different speed at the same time or different time. With each unit capable of running in different modes, it allows for versatile fluid control. It is widely used in various scientific, medical, and research fields, providing precise and programmable fluid delivery and withdrawal capabilities to meet specific experimental or application requirements.
Brand: MSE PRO™
Technical Specifications:
|
Syringe Size |
0.5 uL ~ 50 mL |
|
Display |
Industrial grade 4.3” LCD color display (Touch Screen) |
|
Type |
Infuse / Withdraw |
|
Pump Count |
2 Standard (1 ~ 8 optional) |
|
Linear Force |
> 16 kgf |
| Minimum Linear Rate | 1 um/min |
| Maximum Stroke | 90 mm |
| Accuracy |
Stroke ≥ 30% of max. stroke, Error ± 0.5% |
|
Controller Power Supply (per unit) |
DC 5 V / 10 W |
|
Pump Power Supply (per unit) |
DC 24 V / 24 W |
|
Operating Temperature |
0~40 °C |
| Relative Humidity | < 80% |
| External Control |
a. Start/Stop signal, active switch signal: (5-24V universal) b. All Start/Stop signal, passive switch signal, such as foot pedal switch |
| Communication Interface | RS232 / RS485, Modbus protocol (RTU mode) |
| IP Rate | IP31 |
|
Controller Dimension |
160 x150 x95 mm |
|
Controller Weight |
1 kg |
|
Pump Dimension (per unit) |
257 x 110 x 131 mm |
|
Unit Pump Weight (per unit) |
3 kg |
|
Limited Warranty |
1 year |
*Syringe not included, the picture might be different from the actual product
*Please provide intended application and process so we can choose the best product that meet your requirements.
