MSE PRO Sodium-ion Battery Hard Carbon Anode Electrode Sheet (5 Pieces)
Introduction

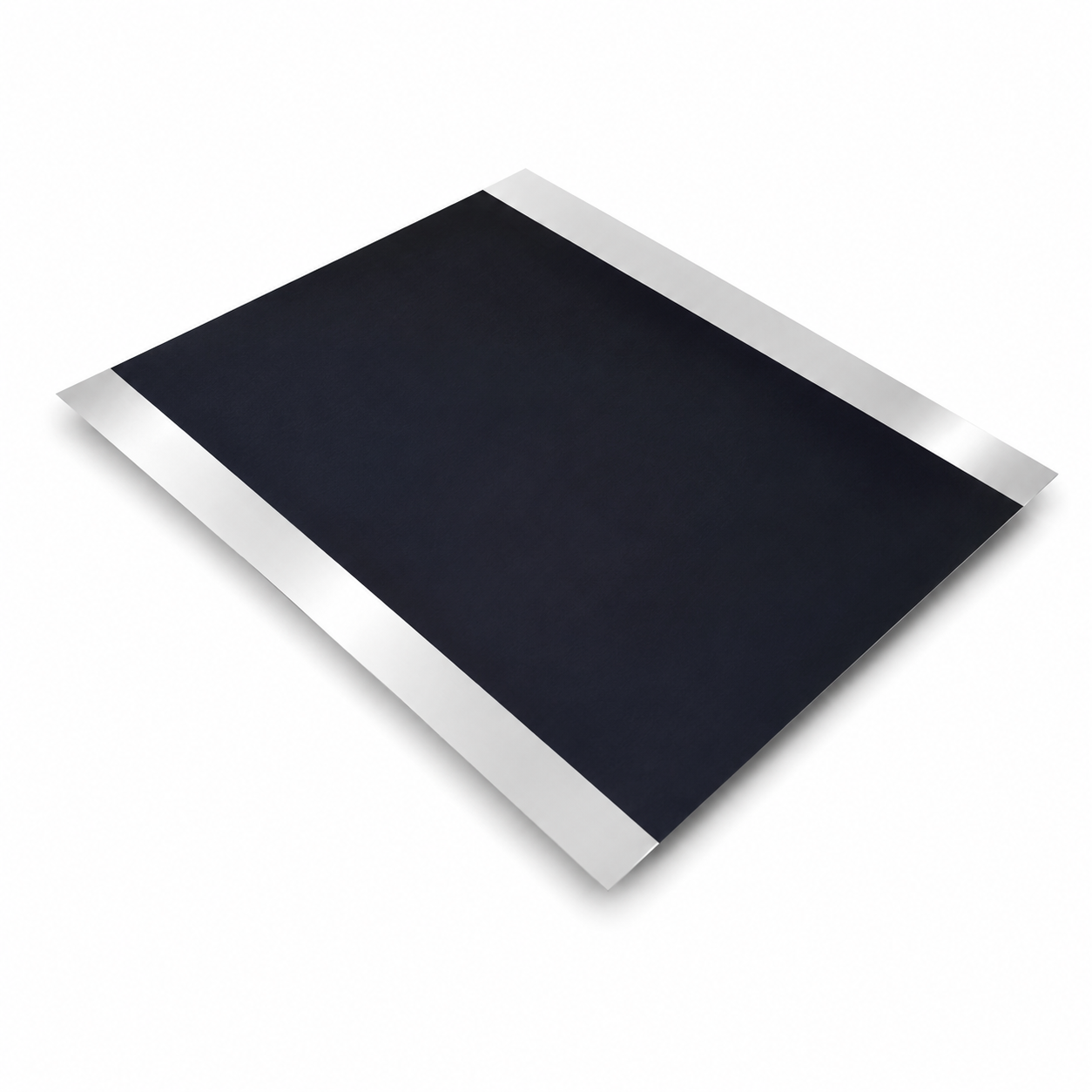

This product is developed for sodium-ion battery research and features a hard carbon electrode sheet using 5 μm hard carbon as the active material on a 12 μm aluminum foil current collector. With a high active material ratio of 95.5% and an areal capacity of 1.73 mAh/cm², it provides a specific capacity of 300 mAh/g within a 0.00–2.00 V window. The electrode sheet is supplied uncalendered and requires roll-pressing to the recommended compaction density prior to use. It is designed for half-cell evaluation of hard carbon anodes, and is also compatible with full-cell configurations using the cathode at an N/P ratio of 1.16. Optimal performance is achieved with the recommended KLD-NC06 electrolyte under specified test conditions. The product should be stored under vacuum or in a glove box and used within one month after opening to avoid performance degradation.
Specification
| Areal Capacity (mAh/cm²) | 1.73 |
| Current Collector Areal Density (mg/cm²) | 3.3 |
| Current Collector Thickness (µm) | 12 (Al foil) |
| Electrode Sheet Size | 10 × 10 cm |
| Active Material Ratio (%) | 95.50% |
| Compacted Density (g/cc) | 0.90 (Uncalendered electrode, compaction value not provided) |
| Active Material | Imported Hard Carbon (5 µm) |

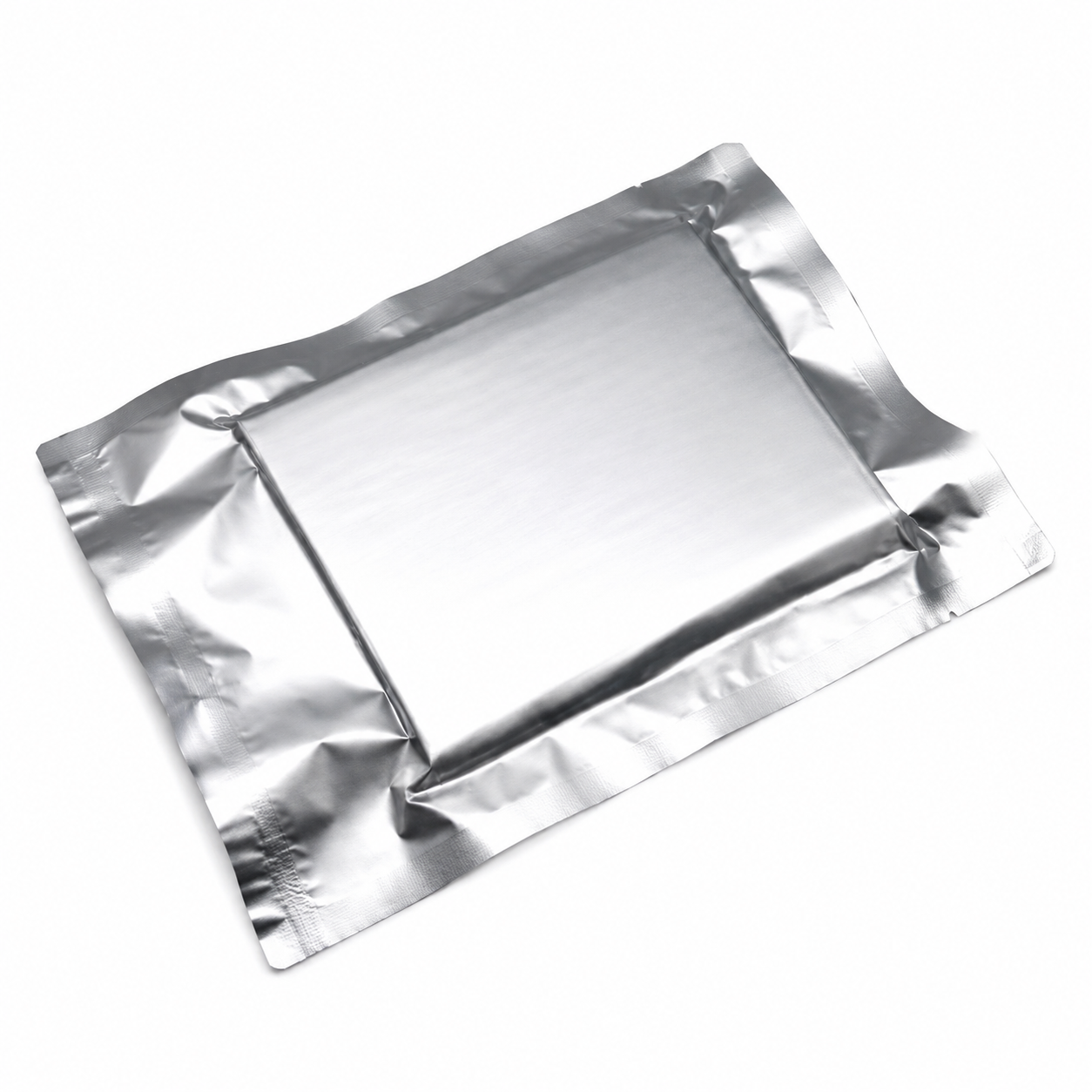

| Shelf Life | 6 months (vacuum sealed); use within 1 month after opening |
| Recommended Electrolyte | KLD-NC06 |
| Specific Capacity (mAh/g) | 300 (0.00–2.00 V) |
| Test Conditions | 25°C, 0.20→0.15→0.12→0.10→0.08→0.06→0.05→0.04→0.03→0.02→0.015→0.012→0.01C / 0.02mA / 0.01mA discharge to 0.00V; then 0.1C charge to 2.00V |
| Usage Recommendation | Calender before punching & drying; Dry at 85–105°C for 4h (vacuum drying requires 2 gas exchanges); Active mass based on actual disc weighing |
| Coating Areal Density (mg/cm²) | 6.00 (tolerance ±2.0%) |
*This product must be tested in accordance with the recommended test methods and electrolytes to achieve the corresponding performance. Since the test method and electrolyte have a great influence on the performance of the battery, any change in the test method or electrolyte may reduce the performance of the pole piece; be sure to check this information before purchasing.

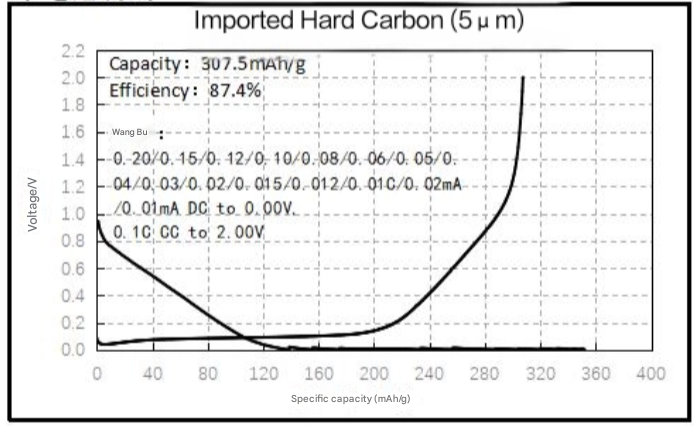

Half-Cell Testing
Procedure Description:
- Ambient temperature 25°C, rest for 4h
- Discharge at 0.20C rate (constant current) to 0V, discharge at 0.15C rate (constant current) to 0V,
- Discharge at 0.12C rate (constant current) to 0V, discharge at 0.10C rate (constant current) to 0V,
- Discharge at 0.08C rate (constant current) to 0V, discharge at 0.06C rate (constant current) to 0V,
- Discharge at 0.05C rate (constant current) to 0V, discharge at 0.04C rate (constant current) to 0V,
- Discharge at 0.03C rate (constant current) to 0V, discharge at 0.02C rate (constant current) to 0V,
- Discharge at 0.015C rate (constant current) to 0V, discharge at 0.012C rate (constant current) to 0V,
- Discharge at 0.01C rate (constant current) to 0V, discharge at 0.02mA rate (constant current) to 0V,
- Discharge at 0.01mA rate (constant current) to 0V, rest for 3min.
- Charge at 0.1C rate (constant current) to 2.00V, rest for 3min.

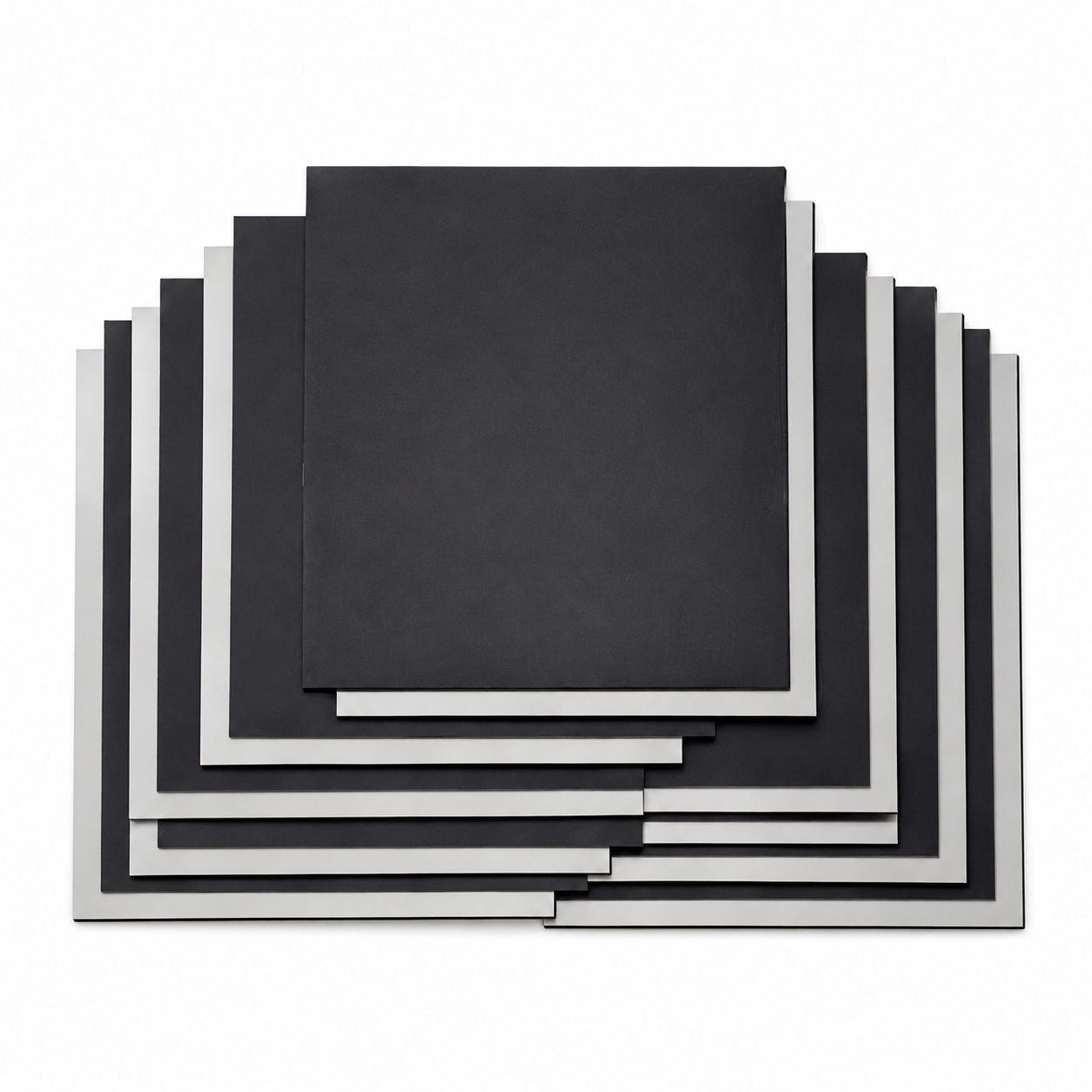

*Please note that the photo is for reference only. The dimensions of this product can be customized. Please contact us with any specific customization requirements.
