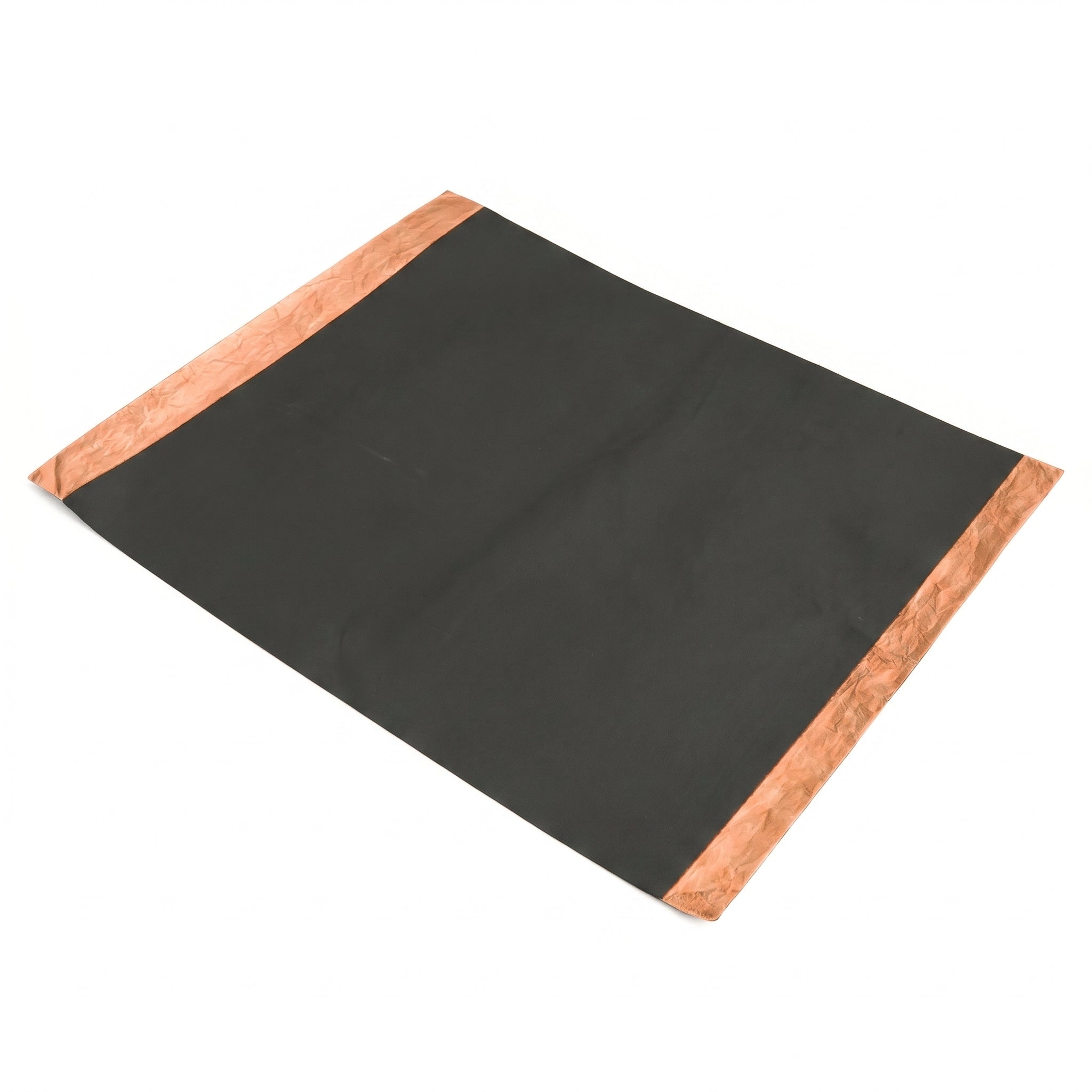

MSE PRO Single Side Conductive Graphite Coated Copper Foil For Battery Research (260mm x 230mm x 65um), 5 sheets/pack
Product Details:
5 sheets/pack Conductive graphite coated copper foil is a trending substrate/current collector in battery R&D and industries. Conductive graphite coated copper foil is used as an anode material in lithium ion batteries.
Compared with bare copper foil, the conductive graphite coated copper foil has several advantages, such as:
- Improved electrical conductivity and less internal resistance
- Improve adhesion at active layer/current collector interface
- Inhibition of cell polarization and short circuit caused by dendrite growth
- Prevent substrate corrosion caused by electrolyte
The overall cell performance can benefit from these advantages, including higher charge/discharge capacity, better rate capability and cycling performance.
This conductive graphite coated copper foil can be customized upon request, such as coating material, coating thickness and copper foil thickness/width. Please contact us to provide your requirements.
|
Specifications |
|
| Product SKU# | BR0185 |
| Pack Size |
5 sheets/pack |
| Substrate material | Copper (≥99.9% purity) |
| Substrate thickness | 8 µm |
| Substrate size | 260x230 mm |
| Coating material | Graphite composite |
| Coating area | 260x200 mm |
| Coating side | One side |
| Coating density | 7.28 mg/cm2 |
| Capacity | 300 mAh/g |
| Active material mass loading | 96% |
| Total thickness | 65 um |
Please vacuum dry the sheets before use to ensure the best performance.
Reference:
Q&A:
Q: How do I customize electrode sheet?
A: Please refer to our article of electrode sheet customization:
https://www.msesupplies.com/blogs/news/how-to-customize-your-electrode-sheet
