MSE PRO Roll to Roll Coating Machine For Lithium Battery Electrode
To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

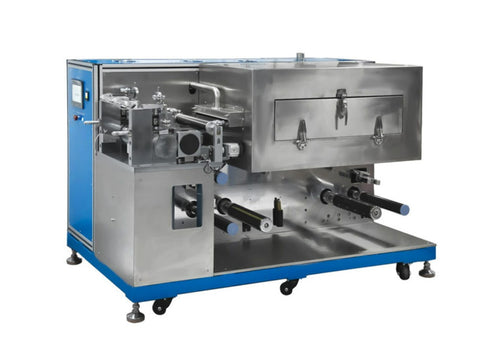

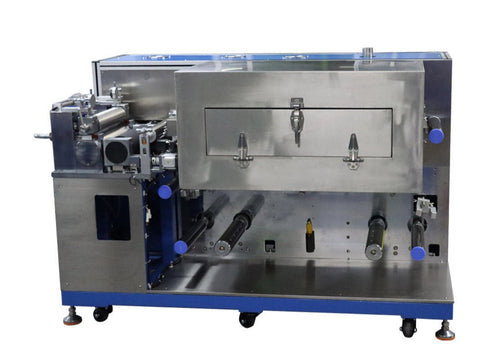

MSE Supplies offers a three-roll transfer coating machine for battery research. It can accommodate the substrate up to 330mm wide with 260mm maximum coating width. We can customize the coater based on your need, such as the coating method, maximum coating width/thickness, coating speed and drying temperature. This coater can be used for lab battery research and pilot line production of lithium iron phosphate, lithium cobalt oxide, lithium manganese oxide, graphite and silicon carbon system battery positive and negative electrode coating process.
- Switch freely to achieve continuous and intermittent coating.
- Scraper measurement, with precision adjustment agencies, access to high-precision coating.
- PLC control with touch screen operation.
Specifications are for reference. Please contact us for customized order.
3PH 380V, 50HZ, 10kW
Aluminum foil: 11~30μm
Copper foil: 9~30μm
|Roll surface width
Aluminum foil: ≤330mm
Copper foil: ≤330mm
|Single-coated dry thickness range
|20~150μm (Depends on slurry viscosity)
|Continuous and interval coating
|Optional (Length, number, temperature can be customized)
|Lithium iron phosphate, lithium cobalt oxide, lithium manganese oxide system battery positive and negative electrode coating process
|~1.2T (Depends on configurations)
