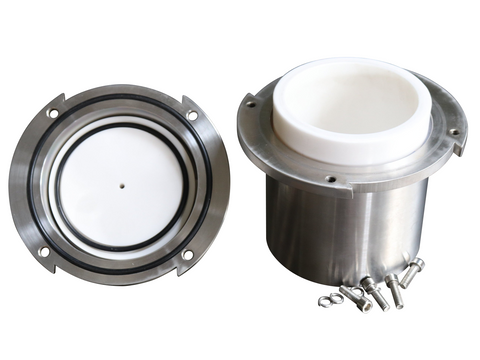

MSE PRO Refurbished 50mL Y-Stabilized Zirconia Milling (YSZ) Vacuum Jar for Planetary Mills (JA0219) with Minor Scratches

MSE PRO™ Refurbished 50mL Y-Stabilized Zirconia Milling (YSZ) Vacuum Jar for Planetary Mills (JA0219) with Minor Scratches

• Vacuum grinding jars are designed for milling and grinding operations either in vacuum or under inert gas. Vacuum grinding jars are used primarily with materials that are at risk of oxidization during the grinding process. The tight seal prevents oxygen, water, and other airborne contaminants from interacting with the materials inside the jar.
• This Zirconia vacuum planetary milling jars has a grade 304 stainless steel jacket.
• Grinding jars are used in the fields of Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection, Paint, Ink, Geology and so on.
• Each jar set includes grinding jar, lid, silicone sealing gasket, and vacuum sleeve.

• Milling media sold separately

• Please note that the 50ml vacuum jar will not fit in the 0.2L mill.

Features of Zirconia Milling Jar

• Material: Y stabilized Zirconium Oxide -ZrO₂
• Max Loading Capacity: 2/3 capacity of the grinding jar
• Density: 6.06 g/cm³
• Color: ivory white
• Shape: cylindrical
• Hardness: >89 HRA
• Abrasion Resistance: very good
• Suitable for: fibrous, abrasive samples
• Max Working Temperature: 320 ^oC
• Attachment: lid and rubber sealing gasket
• Grind Balls: zirconium oxide balls
• Grind Ball Sizes: 1 mm - 50mm beads are available

Did You Know?

A stainless steel sleeve can be added to convert to rotary mill (roller mill) application, please contact us for specific requirement.
