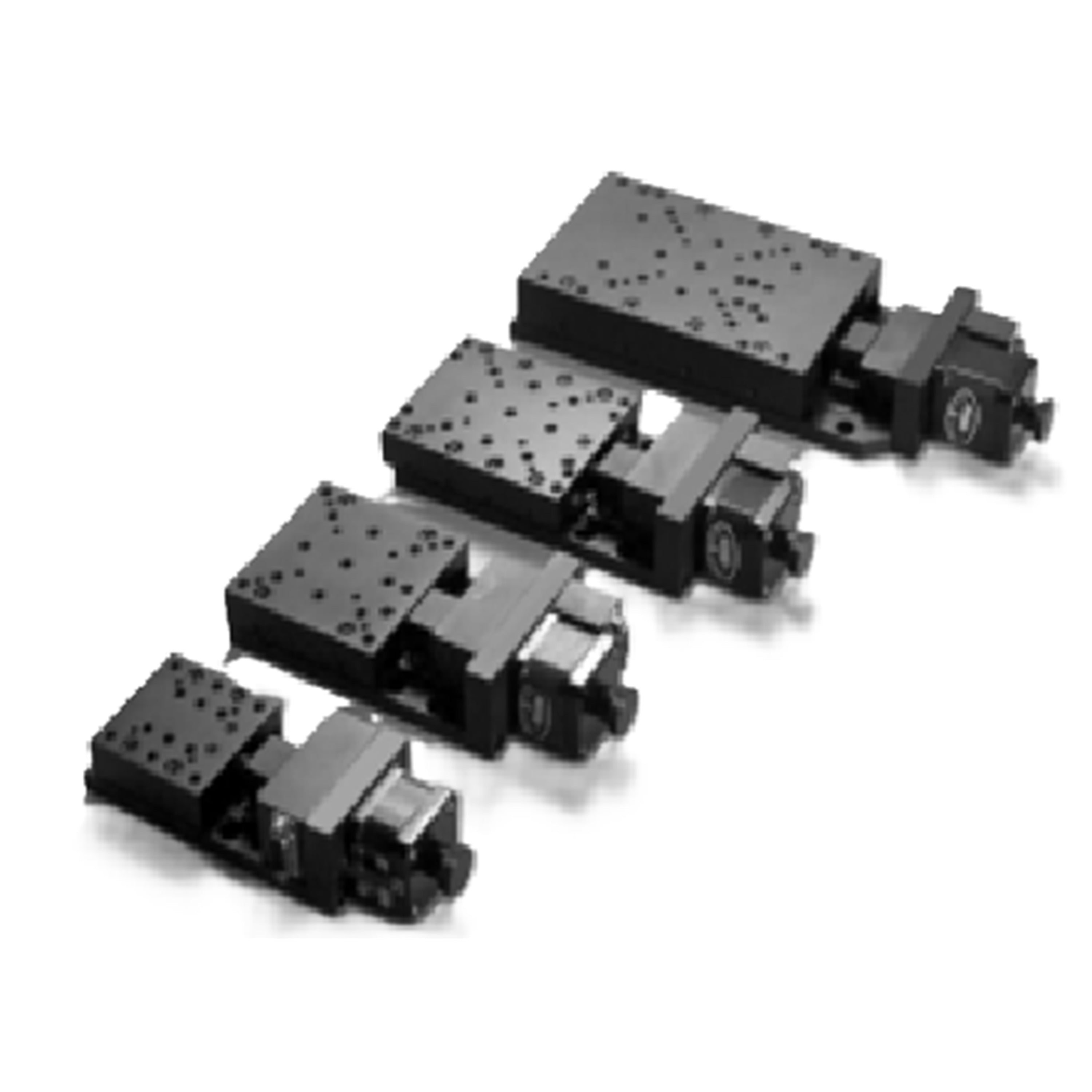

MSE PRO Motorized Liner Translation Stage, Grinding Screw, 30mm, 90 x 90mm
Regular price
$ 825.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO Motorized Liner Translation Stage, Grinding Screw, 30mm, 90 x 90mm
Specification
| Structure Description | Travel Range | 30mm |
| Table Size | 90*90mm | |
| Lead Screw Specification |
Grinding Screw (Lead 1mm) | |
| Guide Rails | Precision Crossed Roller Guide | |
| Stepper Motor | 28 Stepper motor | |
| Main Material | Aluminum Alloy | |
| Surface Treatment |
Anodized Black | |
| Load Capacity | ≤10kg | |
| Weight | 1.25kg | |
| Accuracy Description | Resolution | 20 μ (No Subdivision) 2.5 μ (20 Subdivisions) |
| Maximum Speed | 10mm/sec | |
| Repeat Positioning Accuracy |
25 μ (Grinding Screw) | |
| Backlash | 5 μ | |
| Lost Motion | 5 μ | |
| Accessory Description | Optional limit switches and optical coupler switches | Optional limit switches and optical coupler switches |
| Customizable for high/low temperature or vacuum applications | Customizable for high/low temperature or vacuum applications | |
| Interchangeable servo motor | Interchangeable servo motor | |
| Can be paired with our motion controller series for automated control | Can be paired with our motion controller series for automated control |
MSE Supplies can offer a variety of optomechanical components, with different size, freedom of regulation and optical elements combination. Please contact us for customization or bulk orders.
