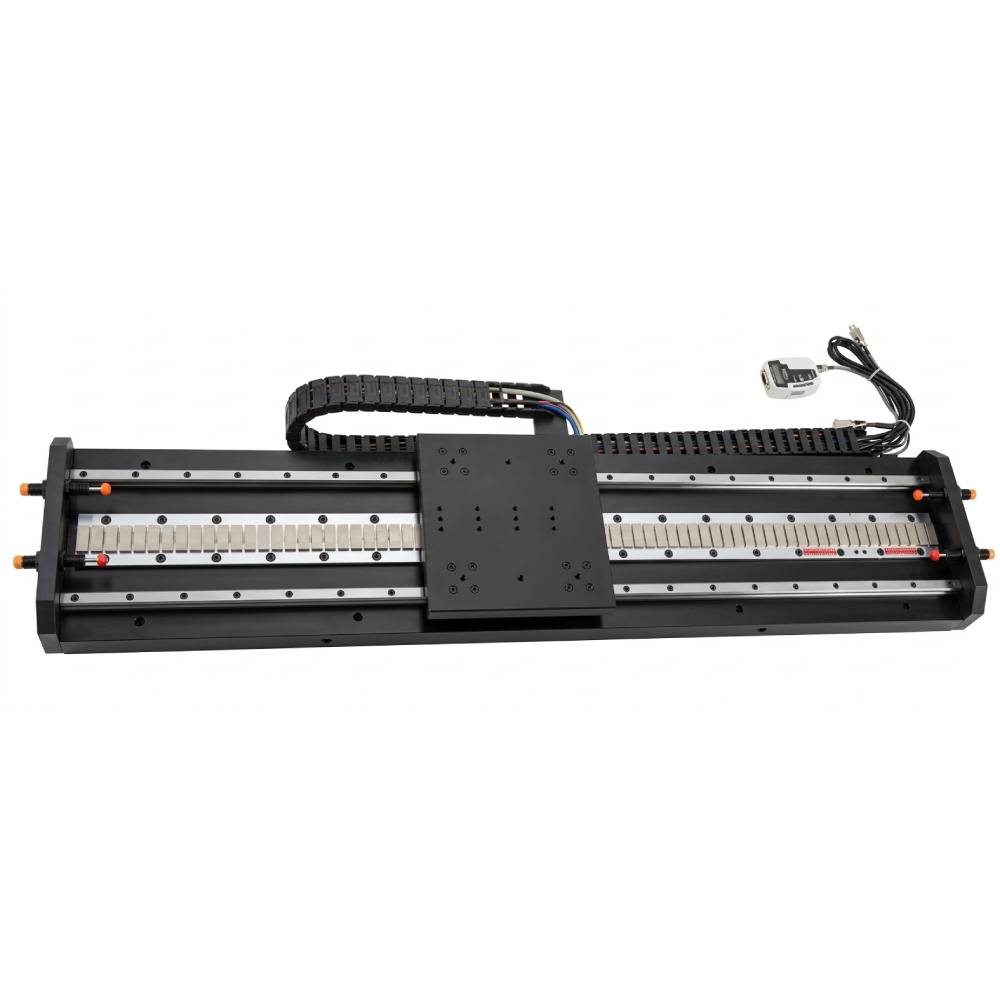

MSE PRO LDT500TA-200mm High Speed Translation Liner Stage
Regular price
$ 11,250.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LDT500TA-200mm High Speed Translation Liner Stage
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070298 |
| Model | LDT500TA-200mm |
| Travel Range | 200mm |
| Table Size | 120*120mm |
| Load Capacity | <10kg |
| Weight | 6kg |
| Resolution | <0.1(Subject to the resolution of the optional grating scale) |
| Maximum Speed | 2000mm/s(The speed can reach up to 10m/s when air-bearing guideways are used instead) |
| Repeat Positioning Accuracy | <1μ |
| Positioning Accuracy | 2 μ |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
