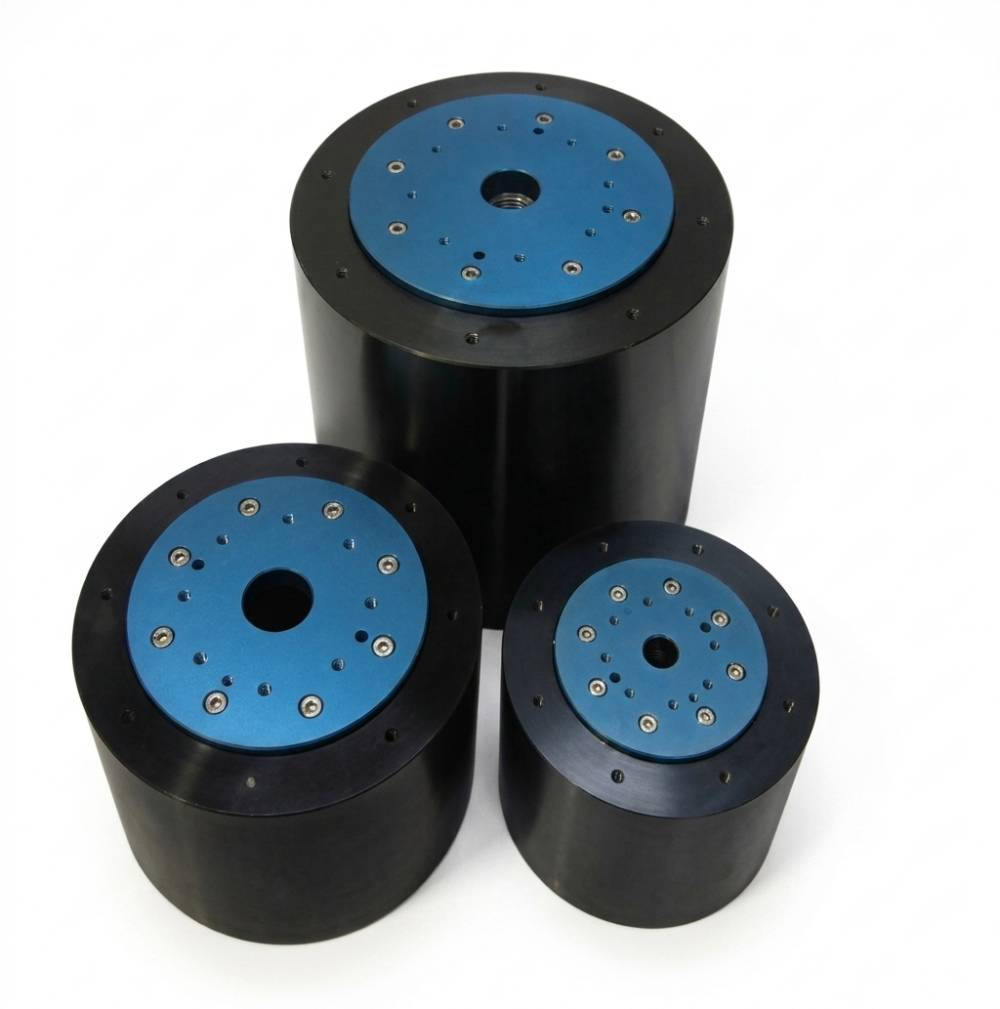

MSE PRO LDT500RA-R400mm High-Speed Linear Motor Rotary Stage
Regular price
$ 35,100.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LDT500RA-R400mm High-Speed Linear Motor Rotary Stage
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070308 |
| Model |
LDT500RA-R400mm
|
| Center aperture | 100mm |
| Table Diameter | 400mm |
| Total Height | 200mm |
| Load Capacity | 80kg |
| Weight | 40kg |
| Resolution |
<0.0001(Subject to the resolution of the optional grating scale)
|
| Maximum Speed |
600 rpm (air bearing)
|
| Repeat Positioning Accuracy | <0.0005° |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
