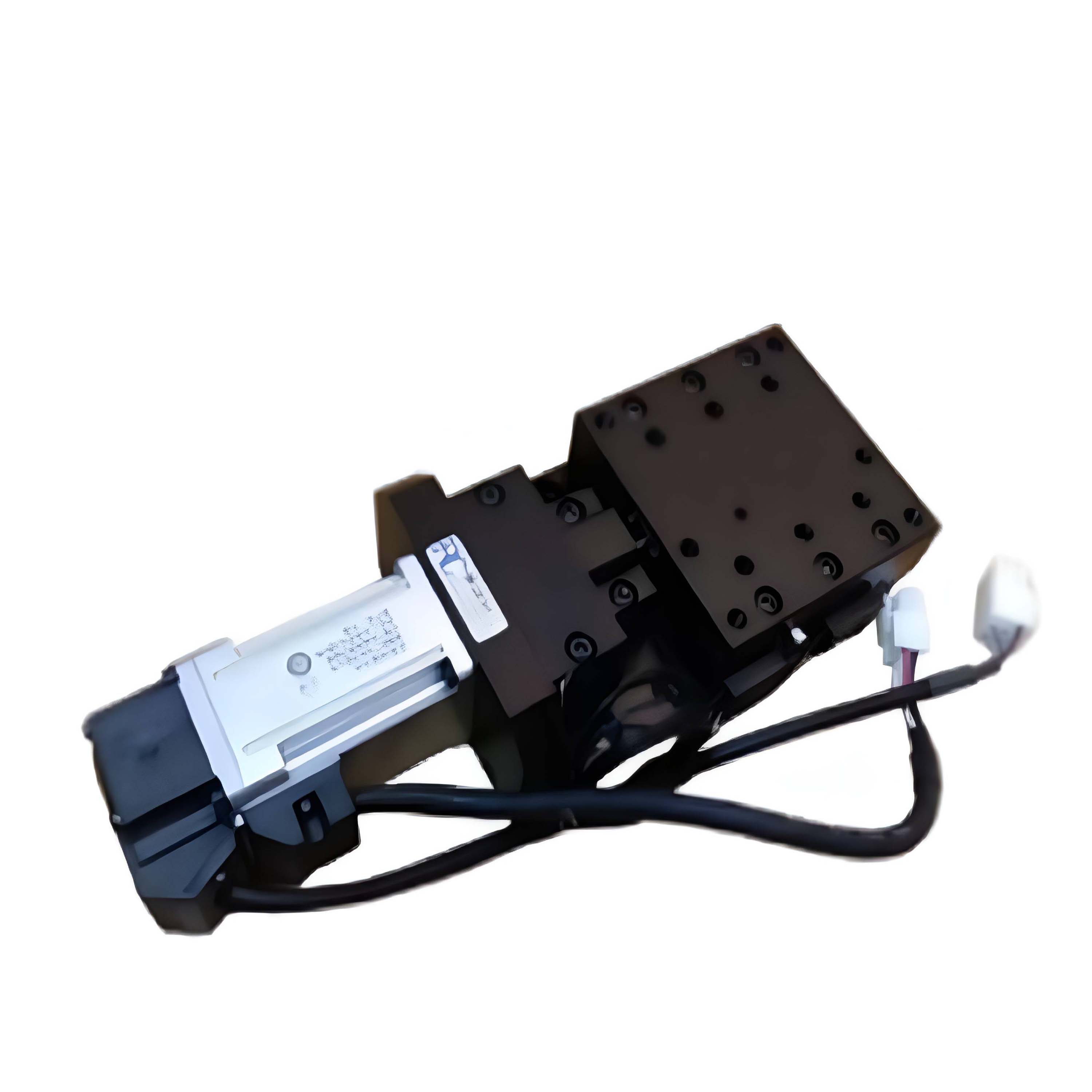

MSE PRO LDT261TA-100 Ball Screw Ball Screw Motorized Liner Translation stage
Regular price
$ 2,925.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LDT261TA-100 Ball Screw Ball Screw Motorized Liner Translation stage
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070295 | |
| Model | LDT261TA-100 | |
|
Structure
Description |
Travel Range | 100mm |
| Table Size | 90*180mm | |
| Lead Screw Specification |
Ball Screw (Lead 1mm)
|
|
| Guide Rails |
Precision Crossed Roller Guide
|
|
| Stepper Moto |
42 Stepper motor
|
|
| Main Material | Aluminum Alloy | |
| Surface Treatment | Anodized Black |
|
| Load Capacity | <15kg | |
| Weight | 2kg | |
|
Accuracy
Description |
Resolution |
5 H (No Subdivision)
0.25 H (20 Subdivisions) |
| Maximum Speed | 10mm/sec | |
| Repeat Positioning Accuracy |
5 μ (Closed-loop control 0.5μ)
|
|
| Backlash | 2μ | |
| Lost Motion | 2μ | |
|
Accessory
Description |
Optional limit switches and optical coupler switches
|
|
|
Customizable for high/low temperature or vacuum applications
|
||
|
Interchangeable servo motor
|
||
|
Can be paired with our motion controller series for automated control
|
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
