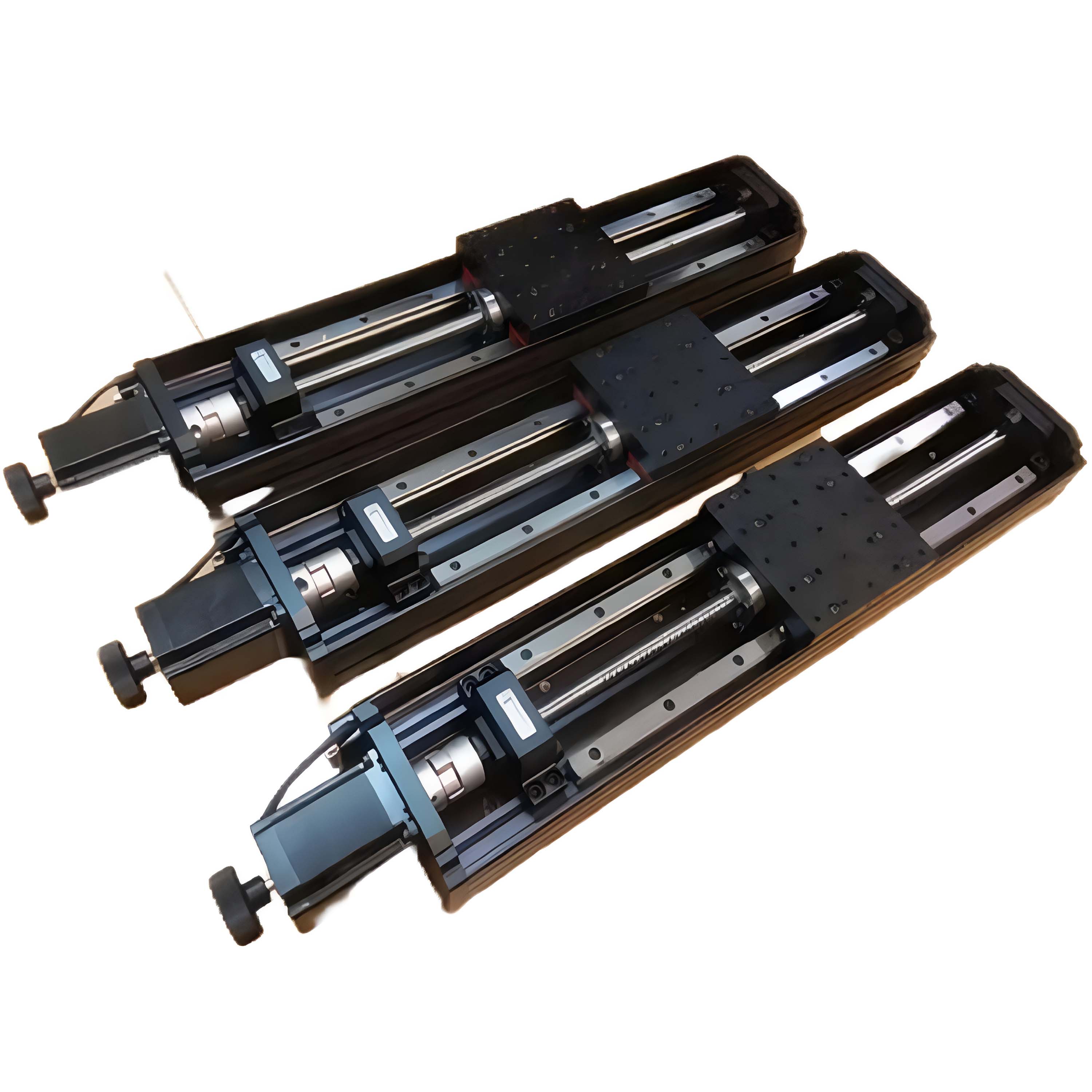

MSE PRO LDT230TAM-100 Motorized Liner Translation stage
Regular price
$ 1,525.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LDT230TAM-100 Motorized Liner Translation stage
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070281 | |
| Model | LDT230TAM-100 | |
|
Structure
Description |
Travel Range | 100mm |
| Table Size | 120*120mm | |
| Lead Screw Specification |
Precision Ball Screw (Lead 4mm) | |
| Guide Rails | Precision Linear Slider Guide Rails | |
| Stepper Moto | 42/57/86 | |
| Main Material | Aluminum Alloy | |
| Surface Treatment |
Anodized Black | |
| Load Capacity | 20kg | |
| Weight | 6kg | |
|
Accuracy
Description |
Resolution | 20μ (No Subdivision) 1 μ (20 Subdivisions) |
| Maximum Speed | 40mm/sec | |
| Repeat Positioning Accuracy |
20 μ/10 (Closed-loop motor)/3 (grating closed-loop) | |
| Straightness | 20μ | |
| Pitch | 25" | |
| Yaw | 20" | |
| Backlash | 2μ | |
| Lost Motion | 3μ | |
|
Accessory Description
|
Optional Electric Brake Function | |
| Optional Grating Scale | ||
| Optional Servo Motor | ||
| Optional Dust Cover |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
