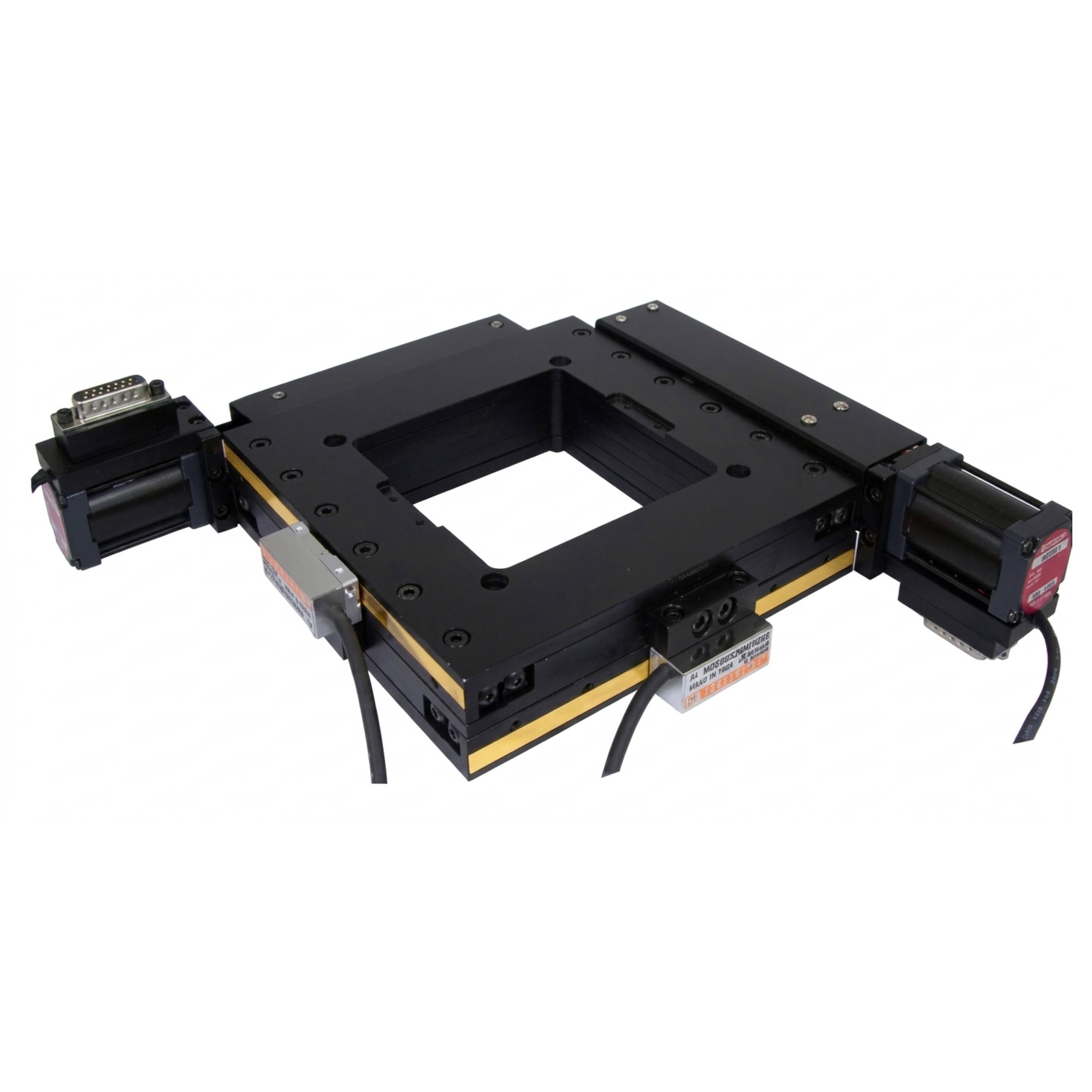

MSE PRO LDT01WA Integrated 2D Motorized Translation Stage, 150mm Travel Range, Ball Screw
Regular price
$ 7,383.95
Couldn't load pickup availability
Still have questions? Ask our experts!
MSE PRO LDT01WA Integrated 2D Motorized Translation Stage, 150mm Travel Range, Ball Screw
MSE offers a wide range of Optical Positioning & Optomechanical Components for R&D applications. Please visit our collection page to explore available products.
Specification
| SKU | OP0070339 | |
| Model |
LDT01WA-150mm-Ball Screw
|
|
|
Structure
Description |
Travel Range | 150mm |
| Table Size | 300*300mm | |
| Lead Screw Specification |
High-precision Ball Screw Lead 4mm
|
|
| Main Material | Aluminum Alloy | |
| Surface Treatment | Anodized Black | |
| Load Capacity | 50kg | |
| Weight | 12.7kg | |
|
Accuracy
Discription |
Resolution | 1μ |
| Repeat Positioning Accuracy |
10 μ/1 μ (Grating)
|
|
| Maximum Speed | 10mm/sec |
Note
- All specifications are typical values and may vary slightly between units
- Compatible with MSE PRO stage controllers, mounting bases, and optical components.
